LPJ-110SPI
Bussmann LPJ-110SPI Time Delay Fuse
Part Number # LPJ-110SPI
SKU # 2316378
$562.64 / Each
Typical price:$958.63 / Each
Bussmann LPJ-110SPI Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | LPJ-110SPI |
| SKU #: | 2316378 |
| Body Type: | Cartridge |
| Class: | J |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 300/100 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 10 s at 500% |
| Series: | LPJ |
| Terminal Type: | Bolted Blade End |
| Type: | Current Limiting Time Delay |
| Mounting type: | Holder |
| UNSPSC: | 39121626 |
| UPC: | 00051712627696 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$562.64 / Each
Typical price:$958.63 / Each
Quantity:
- Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPJ, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Non-Rejection, 110 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, Class: J, 10 s at 500% Response, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 1.63 in Dia x 5.75 in L Body Size
LPJ-110SPI Application
Industrial Facilities and Factories, Safety and Security Systems, Branch Circuit Breaker, Panelboard Mains, Machinery Disconnects and Power Panelboard ApplicationsLPJ-110SPI Item Features
- Separate overload and short circuit elements provide time delay for sizing of high inrush loads linked with class J current limitation
- Selective coordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
- Space saving package for equipment downsizing
- Industrys only UL listed and CSA certified fuse with a 300 kA interrupt rating that allows for simple, worry-free installation in virtually any application
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Long time delay minimizes needless fuse openings due to temporary overloads and transient surges
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Dual element fuses have lower resistance than ordinary fuses so they run cooler
- They can often be sized for back up protection against motor burnout from overload or 1 ph if other overload protective devices fail
- https://www.youtube.com/watch?v=YMvqUyoETXk
LPJ-110SPI Standards
CE Certified|CSA C22.2 File No.53787/248.8|RoHS Compliant|UL File No.E4273/E56412 Guide JDDZ/JFHRSKU #2316378Part Number #LPJ-110SPIUNSPSC39121626UPC00051712627696

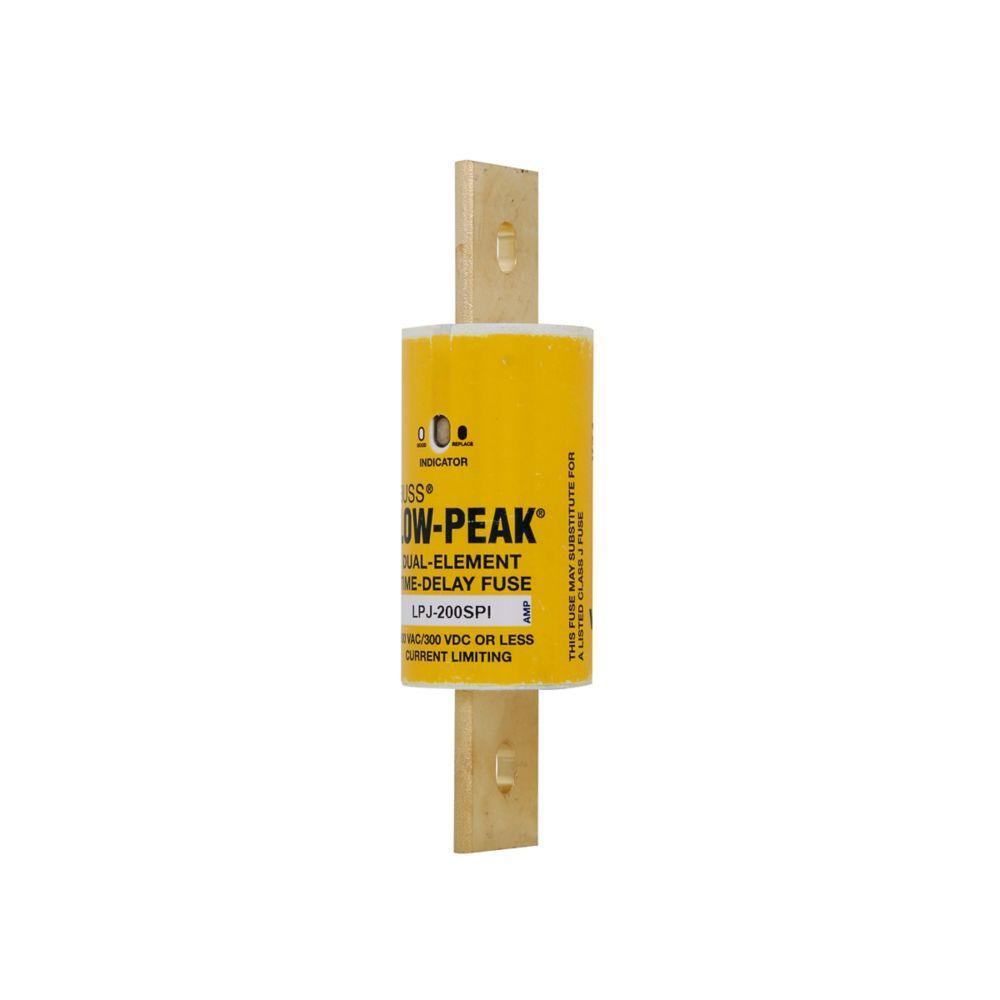

Image provided may only be a representation of final product and may include optional equipment
