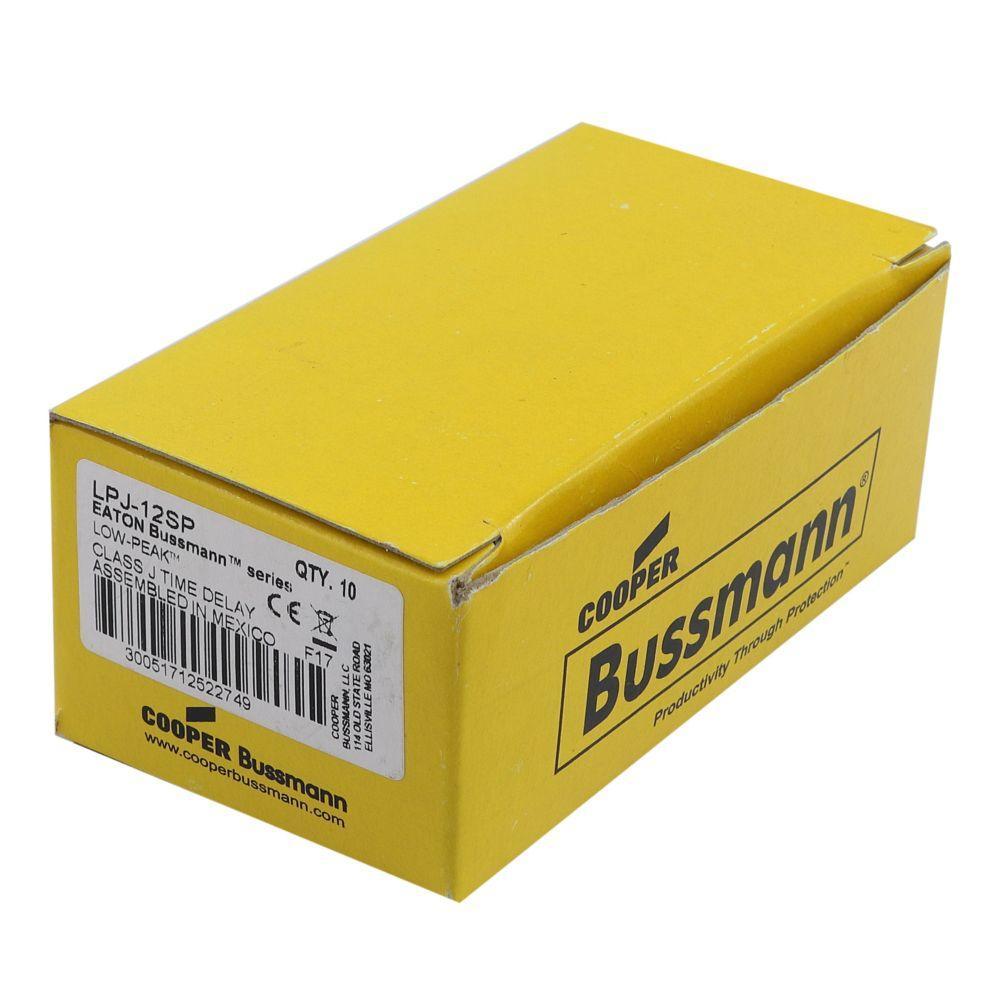

Bussmann LPJ-12SP Time Delay Fuse
Part Number # LPJ-12SP
SKU # 8156
$625.00 / 10Each
Only 5 left in stock order soon
Ships in 1 Business Day
Bussmann LPJ-12SP Key Features
Brand: Bussmann
Part Number # LPJ-12SP
SKU #8156
Amperage Rating: 12, 12 A
Body Type: Cylindrical
Class: J
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 100/300 kA, 300/100
Rejection/Non-Rejection: Non-Rejection
Response Time: 10, 10 s at 500%
Series: LPJ
Terminal Type: Ferrule
Type: Current Limiting
Voltage Rating: 600 VAC/300 VDC
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121626
UPC: 00051712522748
$625.00 / 10Each
Bussmann LPJ-12SP Time Delay Fuse
Brand: Bussmann
Part Number: LPJ-12SP
Bussmann Low-Peak Time Delay Fuse, Current Limiting, Series: LPJ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 12 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: J, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 0.81 in Dia x 2.25 in L Body Size
Additional Description: BUSS-LPJ-12SP LOW-PEAK CLASS J T/D
Catalog Description: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 12 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
LPJ-12SP Application
Branch Circuit Breaker Panelboard Mains, Industrial Control, Machinery Disconnects and Power Panelboard Applications, Safety and Security SystemsLPJ-12SP Item Features
- Separate overload and short circuit elements provide time delay for sizing of high inrush loads linked with class J current limitation
- Selective co-ordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Proper sizing can provide "no damage" type 2 motor starter protection for NEMA and IEC motor controllers
- Space saving package for equipment down sizing
- Industrys only UL listed and CSA certified fuse with a 300 kea interrupt rating that allows for simple, worry free installation in virtually any application
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Long time delay minimizes needless fuse openings due to temporary overloads and transient surges
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Dual element fuses have lower resistance than ordinary fuses, hence they run cooler
- They can often be sized for back up protection against motor burnout from overload or single phasing if other overload protective devices fail
- https://www.youtube.com/watch?v=YMvqUyoETXk
LPJ-12SP Standards
CE Certified|CSA C22.2 No. 248.8/1422-02/File No. 53787|RoHS Compliant|UL File No. E4273|UL File No. E56412|UL Guide JDDZ/JFHRSKU #8156Part Number #LPJ-12SPUNSPSC39121626UPC00051712522748
