- Separate overload and short circuit elements provide time delay for sizing of high inrush loads linked with class J current limitation
- Selective coordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
- Space saving package for equipment downsizing
- Industrys only UL listed and CSA certified fuse with a 300 kA interrupt rating that allows for simple, worry-free installation in virtually any application
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Long time delay minimizes needless fuse openings due to temporary overloads and transient surges
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Dual element fuses have lower resistance than ordinary fuses so they run cooler
- They can often be sized for back up protection against motor burnout from overload or 1 ph if other overload protective devices fail
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 500, 500 A
Body Type: Cartridge
Class: J
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 300/100, 300/100 kAIC
Rejection/Non-Rejection: Non-Rejection
Response Time: 10, 10 s at 500%
Series: LPJ
Terminal Type: Bolted Blade End, Knife Blade
Type: Current Limiting, Current Limiting Time Delay
Voltage Rating: 600 VAC/300 VDC
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121626
UPC: 00051712522861

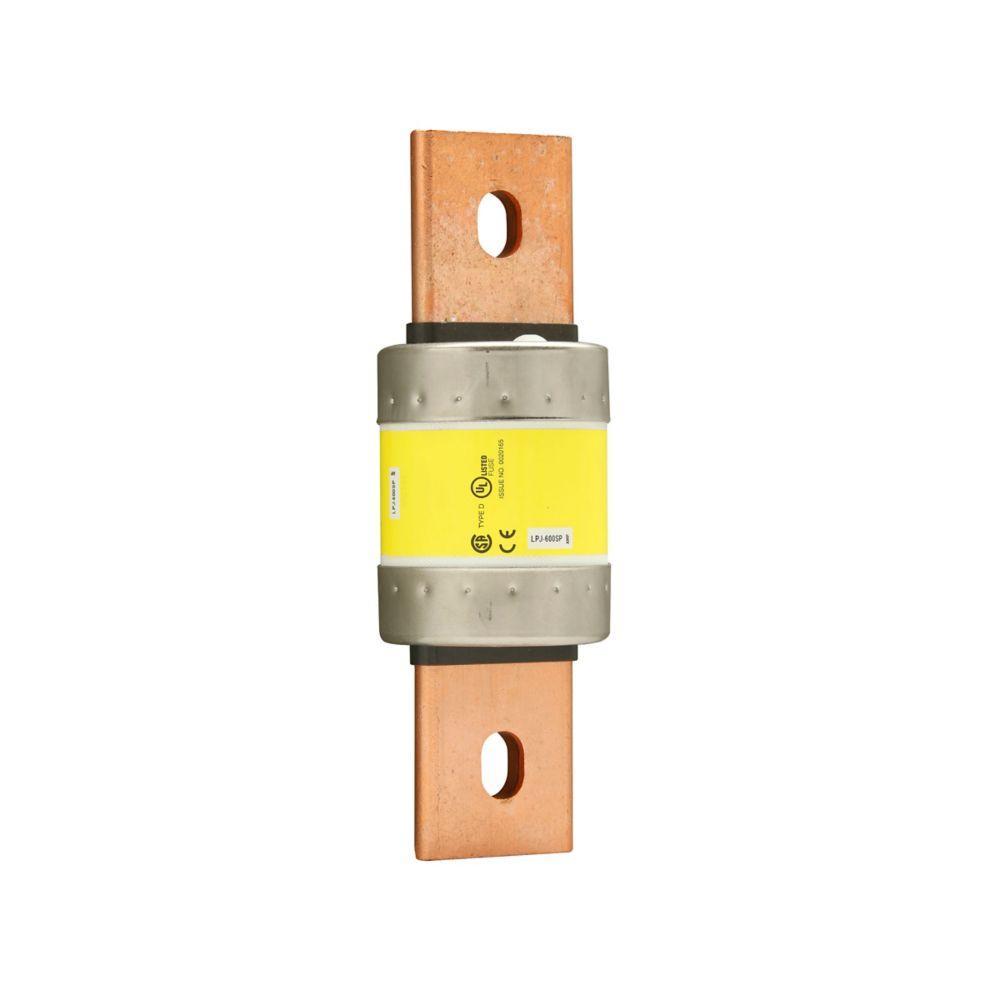

Bussmann LPJ-500SP Time Delay Fuse
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPJ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 500 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: J, 10 s at 500% Response, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 2.6 in Dia x 8 in L Body Size
Additional Description: BUSS-LPJ-500SP LOW-PEAK CLASS J T/D
Catalog Description: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 500 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Item FeaturesIndustrial Facilities and Factories, Safety and Security Systems, Branch Circuit Breaker, Panelboard Mains, Machinery Disconnects and Power Panelboard Applications
Item Features
Item FeaturesCE Certified|CSA C22.2 File No.53787/248.8|RoHS Compliant|UL File No.E4273/E56412 Guide JDDZ/JFHR
