LPJ-80SP

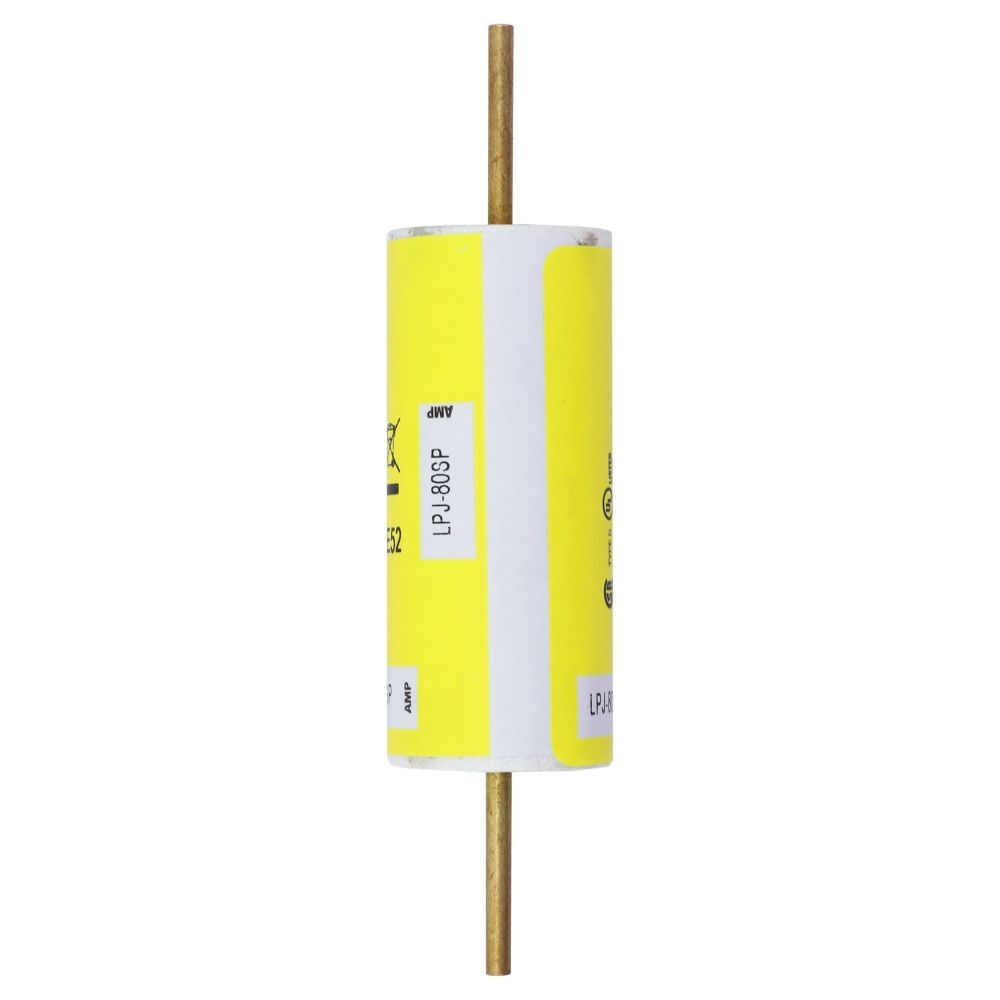

Bussmann LPJ-80SP Time Delay Fuse
Part Number # LPJ-80SP
SKU # 8182
$208.30 / Each
Typical price:$306.20 / Each
Bussmann LPJ-80SP Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | LPJ-80SP |
| SKU #: | 8182 |
| Amperage Rating: | 80, 80 A |
| Body Type: | Cartridge |
| Class: | J |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 300/100, 300/100 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 10, 10 s |
| Series: | LPJ |
| Terminal Type: | Knife Blade |
| Type: | Current Limiting |
| Country of origin: | MX |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121603 |
| UPC: | 00051712523387 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$208.30 / Each
Typical price:$306.20 / Each
Quantity:
- Bussmann Low-Peak Time Delay Fuse, Current Limiting, Series: LPJ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 80 A, 600 V AC/300 V DC, 300/100 kA Interrupt, Class: J, 10 s Response, Knife Blade Terminal, Holder Mount, Cartridge Body, Dual Element, Melamine, 1.13 in Dia x 4.63 in L Body Size
LPJ-80SP Application
Branch Circuit Breaker Panelboard Mains, Industrial Control, Machinery Disconnects and Power Panelboard ApplicationsLPJ-80SP Item Features
- Separate overload and short circuit elements provide time delay for sizing of high inrush loads linked with class J current limitation
- Selective coordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Proper sizing can provide "No Damage" type 2 coordinated protection for NEMA and IEC motor controllers
- Space saving package for equipment down sizing
- Industrys only UL listed and CSA Certified fuse with a 300 kA interrupt rating that allows for simple, worry free installation in virtually any application
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective coordination easy
- Long time delay minimizes needless fuse openings due to temporary overloads and transient surges
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Dual element fuses have lower resistance than ordinary fuses, hence they run cooler
- They can often be sized for back up protection against motor burnout from overload or single phasing if other overload protective devices fail
- https://www.youtube.com/watch?v=YMvqUyoETXk
LPJ-80SP Standards
CE Certified|CSA C22.2 No. 248.8, Class 1422-02 File No. 53787|UL Guide No. JDDZ|UL File No. E4273|Guide No. JFHR|UL File No. E56412SKU #8182Part Number #LPJ-80SPUNSPSC39121603UPC00051712523387
