LPJ-8SP

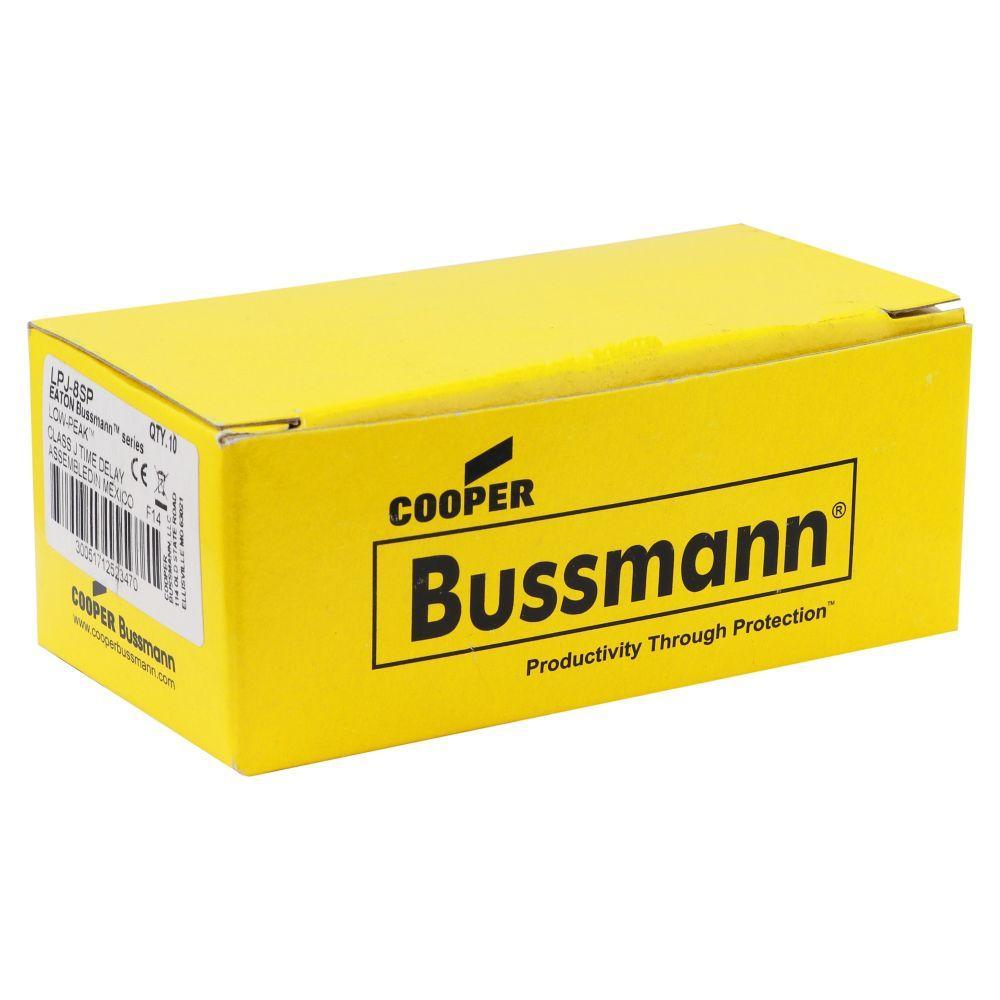

Bussmann LPJ-8SP Time Delay Fuse
Part Number # LPJ-8SP
SKU # 8183
Bussmann LPJ-8SP Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | LPJ-8SP |
| SKU #: | 8183 |
| Amperage Rating: | 8, 8 A |
| Body Type: | Cylindrical |
| Class: | J |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100/300 kA, 300/100 |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 10, 10 s at 500% |
| Series: | LPJ |
| Terminal Type: | Ferrule |
| Type: | Current Limiting |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121626 |
| UPC: | 00051712523479 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann LPJ-8SP Time Delay Fuse
Brand: Bussmann
Part Number: LPJ-8SP
Bussmann Low-Peak Time Delay Fuse, Current Limiting, Series: LPJ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 8 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: J, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 0.81 in Dia x 2.25 in L Body Size
Additional Description: BUSS-LPJ-8SP LOW-PEAK CLASS J T/D T/D
Catalog Description: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 8 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
LPJ-8SP Application
Branch Circuit Breaker Panelboard Mains, Industrial Control, Machinery Disconnects and Power Panelboard Applications, Safety and Security SystemsLPJ-8SP Item Features
- Separate overload and short circuit elements provide time delay for sizing of high inrush loads linked with class J current limitation
- Selective co-ordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Proper sizing can provide "no damage" type 2 motor starter protection for NEMA and IEC motor controllers
- Space saving package for equipment down sizing
- Industrys only UL listed and CSA certified fuse with a 300 kea interrupt rating that allows for simple, worry free installation in virtually any application
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Long time delay minimizes needless fuse openings due to temporary overloads and transient surges
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Dual element fuses have lower resistance than ordinary fuses, hence they run cooler
- They can often be sized for back up protection against motor burnout from overload or single phasing if other overload protective devices fail
- https://www.youtube.com/watch?v=YMvqUyoETXk
LPJ-8SP Standards
CE Certified|CSA C22.2 No. 248.8/1422-02/File No. 53787|RoHS Compliant|UL File No. E4273|UL File No. E56412|UL Guide JDDZ/JFHRSKU #8183Part Number #LPJ-8SPUNSPSC39121626UPC00051712523479
