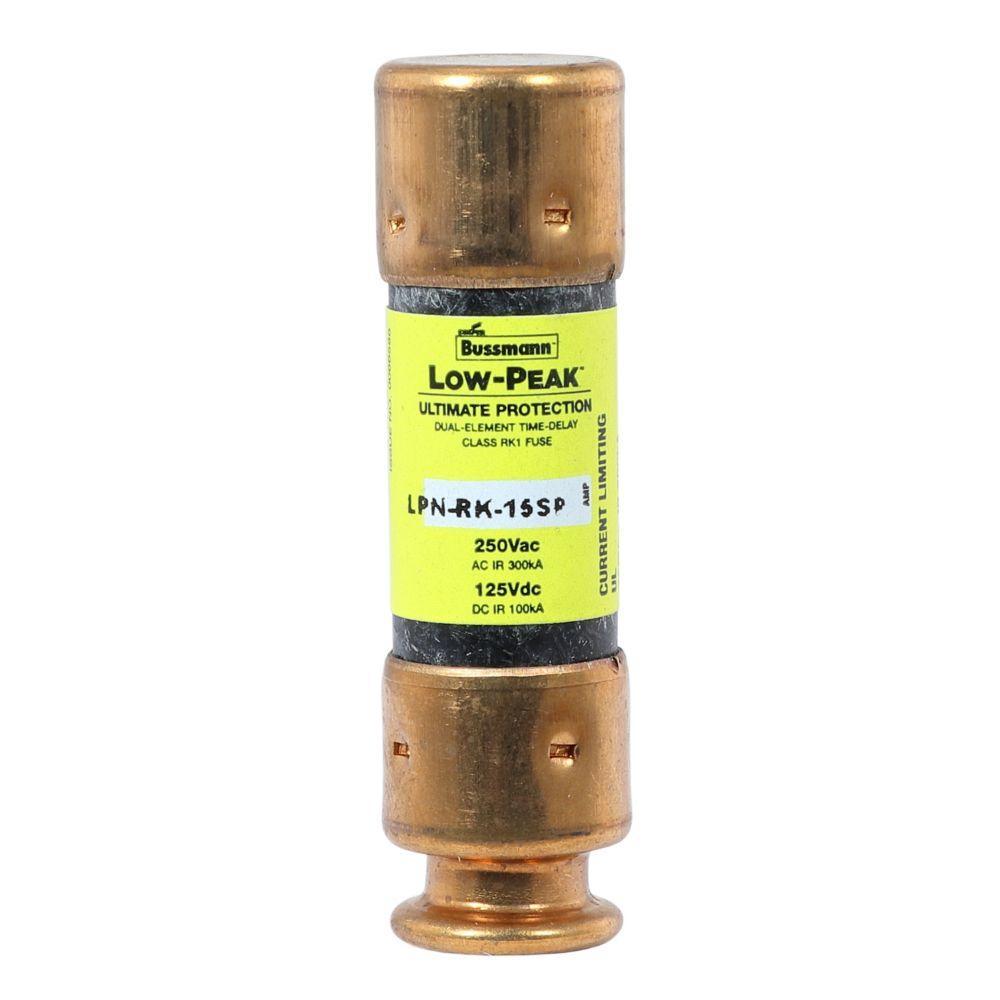

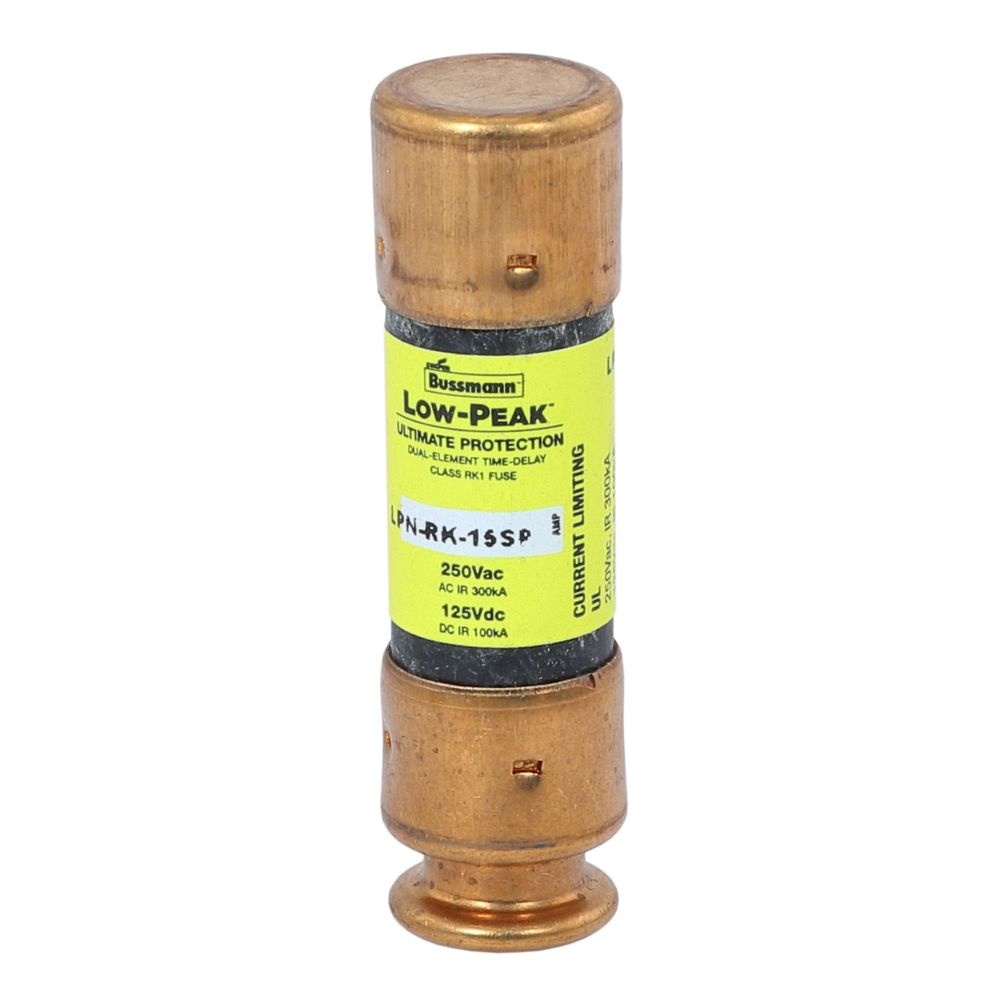

Bussmann LPN-RK-15SP Time Delay Fuse
Part Number # LPN-RK-15SP
SKU # 2252011
$214.30 / 10Each
Bussmann LPN-RK-15SP Key Features
Brand: Bussmann
Part Number # LPN-RK-15SP
SKU #2252011
Amperage Rating: 15, 15 A
Body Type: Cylindrical
Class: RK1
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 300/100, 300/100 kAIC
Rejection/Non-Rejection: Rejection
Response Time: 8, 8 s at 500%
Series: LPN-RK
Terminal Type: Ferrule, Ferrule End
Type: Current Limiting, Current Limiting Time Delay
Voltage Rating: 250 VAC/125 VDC
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712538329
$214.30 / 10Each
Bussmann LPN-RK-15SP Time Delay Fuse
Brand: Bussmann
Part Number: LPN-RK-15SP
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPN-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 15 A, 250 VAC/125 VDC, 300/100 kAIC Interrupt, Class: RK1, 8 s at 500% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 0.56 in Dia x 2 in L Body Size
Additional Description: BUSS-LPN-RK-15SP LOW PEAK DUAL ELEMENT
Catalog Description: Eaton Bussmann Series Class RK1 fuse, LPN-RK, time-delay, dual-element, current limiting fuse, 15 A, non-indicating fuse, interrupting rating of 300 kA at 250 Vac and 100 kA at 125 Vdc
LPN-RK-15SP Application
Industrial Facilities and Factories, Safety and Security Systems, Large Distribution Switchboards, Power Panelboards, Motor Control Centers and Machinery Disconnect SwitchesLPN-RK-15SP Item Features
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Easy selective coordination with all Low-Peak fuses using simple 2:1 ampacity ratio
- Current limiting for maximum short circuit protection
- No damage Type "2" protection for IEC and NEMA motor starters when properly sized
- High inrush current motor protection
- Time delay permits 130% FLA sizing for back-up motor protection
- Provides protection against 1 ph motor damage
- Low wattage loss power consumption
- Electrically isolated end caps for additional safety
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- https://www.youtube.com/watch?v=YMvqUyoETXk
LPN-RK-15SP Standards
CE Certified|CSA C22.2|UL ListedSKU #2252011Part Number #LPN-RK-15SPUNSPSC39121606UPC00051712538329
