Bussmann LPN-RK-300SP Time Delay Fuse
Part Number # LPN-RK-300SP
SKU # 2214936
$482.81 / Each
Typical price:$822.62 / Each
Bussmann LPN-RK-300SP Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | LPN-RK-300SP |
| SKU #: | 2214936 |
| Amperage Rating: | 300 A |
| Body Type: | Cartridge |
| Class: | RK1 |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 300/100 kAIC |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 10 s at 500% |
| Series: | LPN-RK |
| Terminal Type: | Blade End |
| Type: | Current Limiting Time Delay |
| Country of origin: | MX |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712538534 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$482.81 / Each
Typical price:$822.62 / Each
Quantity:
- Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPN-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 300 A, 250 V AC/DC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 2.36 in Dia x 8.63 in L Body Size
LPN-RK-300SP Application
Industrial Facilities and Factories, Safety and Security Systems, Large Distribution Switchboards, Power Panelboards, Motor Control Centers and Machinery Disconnect SwitchesLPN-RK-300SP Item Features
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Insulated end caps reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Time delay permits 130% FLA sizing for back-up motor protection
- Inventory consolidation of class RK1/RK5/H fuses for reduced SKU investment and minimizing potential for misapplying fuse
- Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current-limitation and selective co-ordination ratio of 2:1 (within Low-Peak fuse family) helps prevent widespread blackouts
- Protects against 1 ph motor damage
- Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
- Electrically isolated end caps for additional safety
- https://www.youtube.com/watch?v=YMvqUyoETXk
LPN-RK-300SP Standards
CE Certified|CSA C22.2 File No.53787/248.12|RoHS Compliant|UL File No.E4273 Guide JDDZSKU #2214936Part Number #LPN-RK-300SPUNSPSC39121606UPC00051712538534

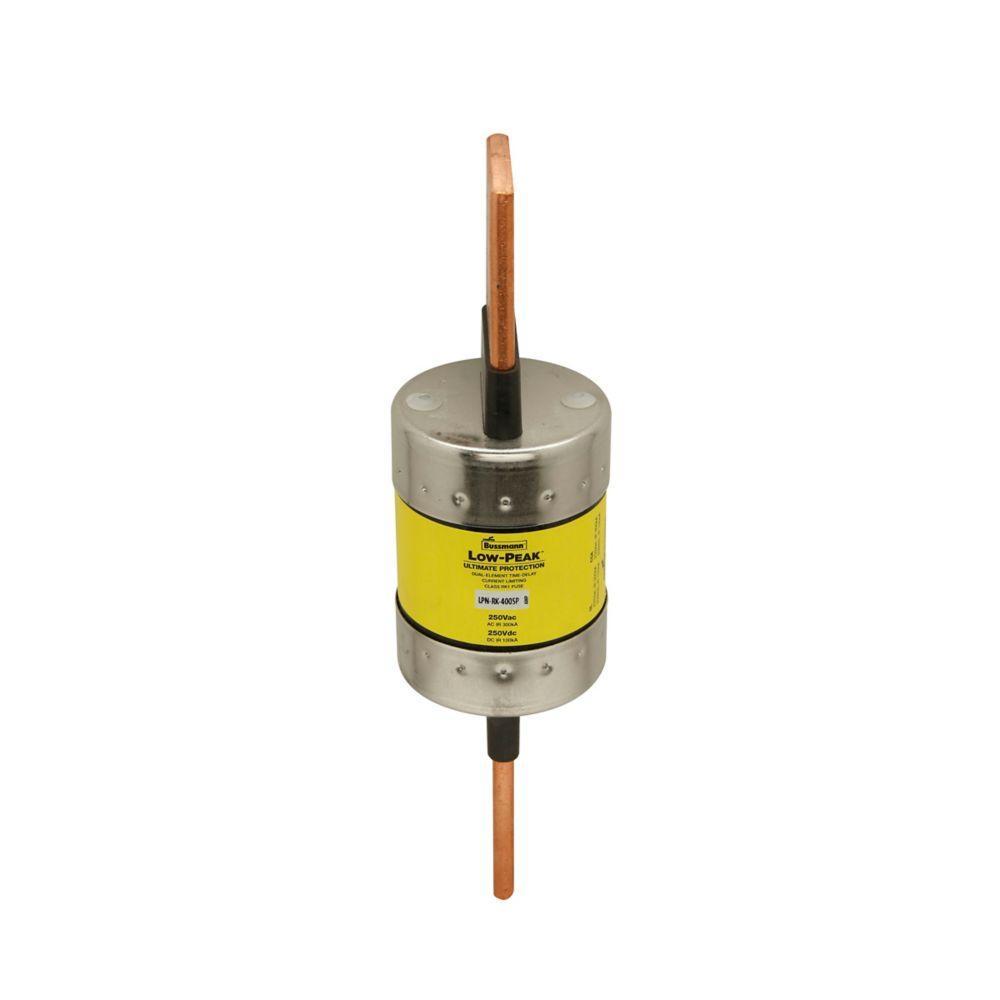

Image provided may only be a representation of final product and may include optional equipment
