$604.39/EA
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Insulated end caps reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Time delay permits 130% FLA sizing for back-up motor protection
- Inventory consolidation of class RK1/RK5/H fuses for reduced SKU investment and minimizing potential for misapplying fuse
- Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current-limitation and selective co-ordination ratio of 2:1 (within Low-Peak fuse family) helps prevent widespread blackouts
- Protects against 1 ph motor damage
- Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
- Electrically isolated end caps for additional safety
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 600, 600 A
Body Type: Cartridge
Class: RK1
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 300/100, 300/100 kAIC
Rejection/Non-Rejection: Rejection
Response Time: 10, 10 s at 500%
Series: LPN-RK
Terminal Type: Blade End, Knife Blade
Type: Current Limiting, Current Limiting Time Delay
Voltage Rating: 250, 250 VAC/VDC
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712538589

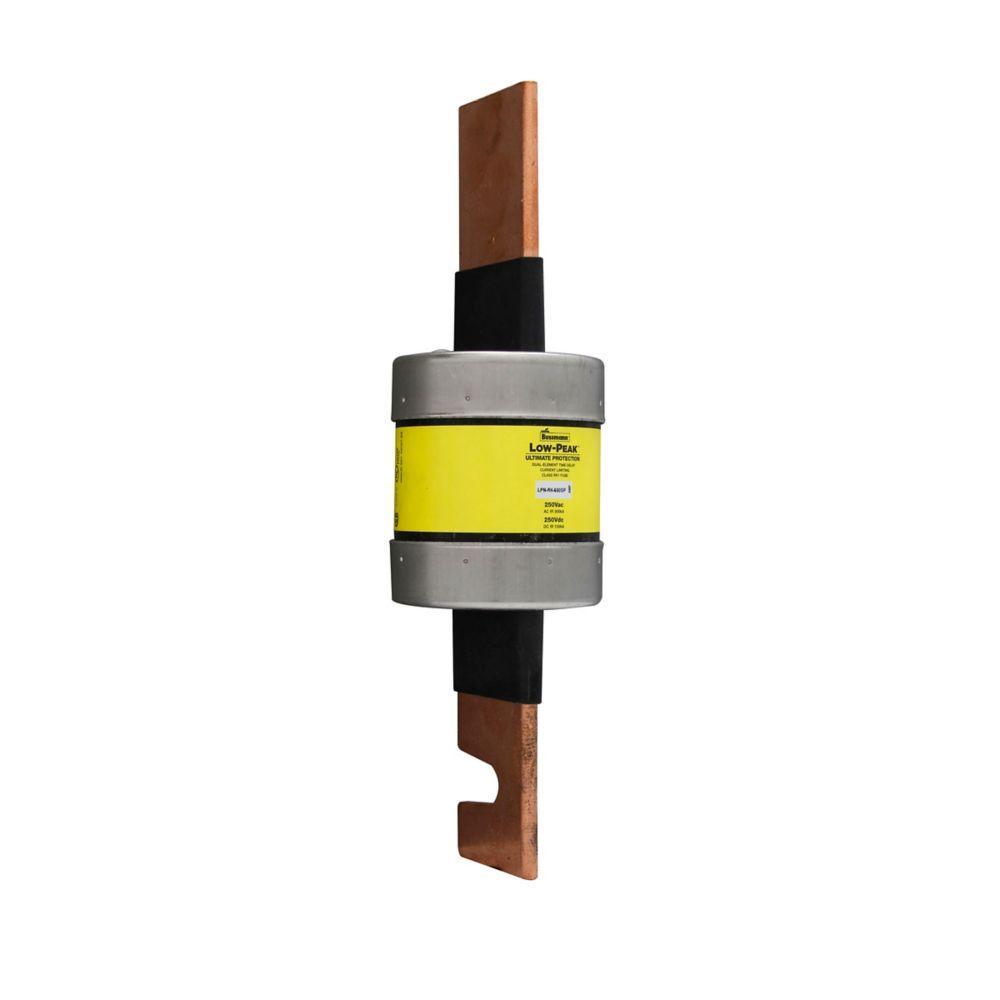

Bussmann LPN-RK-600SP Time Delay Fuse
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPN-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 600 A, 250 VAC/VDC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 2.88 in Dia x 10.38 in L Body Size
Additional Description: BUSS-LPN-RK-600SP LOW PEAK DUAL ELEMENT
Catalog Description: Eaton Bussmann Series Class RK1 fuse, LPN-RK, time-delay, dual-element, current limiting fuse, 600 A, non-indicating fuse, interrupting rating of 300 kA at 250 Vac and 100 kA at 125 Vdc
Item FeaturesIndustrial Facilities and Factories, Safety and Security Systems, Large Distribution Switchboards, Power Panelboards, Motor Control Centers and Machinery Disconnect Switches
Item Features
Item FeaturesCE Certified|CSA C22.2 File No.53787/248.12|RoHS Compliant|UL File No.E4273 Guide JDDZ
