Part Number # LPN-RK-80SP
SKU # 2282040

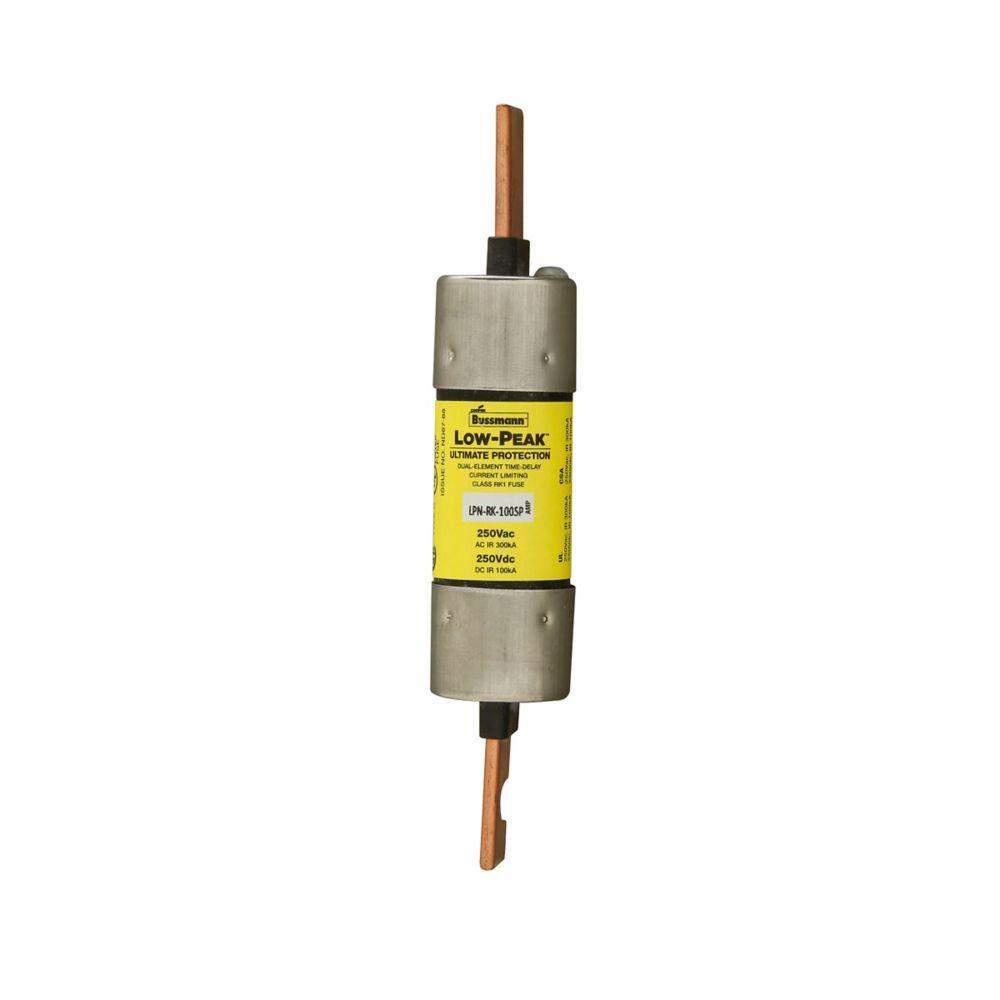

Image provided may only be a representation of
final product and may include optional equipment
LPN-RK-80SP
Bussmann LPN-RK-80SP Time Delay Fuse
Part Number # LPN-RK-80SP
SKU # 2282040
Bussmann LPN-RK-80SP Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | LPN-RK-80SP |
| SKU #: | 2282040 |
| Amperage Rating: | 80, 80 A |
| Body Type: | Cartridge |
| Class: | RK1 |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100/300, 100/300 kA, 300/100 |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 10, 10 s at 500% |
| Series: | LPN-RK |
| Terminal Type: | Blade, Knife Blade |
| Type: | Current Limiting |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712538435 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann LPN-RK-80SP Time Delay Fuse
Brand: Bussmann
Part Number: LPN-RK-80SP
Bussmann Low-Peak Time Delay Fuse, Current Limiting, Series: LPN-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 80 A, 250 VAC/VDC, 100/300 kA Interrupt, Class: RK1, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 1.11 in Dia x 5.88 in L Body Size
Additional Description: BUSS-LPN-RK-80SP LOW PEAK DUAL ELEMENT
Catalog Description: Eaton Bussmann Series Class RK1 fuse, LPN-RK, time-delay, dual-element, current limiting fuse, 80 A, non-indicating fuse, interrupting rating of 300 kA at 250 Vac and 100 kA at 125 Vdc
LPN-RK-80SP Application
Large Distribution Switchboards, Power Panelboards, Motor Control Centers and Machinery Disconnect Switches, Safety and Security SystemsLPN-RK-80SP Item Features
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Insulated end caps reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Time delay that permits 130% FLA sizing for back up motor protection
- Inventory consolidation of class RK1, RK5 and H fuses for reduced SKU investment and minimizing potential for misapplying fuse
- Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current limitation and selective co-ordination ratio of 2:1 (within Low-Peak fuse family) prevents widespread blackouts
- Protects against 1 ph motor damage
- Proper sizing can provide "no damage" type 2 motor starter protection for NEMA and IEC motor controllers
- https://www.youtube.com/watch?v=YMvqUyoETXk
LPN-RK-80SP Standards
CE Marked,RoHS CompliantSKU #2282040Part Number #LPN-RK-80SPUNSPSC39121606UPC00051712538435
