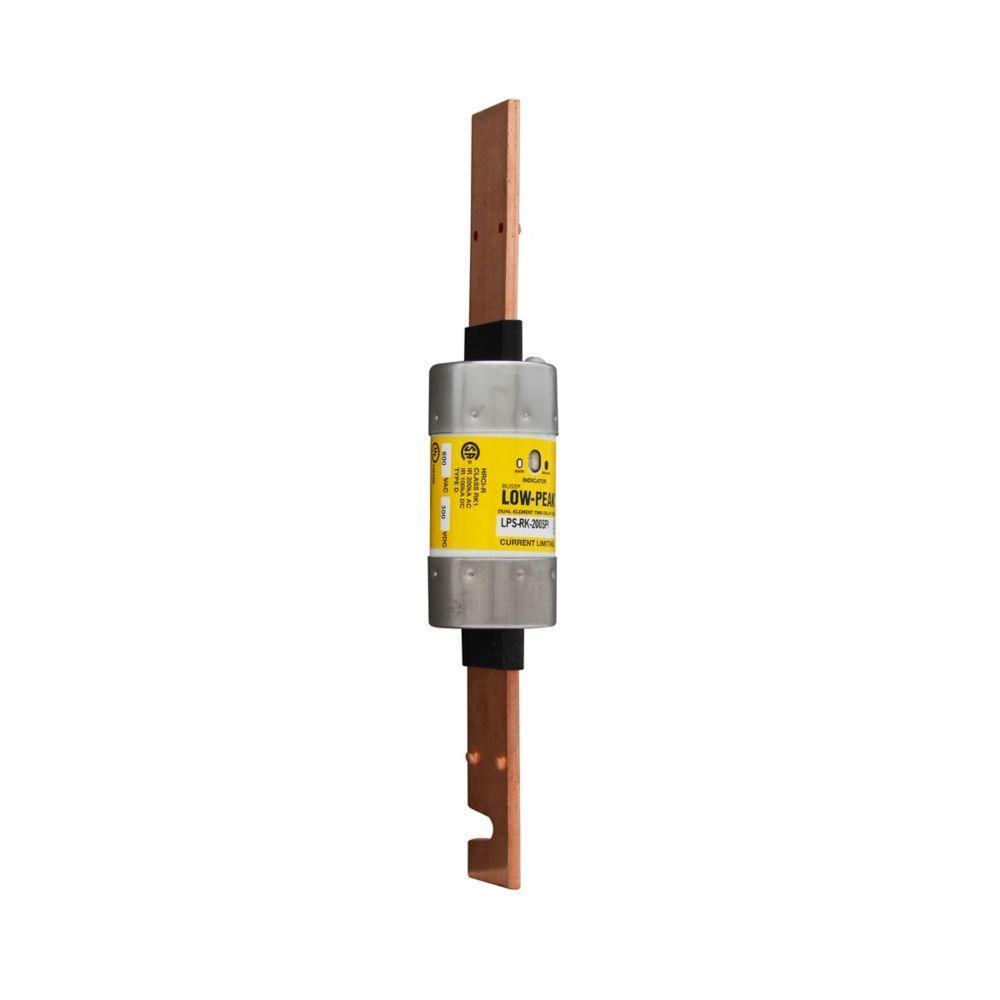

Bussmann LPS-RK-200SPI Time Delay Fuse
Part Number # LPS-RK-200SPI
SKU # 2252028
$407.11 / Each
Bussmann LPS-RK-200SPI Key Features
Brand: Bussmann
Part Number # LPS-RK-200SPI
SKU #2252028
Amperage Rating: 200, 200 A
Body Type: Cartridge
Class: RK1
Indicating/Non-Indicating: Indicating
Interrupt Rating: 300/100, 300/100 kAIC
Rejection/Non-Rejection: Rejection
Response Time: 10, 10 s at 500%
Series: LPS-RK
Terminal Type: Blade End, Knife Blade
Type: Current Limiting, Current Limiting Time Delay
Voltage Rating: 600 VAC/300 VDC
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712626965
$407.11 / Each
Bussmann LPS-RK-200SPI Time Delay Fuse
Brand: Bussmann
Part Number: LPS-RK-200SPI
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Rejection, 200 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 1.61 in Dia x 9.63 in L Body Size
Additional Description: BUSS-LPS-RK-200SPI INDICATING LPS-RK 200SP
Catalog Description: Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 200 A, indicating fuse, interrupting rating of 300 kA at 600 Vac
LPS-RK-200SPI Application
Industrial Facilities and Factories, Safety and Security Systems, Large Distribution Switchboards, Power Panelboards, Motor Control Centers and Machinery Disconnect SwitchesLPS-RK-200SPI Item Features
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Insulated end caps reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Time delay permits 130% FLA sizing for back-up motor protection
- Inventory consolidation of class RK1/RK5/H fuses for reduced SKU investment and minimizing potential for misapplying fuse
- Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current-limitation and selective co-ordination ratio of 2:1 (within Low-Peak fuse family) helps prevent widespread blackouts
- Protects against 1 ph motor damage
- Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
- Electrically isolated end caps for additional safety
- https://www.youtube.com/watch?v=YMvqUyoETXk
LPS-RK-200SPI Standards
CE Certified|CSA C22.2 File No.53787/248.12|UL File No.E56412 Guide JFHSKU #2252028Part Number #LPS-RK-200SPIUNSPSC39121606UPC00051712626965
