Brand: Bussmann

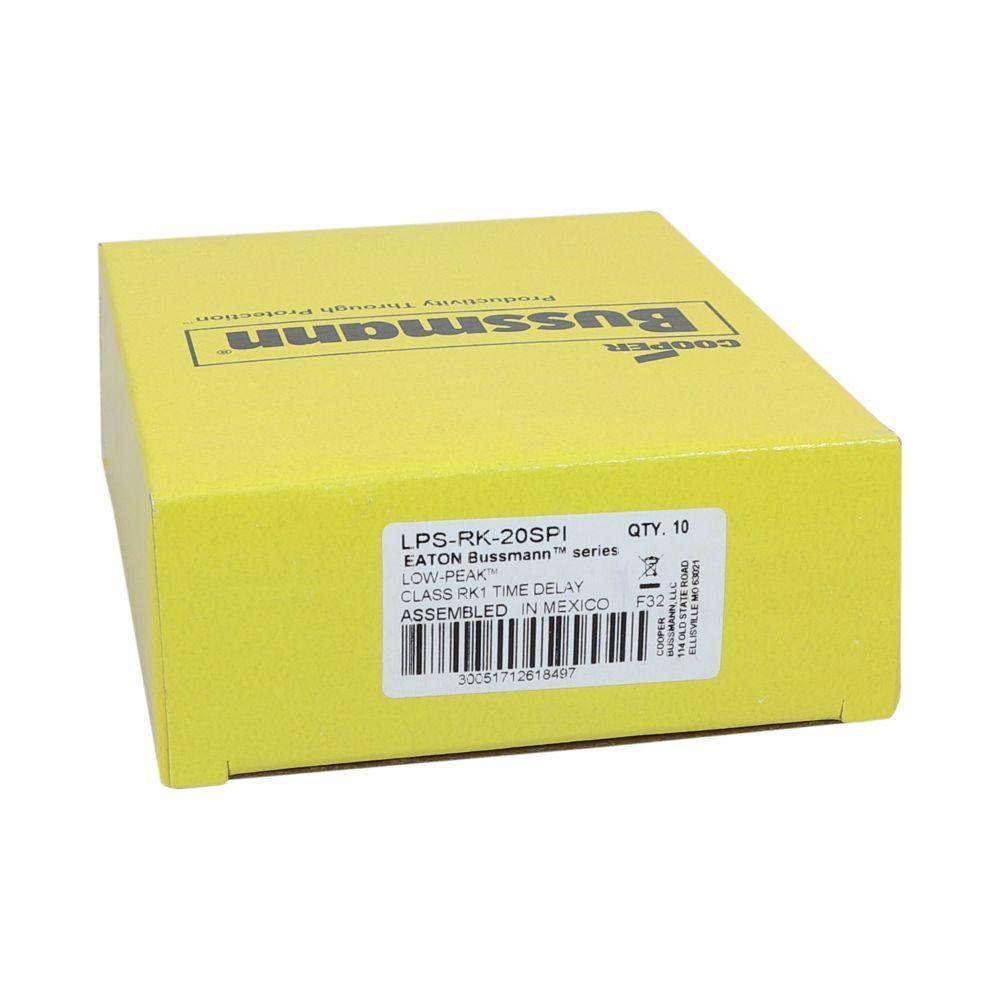

Bussmann LPS-RK-20SPI Time Delay Fuse
Part Number # LPS-RK-20SPI
SKU # 2241590
$603.10 / 10Each
Bussmann LPS-RK-20SPI Key Features
Brand: Bussmann
Part Number # LPS-RK-20SPI
SKU #2241590
Amperage Rating: 20, 20 A
Body Type: Cartridge
Class: RK1
Indicating/Non-Indicating: Indicating
Interrupt Rating: 300, 300/100 kAIC
Rejection/Non-Rejection: Rejection
Response Time: 8, 8 s at 500%
Series: LPS, LPS-RK
Terminal Type: Ferrule, Ferrule End
Type: Current Limiting Low Voltage Time Delay, Low Voltage Current Limiting
Voltage Rating: 600 VAC/300 VDC
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712618496
$603.10 / 10Each
Bussmann LPS-RK-20SPI Time Delay Fuse
Brand: Bussmann
Part Number: LPS-RK-20SPI
Bussmann Low-Peak Fuse, Current Limiting Low Voltage Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Rejection, 20 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: RK1, 8 s at 500% Response, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 0.81 in Dia x 5 in L Body Size
Additional Description: BUSS-LPS-RK-20SPI INDICATING LPS-RK-20SP
Catalog Description: Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 20 A, indicating fuse, interrupting rating of 300 kA at 600 Vac
LPS-RK-20SPI Application
Industrial Facilities and Factories, Safety and Security Systems, Branch Circuit, Large Distribution Switchboards, Power Panelboard, Motor Control Centers and Machinery Disconnect SwitchesLPS-RK-20SPI Item Features
- Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current limitation and selective co-ordination ratio of 2:1 prevents widespread blackouts
- Time delay permits 130% FLA sizing for back-up motor protection
- 300 kA rms symmetrical interrupt rating provides adequate ratings without obsolescence for all electrical systems, big or small, allows for simple, worry free installation in virtually any application
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Protects against 1 ph motor damage
- Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
- Insulated end caps reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing
- Electrically isolated end caps for additional safety
- https://www.youtube.com/watch?v=YMvqUyoETXk
LPS-RK-20SPI Standards
CE Certified|CSA C22.2 File No.53787/248.12|UL File No.E4273 Guide JDDZSKU #2241590Part Number #LPS-RK-20SPIUNSPSC39121606UPC00051712618496
