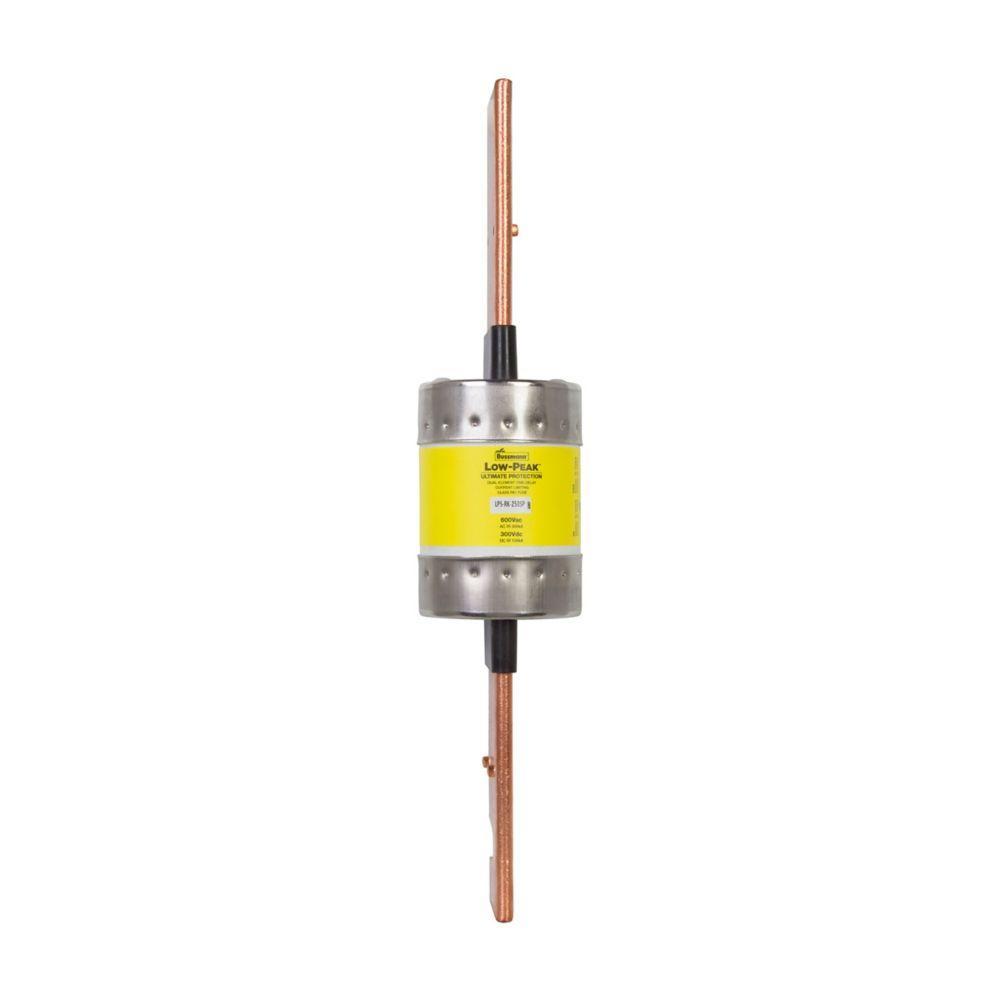

Bussmann LPS-RK-250SP Time Delay Fuse
Part Number # LPS-RK-250SP
SKU # 2252029
$747.69 / Each
Bussmann LPS-RK-250SP Key Features
Brand: Bussmann
Part Number # LPS-RK-250SP
SKU #2252029
Amperage Rating: 250, 250 A
Body Type: Cartridge
Class: RK1
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 100/300, 100/300 kA, 300/100
Rejection/Non-Rejection: Rejection
Response Time: 10 s at 500%
Series: LPS-RK-SP
Terminal Type: Blade, Knife Blade
Voltage Rating: 600 VAC/300 VDC
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712548526
$747.69 / Each
Bussmann LPS-RK-250SP Time Delay Fuse
Brand: Bussmann
Part Number: LPS-RK-250SP
Bussmann Low-Peak Time Delay Fuse, Series: LPS-RK-SP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 250 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: RK1, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 2.36 in Dia x 11.63 in L Body Size
Additional Description: BUSS-LPS-RK-250SP LOW-PEAK DUAL ELEMENT
Catalog Description: Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 250 A, non-indicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
LPS-RK-250SP Application
Motors, Transformers, Solenoids, General Purpose Circuits, Feeder and Branch Circuits Applications, Safety and Security SystemsLPS-RK-250SP Item Features
- Current limitation for maximum short circuit protection and reduced arc flash hazard
- Easy selective co-ordination with all Low-Peak fuses using simple 2:1 ampacity ratio
- No damage type 2 protection for IEC and NEMA starters when properly sized
- High inrush current motor protection
- Time-delay permits 130% FLA sizing for back-up motor overload protection and single phasing protection
- Low watt loss power consumption
- Electrically isolated end caps for additional safety
- VAC interrupting rating that exceeds requirements for virtually all applications
- 300 kA at 600 VAC rms symmetrical, 100 kA at 300 VDC interrupt rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
LPS-RK-250SP Standards
CE Certified|CSA C22.2 No. 248.12|RoHS Compliant|UL File E4273 1422-02 File 53787|UL Guide JDDZ|UL ListedSKU #2252029Part Number #LPS-RK-250SPUNSPSC39121606UPC00051712548526
