Brand: Bussmann

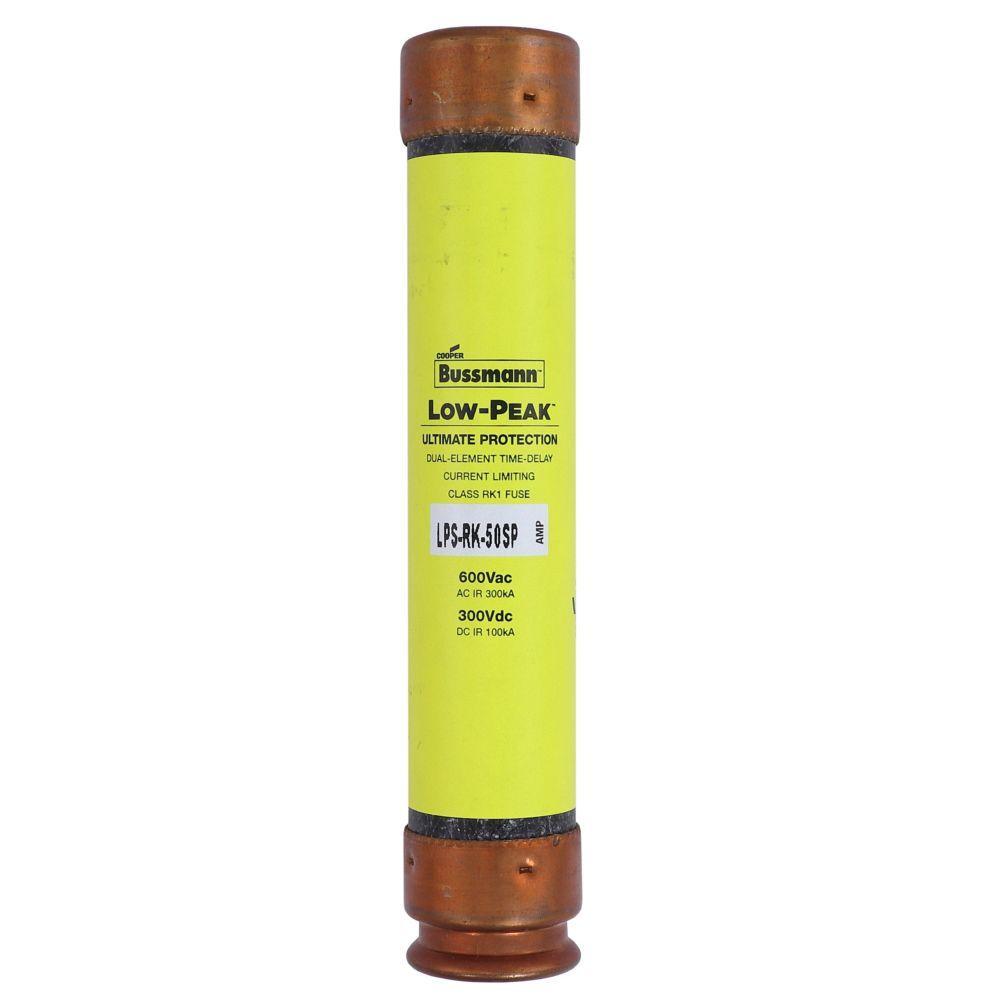

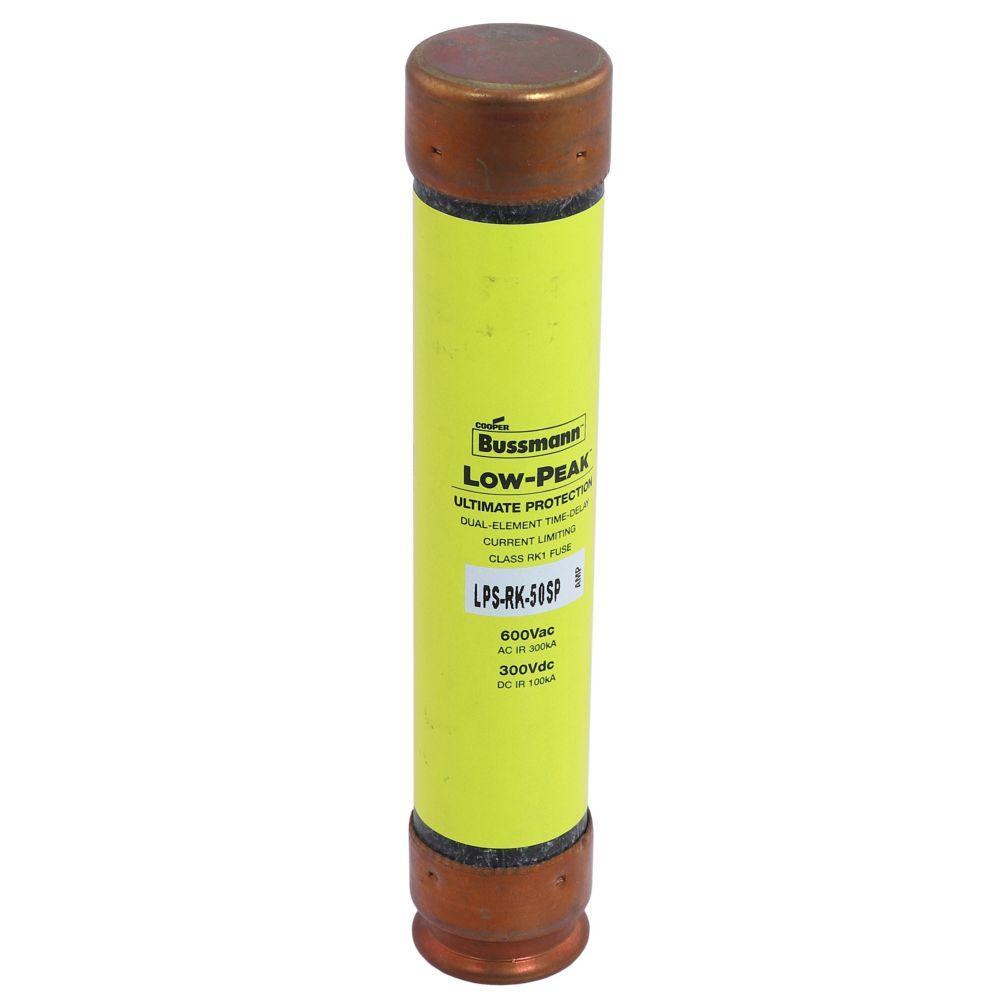

Bussmann LPS-RK-50SP Time Delay Fuse
Part Number # LPS-RK-50SP
SKU # 8227
$741.10 / 10Each
Bussmann LPS-RK-50SP Key Features
Brand: Bussmann
Part Number # LPS-RK-50SP
SKU #8227
Amperage Rating: 50, 50 A
Body Type: Cylindrical
Class: RK1
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 300/100, 300/100 kAIC
Rejection/Non-Rejection: Rejection
Response Time: 10 s at 500%
Series: LPS-RK, LPS-RK-SP
Terminal Type: Clip, Ferrule End
Type: Current Limiting Time Delay
Voltage Rating: 600 VAC/300 VDC
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712548403
$741.10 / 10Each
Bussmann LPS-RK-50SP Time Delay Fuse
Brand: Bussmann
Part Number: LPS-RK-50SP
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 50 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 1.06 in Dia x 5.5 in L Body Size
Additional Description: BUSS-LPS-RK-50SP LOW-PEAK DUAL ELEMENT
Catalog Description: Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 50 A, non-indicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
LPS-RK-50SP Application
Industrial Facilities and Factories, Safety and Security Systems, Feeder and Branch Circuits, Motors, Transformers, Solenoids and General Purpose Circuits ApplicationsLPS-RK-50SP Item Features
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Time-delay permits sizing as close as 130% of motor full load amps (FLA) for back-up overload protection
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Protects against 1 ph motor damage
- Proper sizing can provide "no damage" type 2 motor starter protection for NEMA and the international electrotechnical commission (IEC) motor controllers
- Electrically isolated end caps for additional safety
- https://www.youtube.com/watch?v=YMvqUyoETXk
LPS-RK-50SP Standards
CE Certified|CSA C22.2 File 53787/248.12|UL File No.E4273 Guide JDDZSKU #8227Part Number #LPS-RK-50SPUNSPSC39121606UPC00051712548403
