LPS-RK-600SPI

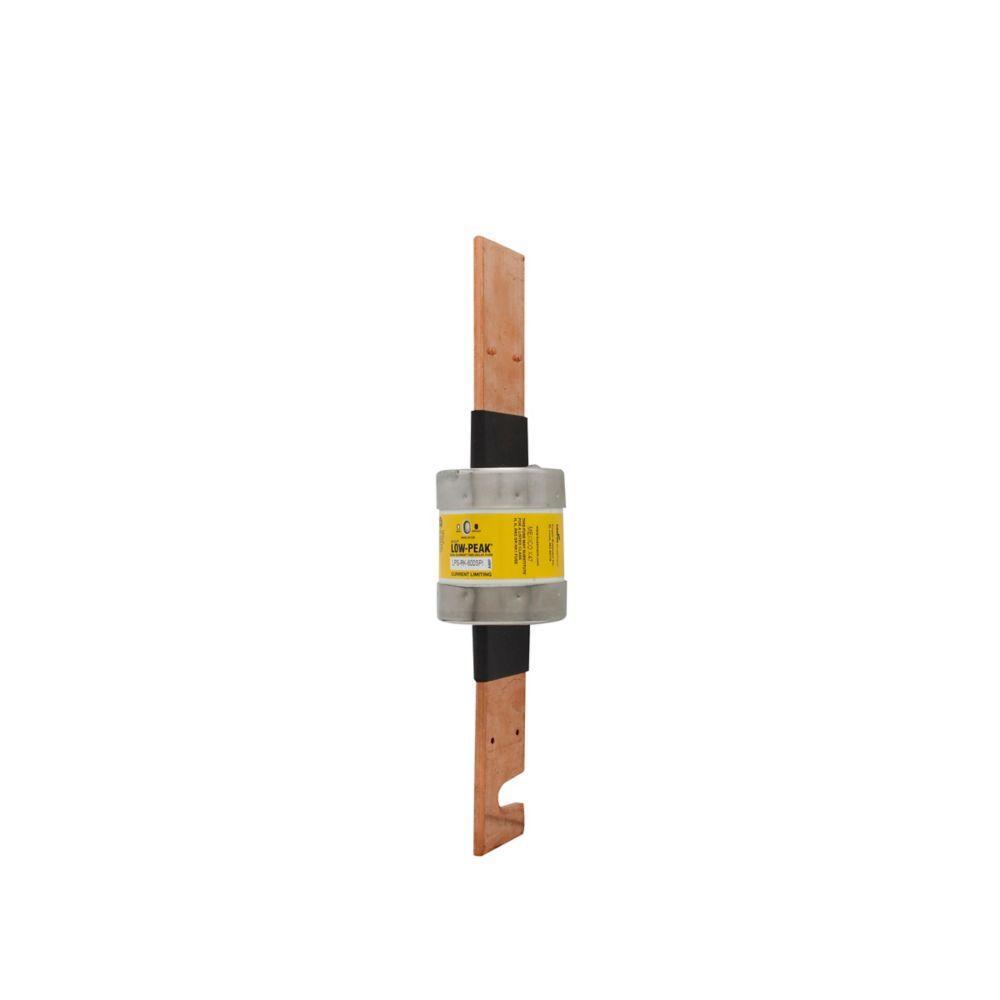

Bussmann LPS-RK-600SPI Low-Peak Fuse
Part Number # LPS-RK-600SPI
SKU # 2408367
$1316.19 / Each
Typical price:$2242.52 / Each
Bussmann LPS-RK-600SPI Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | LPS-RK-600SPI |
| SKU #: | 2408367 |
| Amperage Rating: | 600 A |
| Body Type: | Cartridge |
| Class: | RK1 |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 300/100 kAIC |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 10 s at 500% |
| Series: | LPS-RK |
| Terminal Type: | Blade End |
| Type: | Current Limiting Time Delay |
| Country of origin: | MX |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712627474 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1316.19 / Each
Typical price:$2242.52 / Each
Quantity:
- Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Rejection, 600 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 2.88 in Dia x 13.38 in L Body Size
LPS-RK-600SPI Application
Industrial Facilities and Factories, Safety and Security Systems, Feeder and Branch Circuits, Motors, Transformers, Solenoids and General Purpose Circuits ApplicationsLPS-RK-600SPI Item Features
- Current limitation for maximum short circuit protection and reduced arc flash hazard
- Easy selective coordination with all Low-Peak fuses using simple 2:1 ampacity ratio
- No damage type 2 protection for IEC and NEMA starters when properly sized
- High inrush current motor protection
- Time delay permits 130% FLA sizing for back-up motor overload protection and 1 ph protection
- Low wattage loss power consumption
- Electrically isolated end caps for additional safety
- VAC interrupt rating that exceeds requirements for virtually all applications
- https://www.youtube.com/watch?v=YMvqUyoETXk
LPS-RK-600SPI Standards
CE Certified|CSA C22.2 File No.53787/248.12|UL File No.E4273 Guide JDDZSKU #2408367Part Number #LPS-RK-600SPIUNSPSC39121606UPC00051712627474
