- Current limitation for maximum short circuit protection and reduced arc flash hazard
- Easy selective coordination with all Low-Peak fuses using simple 2:1 ampacity ratio
- No damage type 2 protection for IEC and NEMA starters when properly sized
- High inrush current motor protection
- Time delay permits 130% FLA sizing for back-up motor overload protection and 1 ph protection
- Low wattage loss power consumption
- Electrically isolated end caps for additional safety
- VAC interrupt rating that exceeds requirements for virtually all applications
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 70 A
Body Type: Cartridge
Class: RK1
Indicating/Non-Indicating: Indicating
Interrupt Rating: 300/100 kAIC
Rejection/Non-Rejection: Rejection
Response Time: 10 s at 500%
Series: LPS-RK
Terminal Type: Blade End
Type: Current Limiting Time Delay
Voltage Rating: 600 VAC/300 VDC
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712626538

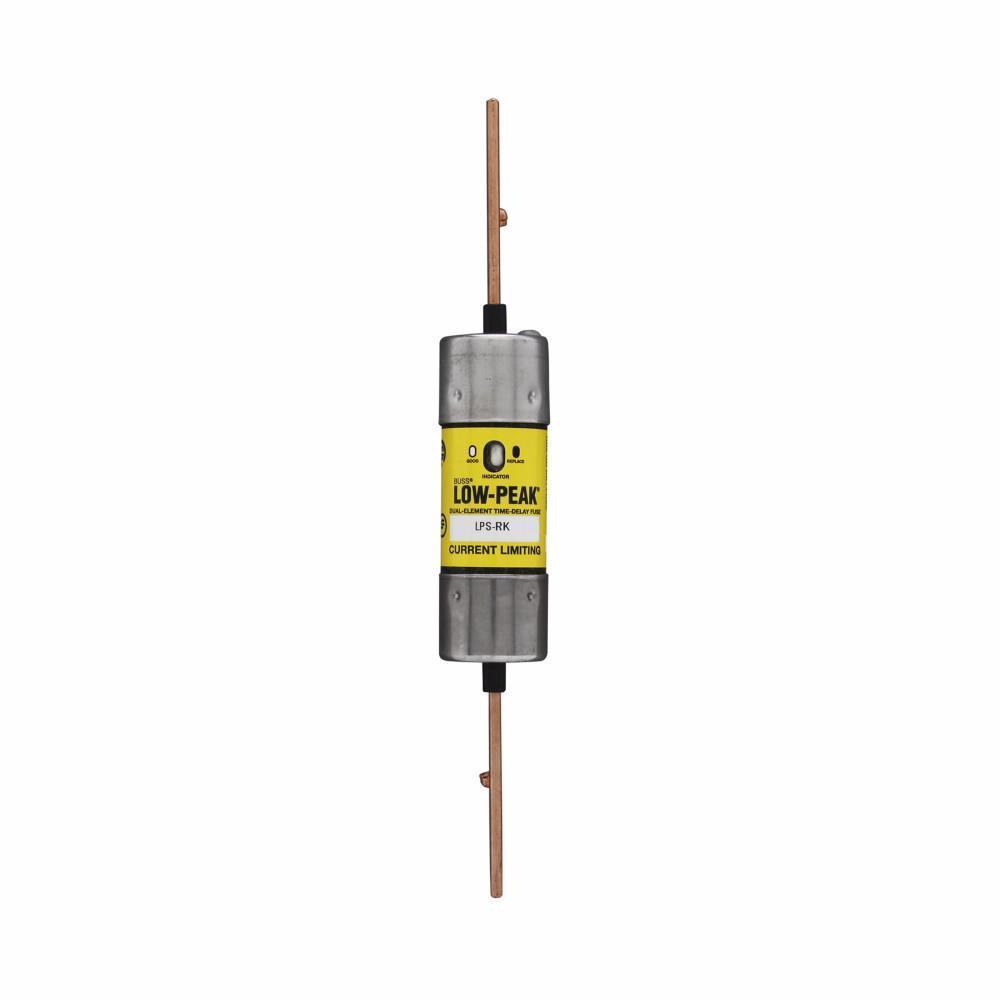

Bussmann LPS-RK-70SPI Low-Peak Fuse
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Rejection, 70 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 1.11 in Dia x 7.88 in L Body Size
Additional Description: BUSS-LPS-RK-70SPI INDICATING LPS-RK-70SP
Catalog Description: Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 70 A, indicating fuse, interrupting rating of 300 kA at 600 Vac
Item FeaturesIndustrial Facilities and Factories, Safety and Security Systems, Feeder and Branch Circuits, Motors, Transformers, Solenoids and General Purpose Circuits Applications
Item Features
Item FeaturesCE Certified|CSA C22.2 File 53787/248.12|UL File No.E4273 Guide JDDZ
