Part Number # LPT-35
SKU # 2425086
Brand: Bussmann
LPT-35
Bussmann LPT-35 Low-Peak Fuse
Part Number # LPT-35
SKU # 2425086
$109.87 / Each
Typical price:$187.20 / Each
Bussmann LPT-35 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | LPT-35 |
| SKU #: | 2425086 |
| Amperage Rating: | 35 A |
| Body Type: | Cylindrical |
| Class: | T |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA |
| Rejection/Non-Rejection: | Rejection |
| Series: | LPT |
| Terminal Type: | Clip |
| Type: | Time Lag |
| Country of origin: | MX |
| Material: | Ceramic |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121626 |
| UPC: | 00051712252805 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$109.87 / Each
Typical price:$187.20 / Each
Quantity:
- Edison Low-Peak Time Lag Fuse, Series: LPT, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 35 A, 600 V AC, 200 kA Interrupt, Class: T, Clip Terminal, Holder Mount, Cylindrical Body, Dual Element, Ceramic, 1 in Dia x 1.56 in L Body Size
LPT-35 Application
For protection of motor circuits up to 15 hp at 460 VAC/20 hp at 575 VACLPT-35 Item Features
- A superior all purpose space saving branch circuit fuse that meets most protection requirements up to 60 A
- Time lag to avoid unwanted fuse openings from surge currents when sized appropriately per NEC
- Fast response under short circuit conditions for a high deg of current limitation
- Maximum interrupt rating of 200 kA for use in todays large capacity systems
LPT-35 Standards
UL File No. E4273|CSA File No. 53787SKU #2425086Part Number #LPT-35UNSPSC39121626UPC00051712252805

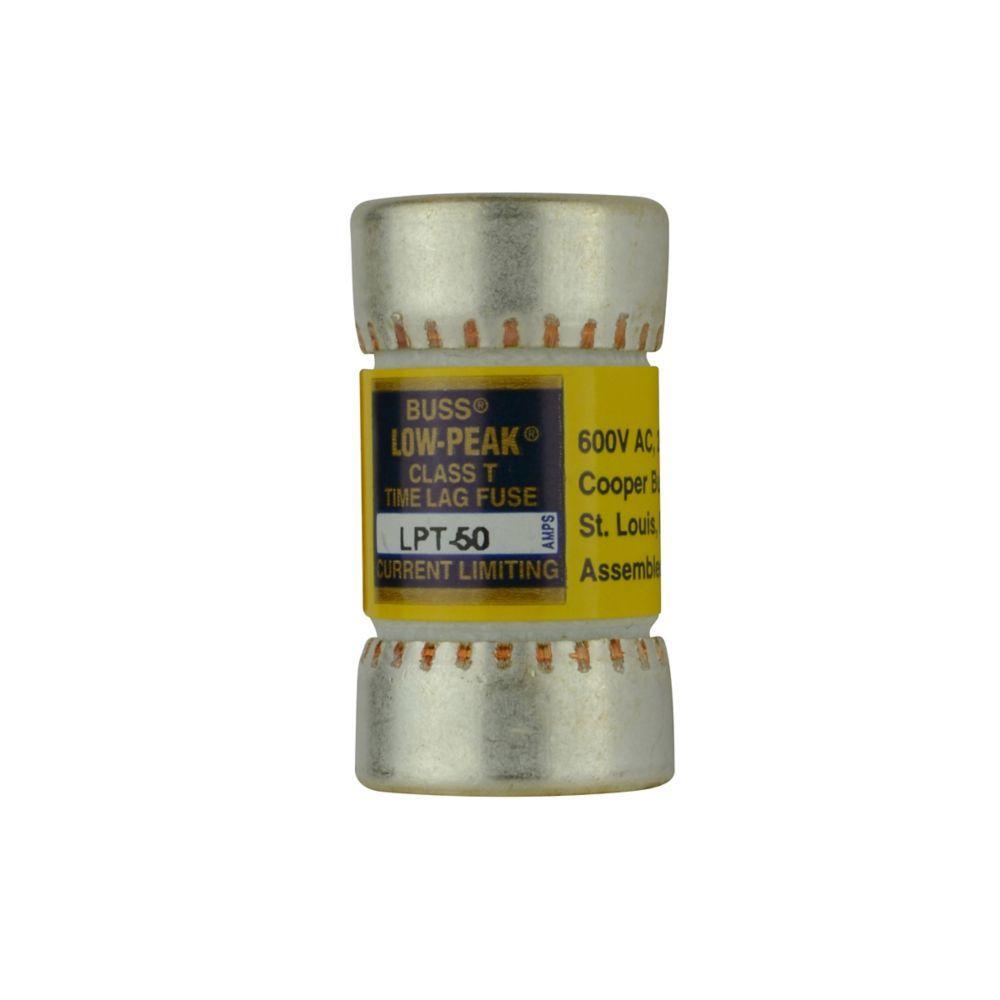

Image provided may only be a representation of final product and may include optional equipment
