Brand: Bussmann
MDA-7-R

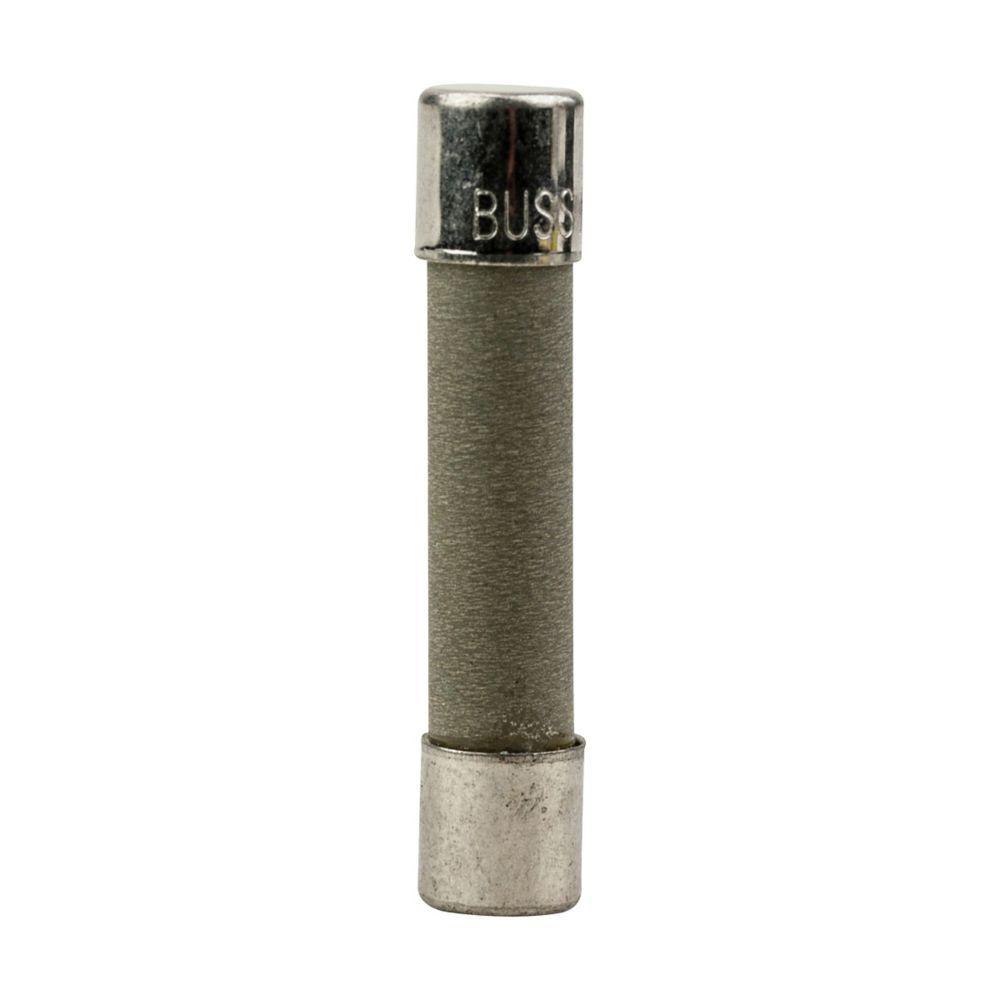

Bussmann MDA-7-R Time Delay Fuse
Part Number # MDA-7-R
SKU # 2264239
$22.45 / 5Each
Typical price:$45.60 / Each
Bussmann MDA-7-R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | MDA-7-R |
| SKU #: | 2264239 |
| Amperage Rating: | 7, 7 A |
| Body Type: | Cylindrical |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 A/10 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 60 min, 120 s |
| Series: | MDA |
| Terminal Type: | Ferrule |
| Type: | Small Dimension |
| Country of origin: | CN |
| Material: | Ceramic |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121611 |
| UPC: | 00051712645386 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$22.45 / 5Each
Typical price:$45.60 / Each
Quantity:
- Bussmann, MDA-7-R, Time Delay Fuse, Small Dimension, Series: MDA, Non-Indicating, Non-Rejection, 7 A, 250 V AC, 200 A/10 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body
MDA-7-R Application
Electronic Circuit ApplicationsMDA-7-R Item Features
- Ceramic body for higher amp/volt ratings
- Inventory consolidation by replacing MDL fuses allows for reduced SKU investment and minimizing potential for misapplying fuse
- 200 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- Ceramic tube, nickel plated brass end caps construction
- 60 min maximum at 135% of ampere rating, 120 s maximum at 200% of ampere rating response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
MDA-7-R Standards
RoHS Compliant|CE Certified|Standard 248-14|UL Listed|CSA File No. 53787|RoHS 2011/65/EU|UL 248-14, Guide JDYX, File No. E19180|CSA Class No. 1422-01SKU #2264239Part Number #MDA-7-RUNSPSC39121611UPC00051712645386
