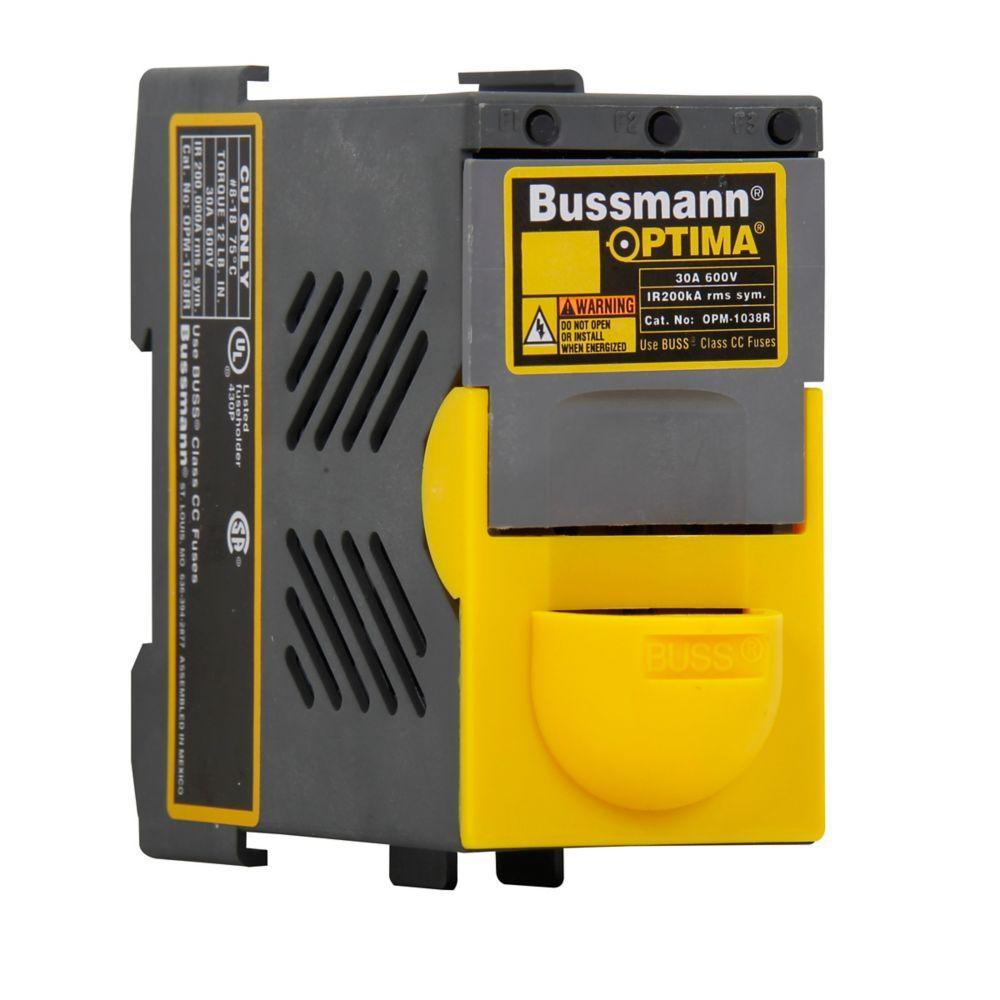

Bussmann OPM-1038 Fuse Holder Module
Part Number # OPM-1038
SKU # 8369
$312.33 / Each
Bussmann OPM-1038 Key Features
Brand: Bussmann
Part Number # OPM-1038
SKU #8369
Amperage Rating: 30, 30/32, 30/32 A
Class: CC/Midget
Dimensions: 3.6 in H x 1.76 in W x 3.74 in D
Fuse Diameter: 13/32
Fuse Length: 1-1/2
Fuse Size: 13/32 x 1-1/2 in
Fuse Type: Class CC, Midget
Number of Phases: 3
Number of Poles: 3
Power Rating: 15
Series: OPM
Suitable For Use With: 13/32 in Dia x 1-1/2 in L Fuse
Type: Overcurrent Protection, Overcurrent Protection Fuse Holder Module
Voltage Rating: 600, 600/660 VAC, 600/660 VAC, 600 VDC
Wire Size: 18 to 8 AWG, 18 to 10 AWG, 18 to 8 AWG, 18 to 10 AWG Stranded/Solid, 18 to 8/18 to 10 AWG
Wire Type: Solid/Stranded, Stranded/Solid
Color: Gray
Country of origin: MX
Depth: 3.74, 3.74 in
Height: 3.6, 3.6 in
Material: Thermoplastic
Mounting type: DIN Rail, DIN Rail/Screw, DIN Rail/Threaded
Width: 1.76, 1.76 in
Manufacturer Name: Eaton
UNSPSC: 39121624
UPC: 00051712797191
$312.33 / Each
Bussmann OPM-1038 Fuse Holder Module
Brand: Bussmann
Part Number: OPM-1038
Bussmann Optima Fuse Holder, Overcurrent Protection, Series: OPM, 600/660 VAC, 30/32 A, 3 Pole, Class CC Fuse, 18 to 8/18 to 10 AWG Wire, Stranded/Solid Wire, 13/32 x 1-1/2 in Fuse, DIN Rail/Screw Mount, 1.76 in Width, 3.6 in Height, 3.74 in D, Thermoplastic
Additional Description: BUSS-OPM-1038 OPTIMA MODULE/MIDGETSTYLE
Catalog Description: Eaton Bussmann series Optima fuse holders, 30 A (UL/CSA), 32 A (IEC), Three-pole, 200 kA, #10-18 AWG solid, #8-18 AWG stranded, 200 kAIC, Thermoplastic, 600 V (UL/CSA), 660 V (IEC)
OPM-1038 Application
Industrial Control, Process Control Systems, Automated Warehouse Systems, Individual Control Circuits, Electrical Assemblies, Panels and EOEMs ApplicationsOPM-1038 Item Features
- "Open" fuse indication lights
- Finger safe terminals
- Cam action handle for easy module removal
- 35 mm DIN rail or screw panel mounting
- Dead front construction
- No exposed contacts for added safety
- Offered with class CC rejection clips or European 10 x 38 mm clips to meet global needs
- Wire ready - saves time as terminals are ready to accept wires
- Small size matches 45 mm W IEC starter
- Handle and shaft required for through-the-door operation
- For use with KTK, FNM, FNQ non-rejection fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
OPM-1038 Standards
CE Certified|CSA C22.2 File No. 39/47235|IEC Certified|RoHS Compliant|UL 512|UL 94-V-O Flammability Rated|UL RecognizedSKU #8369Part Number #OPM-1038UNSPSC39121624UPC00051712797191
