Brand: Bussmann

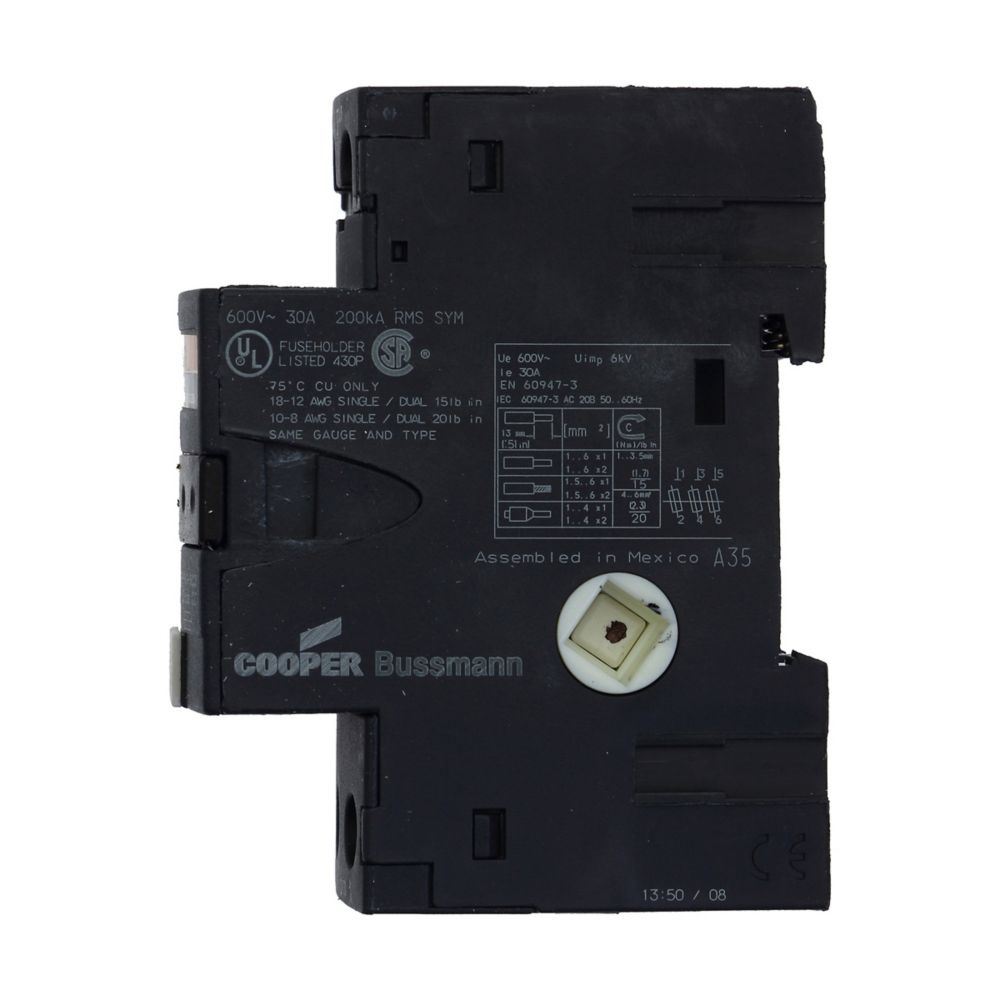

Bussmann OPM-NG-SC3 Fuse Holder Module
Part Number # OPM-NG-SC3
SKU # 2126545
$158.36 / Each
Bussmann OPM-NG-SC3 Key Features
Brand: Bussmann
Part Number # OPM-NG-SC3
SKU #2126545
Amperage Rating: 30, 30 A
Dimensions: 1.8 in L x 3.5 in H
Fuse Type: Class CC
Number of Poles: 3
Operating Temperature: -10 to 65, -10 to 65 deg C
Series: OPM
Suitable For Use With: LP-CC/KTK-R/FNQ-R Series Rejection Class CC Fuse
Temperature Rating (Degrees F): -10 to 65
Type: Overcurrent Protection
Voltage Rating: 600, 600 VAC
Wire Size: 14 to 6, 14 to 6 AWG
Color: Black
Connection type: Philips Slot Screw/Pressure Plate
Country of origin: MX
Height: 3-1/2, 3-1/2 in
Material: Thermoplastic
Mounting type: DIN Rail/Threaded, DIN Rail/Threaded/Screw
Manufacturer Name: Eaton
UNSPSC: 39121624
UPC: 00051712674171
$158.36 / Each
Bussmann OPM-NG-SC3 Fuse Holder Module
Brand: Bussmann
Part Number: OPM-NG-SC3
Bussmann OPTIMA Fuse Holder Module, Overcurrent Protection, Series: OPM, 600 VAC, 30 A, 3 Pole, Class CC Fuse, 14 to 6 AWG Wire, DIN Rail/Threaded/Screw Mount, -10 to 65 deg C Operating, 3-1/2 in Height, Thermoplastic
Additional Description: BUSS-OPM-NG-SC3 45MM 3 PHASE FUSE HOLDER CC FUSES
Catalog Description: Eaton Bussmann series Optima fuse holders, 0-30 A, Three-pole, 65°C, -10°C, 200 kA, Philslot screws/pressure plate, 200 kAIC, Thermoplastic, 35 mm DIN rail, #8 Screw, 600 V or less, Use with LP-CC, KTK-R, FNQ-R Class CC
OPM-NG-SC3 Application
Mass Produced Control Systems, Process Control Systems, Automated Warehouse Systems, Individual Control Circuit, Electrical Assemblies, Panels and EOEMs ApplicationsOPM-NG-SC3 Includes
Philslot Screws, Pressure Plate, Tin Plated Copper Alloy Clip, Plated Steel Saddle Screw and Stainless Steel DIN Rail SpringOPM-NG-SC3 Item Features
- 45 mm W matches IEC starters
- Pressure plate terminations with dual wire rated terminals and optional auxiliary contacts
- Integrated collapsible handle and fuse carrier cannot be removed from holder base
- Padlockable and IP20 finger safe
- For use with LP-CC, KTK-R, FNQ-R class CC rejection fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
OPM-NG-SC3 Standards
CE Certified|CSA C22.2 File No. 4248/47235|IEC 60529|RoHS Compliant|UL 512/4248 File No. E14853 Guide IZLTSKU #2126545Part Number #OPM-NG-SC3UNSPSC39121624UPC00051712674171
