Brand: Bussmann

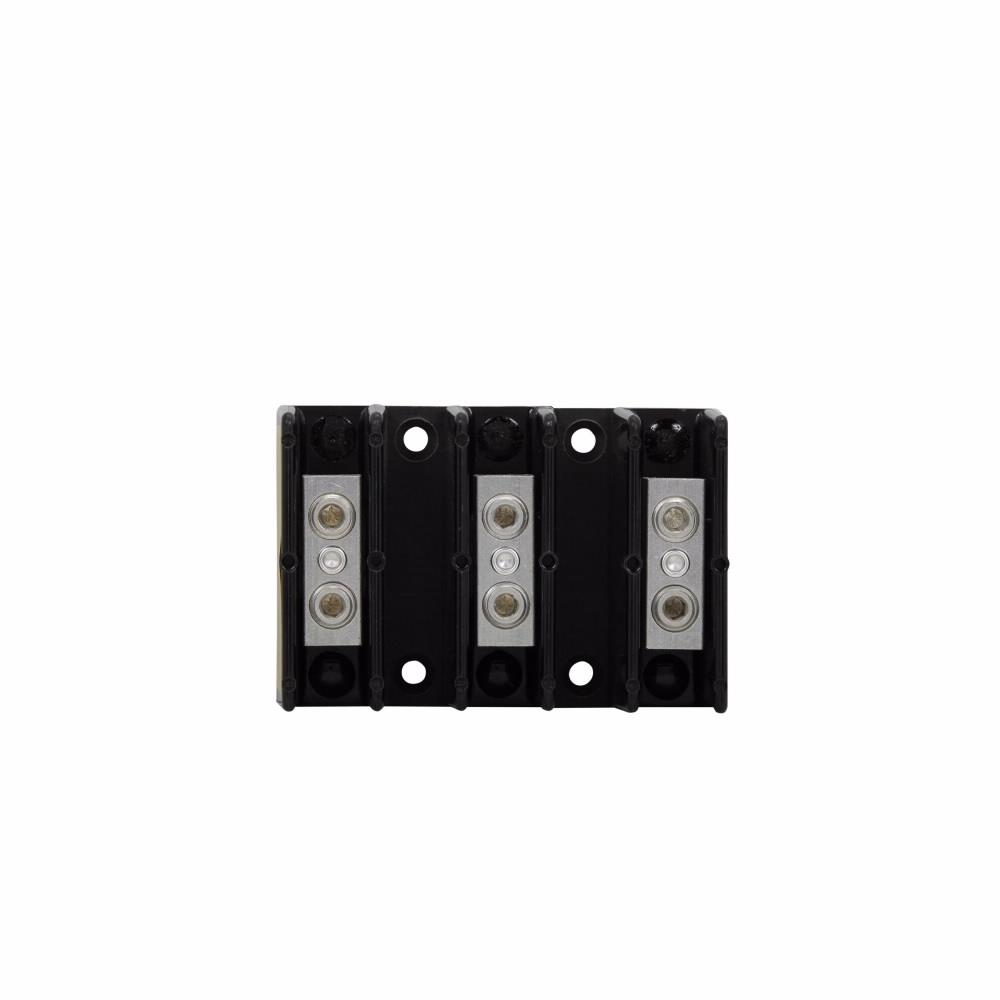

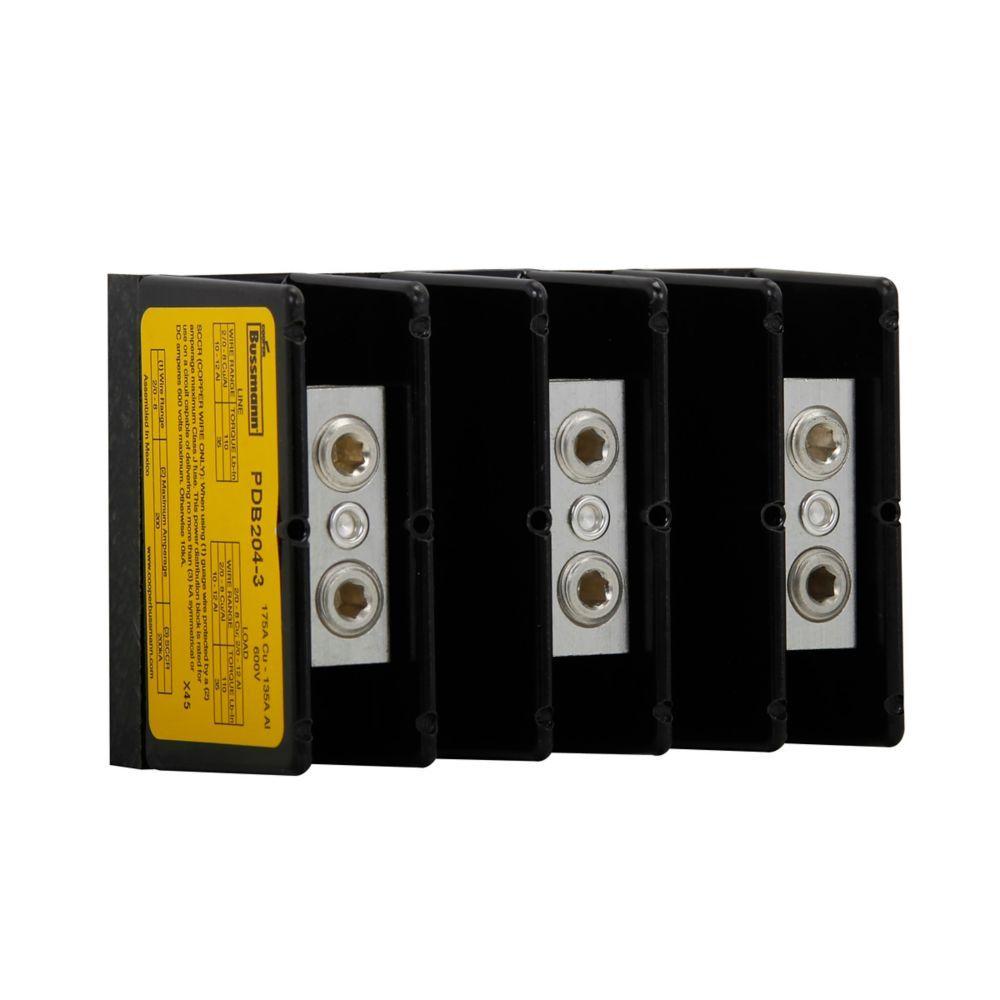

Bussmann PDB204-3 Power Terminal Block
Part Number # PDB204-3
SKU # 2265820
$75.79 / Each
Bussmann PDB204-3 Key Features
Brand: Bussmann
Part Number # PDB204-3
SKU #2265820
Amperage Rating: 175, 175 A
Dimensions: 2.88 in L x 4.27 in W x 2.13 in H
Finish: Tin Plated
Fuse Type: Class CC
Number of Poles: 3
Series: PDB
Short Circuit Current Rating (kA): 200, 200 kA
Type: Barrier
Voltage Rating: 600, 600 VAC/VDC
Wire Size: 8 to 2/0, 8 to 2/0 AWG Cu Line/Load
Color: Black
Country of origin: MX
Material: Aluminum
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712637794
$75.79 / Each
Bussmann PDB204-3 Power Terminal Block
Brand: Bussmann
Part Number: PDB204-3
Bussmann Power Distribution Block, Barrier, Series: PDB, 600 VAC/VDC, 175 A, 3 Pole, (1) Box Lug Primary Connections/Pole, (1) Box Lug Secondary Connection/Pole, 8 to 2/0 AWG Cu Line/Load Wire, Class CC Fuse, 200 kA Short Circuit Current, Aluminum, Tin Plated, Black, 2.88 in L x 4.27 in W x 2.13 in H
Additional Description: BUSS-PDB204-3 POWER DISTRIBUTION BLOCK
Catalog Description: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, Three-pole, SCCR: 200 kAIC, Panel, Tin-plated aluminum connectors
PDB204-3 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs ApplicationsPDB204-3 Item Features
- PDBs are often an assemblys lowest rated component or features weak link and may limit the assembly SCCR to only 10 kA, eliminate this weak link with these new, higher rated PDBs
- By replacing a low rated PDB with a new Cooper Bussmann high SCCR PDB, an assembly can achieve a higher SCCR for more installations flexibility
- IP20 finger safe enclosure
- https://www.youtube.com/watch?v=YMvqUyoETXk
PDB204-3 Standards
CE Certified|CSA Certified|IEC Certified|NEC Certified|RoHS Compliant|UL 1953SKU #2265820Part Number #PDB204-3UNSPSC39121629UPC00051712637794
