Bussmann PDB220-1 Power Distribution Block
Part Number # PDB220-1
SKU # 2209802
Bussmann PDB220-1 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | PDB220-1 |
| SKU #: | 2209802 |
| Amperage Rating: | 175, 175 A |
| Dimensions: | 2.88 in L x 1.07 in W x 1.75 in H |
| Finish: | Tin Plated |
| Fuse Type: | Class CC, Class CC/G/J/T |
| Number of Poles: | 1 |
| Series: | PDB |
| Short Circuit Current Rating (kA): | 200/100, 200/100 kA |
| Type: | Barrier High SCCR |
| Wire Size: | 8 to 2/0 AWG Cu Line, (4) 14 to 4 AWG Cu Load, 12 to 4 AWG, 8 to 2/0 AWG, 14 to 4 AWG |
| Country of origin: | MX |
| Material: | Aluminum/Phenolic, Phenolic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712637725 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann PDB220-1 Power Distribution Block
Brand: Bussmann
Part Number: PDB220-1
Bussmann Power Distribution Block, Barrier High SCCR, Series: PDB, 600 VAC/VDC, 175 A, 1 Pole, (1) Box Lug Primary Connections/Pole, (4) Box Lug Secondary Connection/Pole, 8 to 2/0 AWG Cu Line, (4) 14 to 4 AWG Cu Load, 12 to 4 AWG Wire, Class CC/G/J/T Fuse, 200/100 kA Short Circuit Current, Aluminum/Phenolic, Tin Plated, 2.88 in L x 1.07 in W x 1.75 in H
Additional Description: BUSS-PDB220-1 POWER DISTRIBUTION BLOCK
Catalog Description: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, Single-pole, SCCR: 200 kA (12 To 4 AWG), 100 kA (14 To 4 AWG), Panel, Tin-plated aluminum connectors
PDB220-1 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs ApplicationsPDB220-1 Item Features
- IP20 finger safe enclosure
- PDBs are often an assemblys lowest rated component or features weak link and may limit the assembly SCCR to only 10 kA, eliminate this weak link with these new, higher rated PDBs
- By replacing a low rated PDB with a new Cooper Bussmann high SCCR PDB, an assembly can achieve a higher SCCR for more installations flexibility
- Panel mounting
- 175/200 A class CC/G/J/T fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
PDB220-1 Standards
CE Certified|CSA Certified|IEC Certified|RoHS Compliant|UL 1953SKU #2209802Part Number #PDB220-1UNSPSC39121629UPC00051712637725

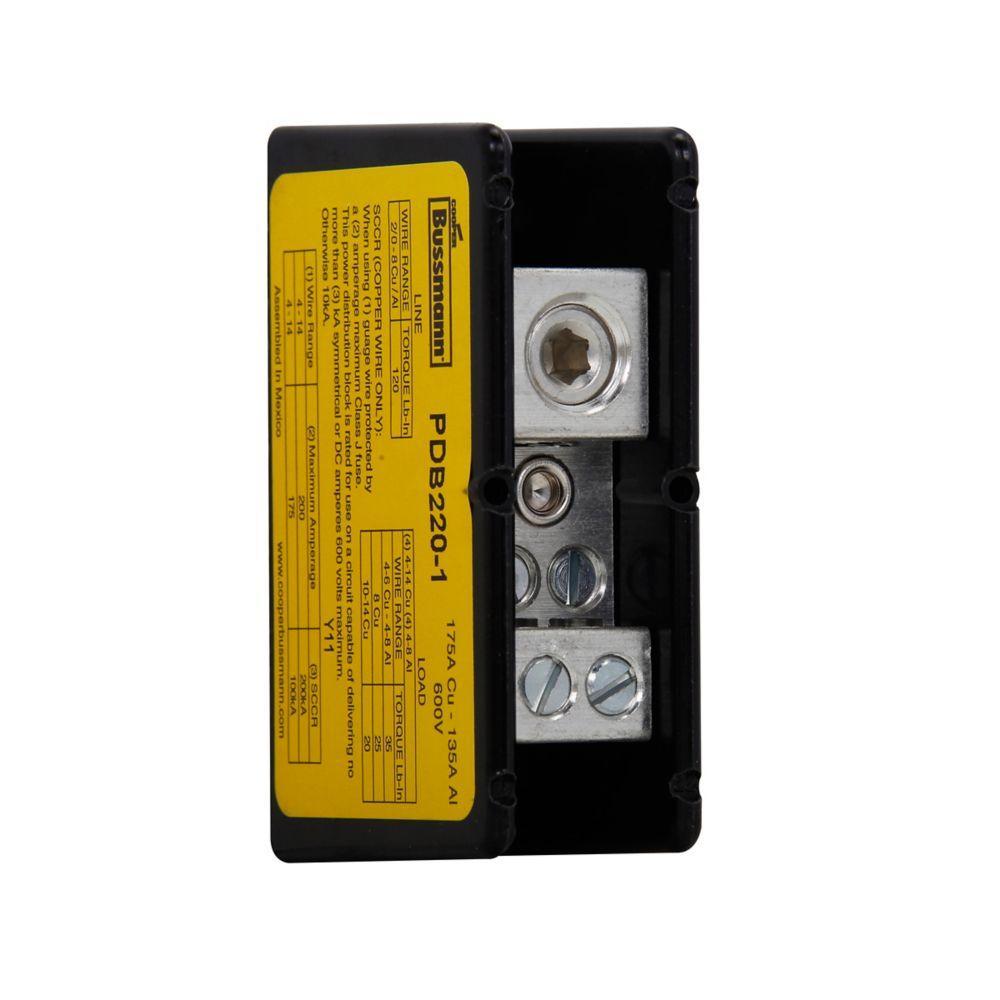

Image provided may only be a representation of final product and may include optional equipment
