- PDBs are often an assemblys lowest rated component or features weak link and may limit the assembly SCCR to only 10 kA, eliminate this weak link with these new, higher rated PDBs
- By replacing a low rated PDB with a new Cooper Bussmann high SCCR PDB, an assembly can achieve a higher SCCR for more installations flexibility
- IP20 finger safe enclosure
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 175, 175 A
Dimensions: 2.88 in L x 4.27 in W x 2.13 in H
Finish: Tin Plated
Fuse Type: Class CC
Number of Poles: 3
Series: PDB
Short Circuit Current Rating (kA): 100/200, 100/200 kA
Type: Barrier
Voltage Rating: 600, 600 VAC/VDC
Wire Size: 8 to 2/0, 8 to 2/0 AWG Line Cu, (4) 14 to 4 AWG Cu Load
Color: Black
Country of origin: MX
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712637787

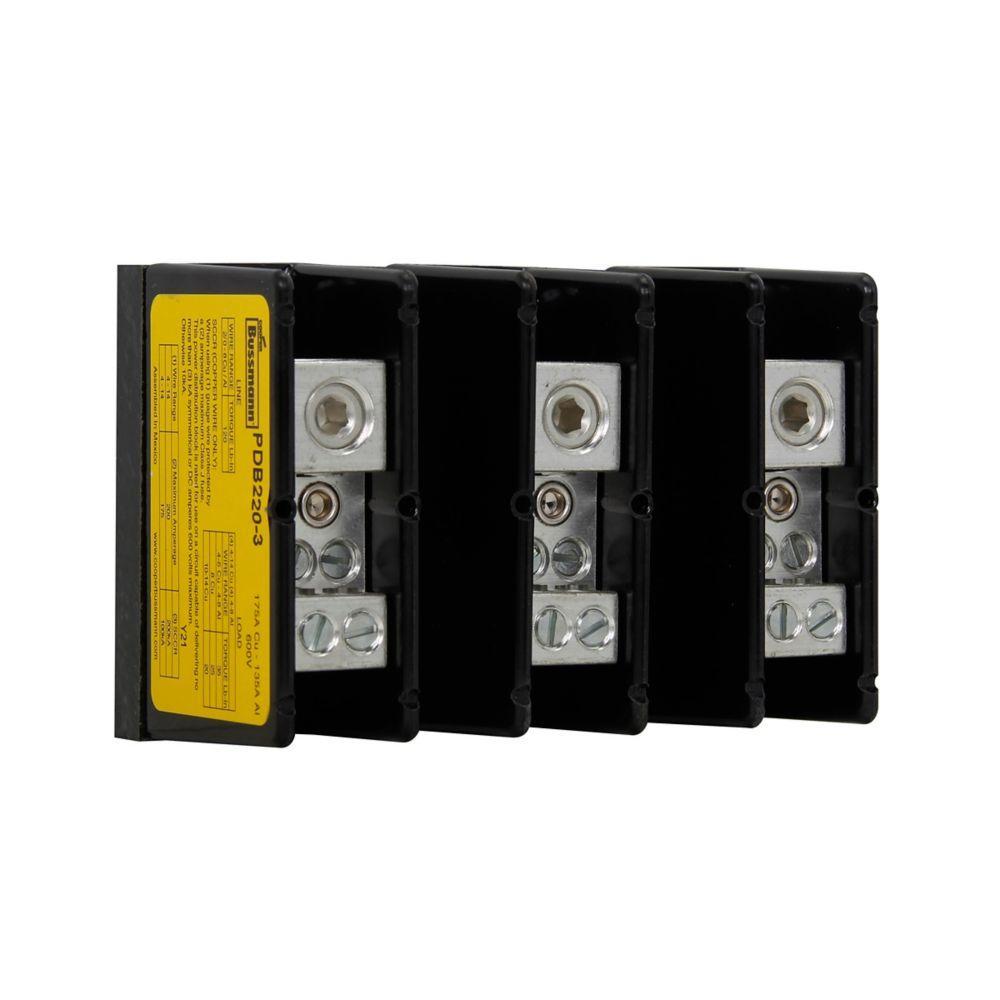

Bussmann PDB220-3 Power Terminal Block
Bussmann Power Distribution Block, Barrier, Series: PDB, 600 VAC/VDC, 175 A, 3 Pole, (1) Box Lug Primary Connections/Pole, (4) Box Lug Secondary Connection/Pole, 8 to 2/0 AWG Line Cu, (4) 14 to 4 AWG Cu Load Wire, Class CC Fuse, 100/200 kA Short Circuit Current, Aluminum, Tin Plated, Black, 2.88 in L x 4.27 in W x 2.13 in H
Additional Description: BUSS-PDB220-3 POWER DISTRIBUTION BLOCK
Catalog Description: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, Three-pole, SCCR: 200 kA (12 To 4 AWG), 100 kA (14 To 4 AWG), Panel, Tin-plated aluminum connectors
Item FeaturesPower Distribution, Electrical Assemblies, Panels and EOEMs Applications
Item Features
Item FeaturesCE Certified|CSA Certified|IEC Certified|NEC Certified|RoHS Compliant|UL 1953
