Brand: Bussmann

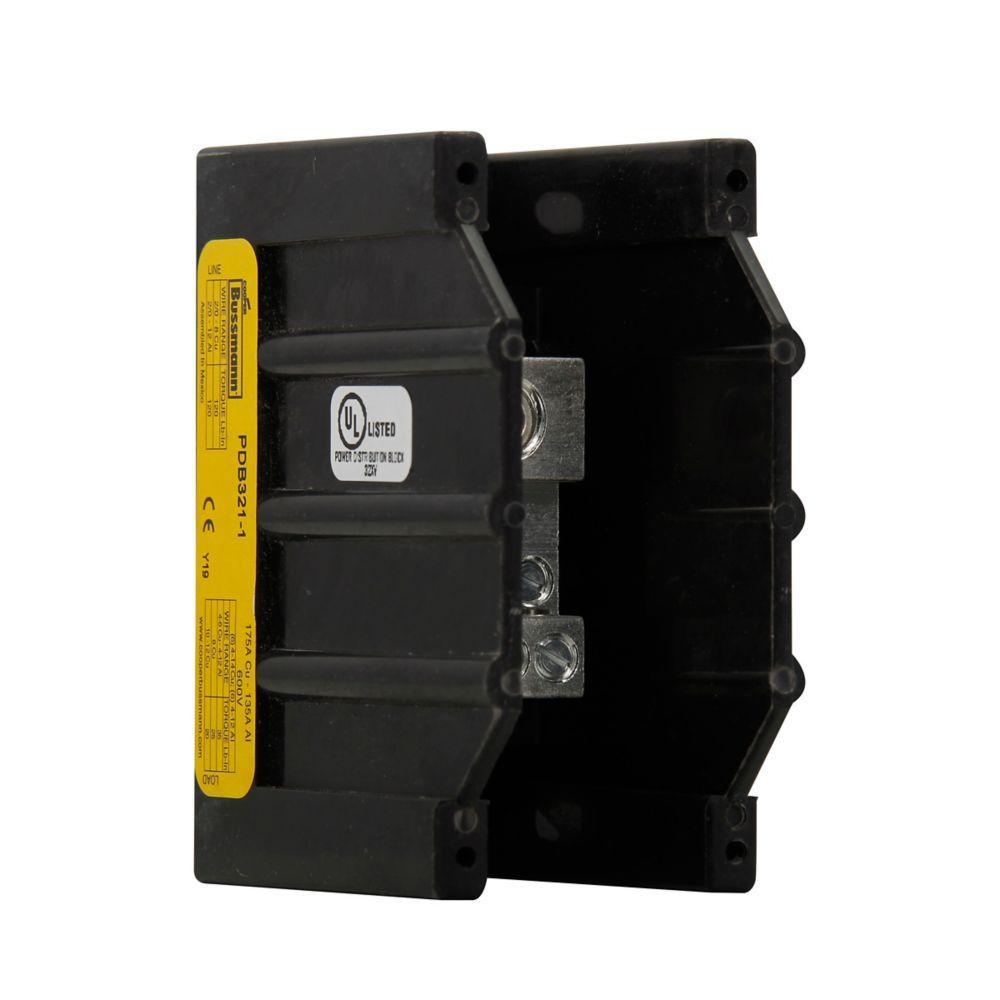

Bussmann PDB321-1 Power Distribution Block
Part Number # PDB321-1
SKU # 2251336
$160.67 / Each
Bussmann PDB321-1 Key Features
Brand: Bussmann
Part Number # PDB321-1
SKU #2251336
Amperage Rating: 175, 175 A
Dimensions: 4 in L x 1.96 in W x 3.32 in H
Finish: Tin Plated
Fuse Type: Class CC, Class CC/G/J/T
Number of Poles: 1
Series: PDB
Short Circuit Current Rating (kA): 200, 200/100 kA
Type: Barrier High SCCR
Voltage Rating: 600, 600 VAC/VDC
Wire Size: 8 to 2/0 AWG Cu Line, (6) 14 to 4 AWG Cu Load, 12 to 4 AWG, 8 to 2/0 AWG, 14 to 4 AWG
Material: Aluminum/Phenolic, Phenolic
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712637848
$160.67 / Each
Bussmann PDB321-1 Power Distribution Block
Brand: Bussmann
Part Number: PDB321-1
Bussmann Power Distribution Block, Barrier High SCCR, Series: PDB, 600 VAC/VDC, 175 A, 1 Pole, (1) Box Lug Primary Connections/Pole, (6) Box Lug Secondary Connection/Pole, 8 to 2/0 AWG Cu Line, (6) 14 to 4 AWG Cu Load, 12 to 4 AWG Wire, Class CC/G/J/T Fuse, 200/100 kA Short Circuit Current, Aluminum/Phenolic, Tin Plated, 4 in L x 1.96 in W x 3.32 in H
Additional Description: BUSS-PDB321-1 POWER DISTRIBUTION BLOCK
Catalog Description: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, Single-pole, SCCR: 200 kA, Panel, Tin-plated aluminum connectors
PDB321-1 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs ApplicationsPDB321-1 Item Features
- IP20 finger safe enclosure
- PDBs are often an assemblys lowest rated component or features weak link and may limit the assembly SCCR to only 10 kA, eliminate this weak link with these new, higher rated PDBs
- By replacing a low rated PDB with a new Cooper Bussmann high SCCR PDB, an assembly can achieve a higher SCCR for more installations flexibility
- Panel mounting
- 175/400 A class CC/G/J/T fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
PDB321-1 Standards
CE Certified|CSA Certified|IEC Certified|RoHS Compliant|UL 1953SKU #2251336Part Number #PDB321-1UNSPSC39121629UPC00051712637848
