PDB321-2

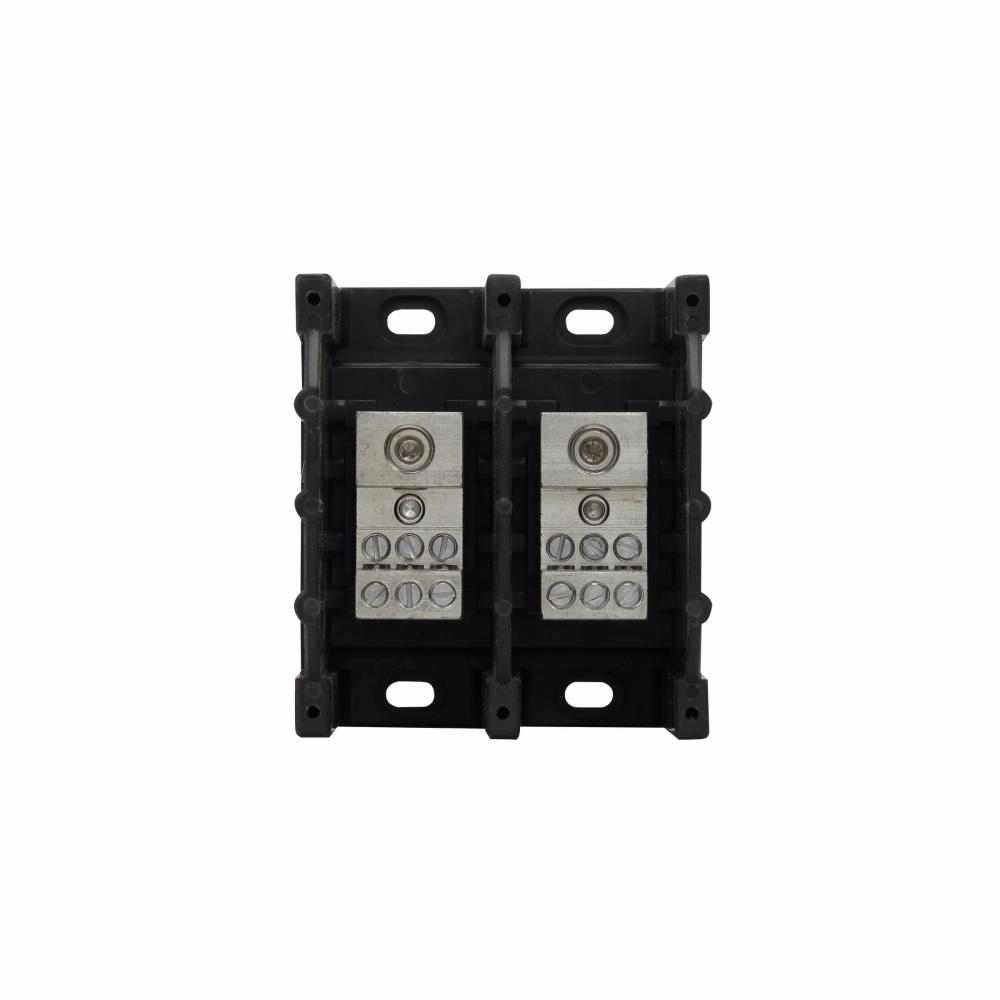

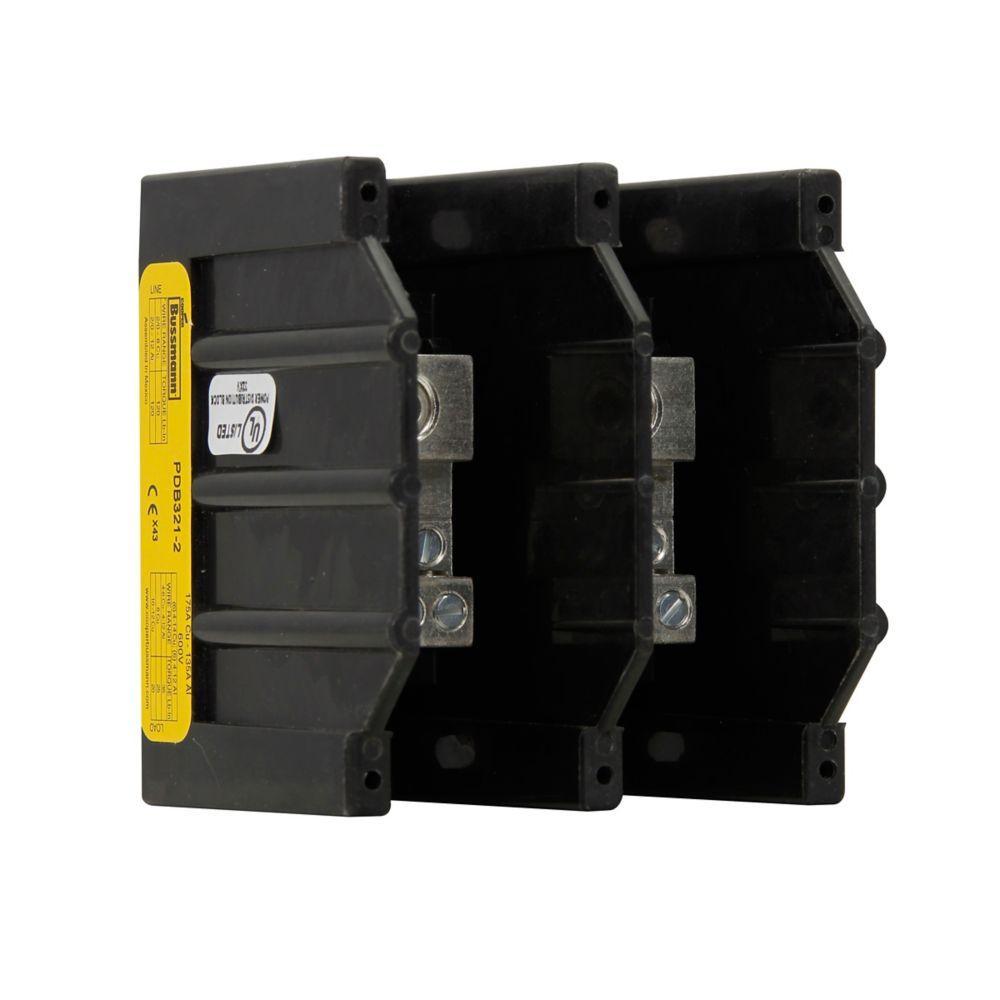

Bussmann PDB321-2 Power Terminal Block
Part Number # PDB321-2
SKU # 2249776
Bussmann PDB321-2 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | PDB321-2 |
| SKU #: | 2249776 |
| Amperage Rating: | 175, 175 A |
| Dimensions: | 4 in L x 3.58 in W x 3.32 in H |
| Finish: | Tin Plated |
| Fuse Type: | Class CC |
| Number of Poles: | 2 |
| Series: | PDB |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Type: | Barrier |
| Wire Size: | 8 to 2/0, 8 to 2/0 AWG Cu Line, (6) 14 to 4 AWG Cu Load |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712637855 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann PDB321-2 Power Terminal Block
Brand: Bussmann
Part Number: PDB321-2
Bussmann Power Distribution Block, Barrier, Series: PDB, 600 VAC/VDC, 175 A, 2 Pole, (1) Box Lug Primary Connections/Pole, (6) Box Lug Secondary Connection/Pole, 8 to 2/0 AWG Cu Line, (6) 14 to 4 AWG Cu Load Wire, Class CC Fuse, 200 kA Short Circuit Current, Aluminum, Tin Plated, Black, 4 in L x 3.58 in W x 3.32 in H
Additional Description: BUSS-PDB321-2 (N) POWER DISTRIBUTION BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, Two-pole, SCCR: 200 kA, Panel, Tin-plated aluminum connectors
PDB321-2 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs ApplicationsPDB321-2 Item Features
- PDBs are often an assemblys lowest rated component or features weak link and may limit the assembly SCCR to only 10 kA, eliminate this weak link with these new, higher rated PDBs
- By replacing a low rated PDB with a new Cooper Bussmann high SCCR PDB, an assembly can achieve a higher SCCR for more installations flexibility
- IP20 finger safe enclosure
- https://www.youtube.com/watch?v=YMvqUyoETXk
PDB321-2 Standards
Contact Manufacturer,RoHS Compliant,Contact factorySKU #2249776Part Number #PDB321-2UNSPSC39121629UPC00051712637855
