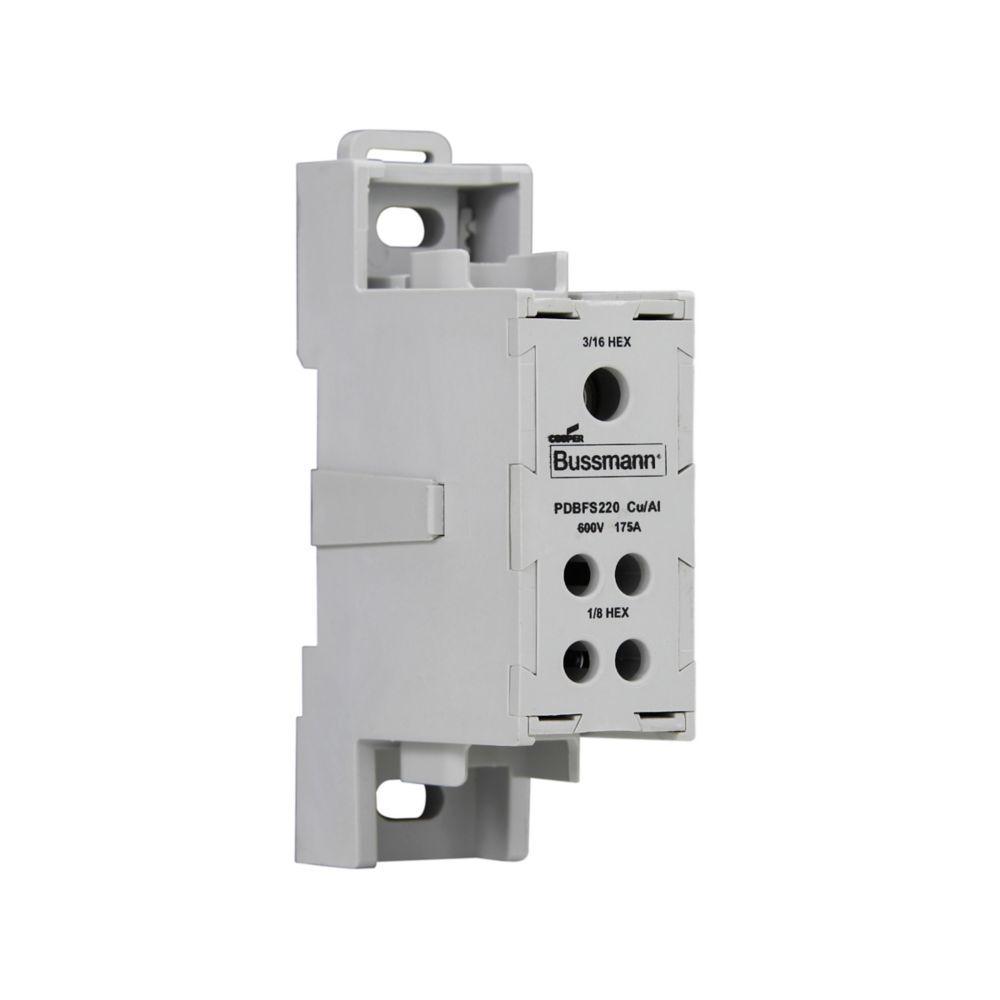

Bussmann PDBFS220 Power Distribution Block
Part Number # PDBFS220
SKU # 2149315
$182.37 / 3Each
Bussmann PDBFS220 Key Features
Brand: Bussmann
Part Number # PDBFS220
SKU #2149315
Amperage Rating: 175, 175 A
Dimensions: 3.372 in L x 1.03 in W x 2.146 in H
Finish: Tin Plated
Fuse Type: Class J/RK1/RK5/T
Number of Poles: 1
Series: PDBFS
Short Circuit Current Rating (kA): 200/100, 200/100 kA
Voltage Rating: 600, 600 VAC/VDC
Wire Size: 8 to 2/0 AWG Line, 12 to 4 AWG Load, 14 to 4 AWG, 8 to 2/0 AWG, 14 to 4 AWG, 12 to 4 AWG
Country of origin: MX
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712659826
$182.37 / 3Each
Bussmann PDBFS220 Power Distribution Block
Brand: Bussmann
Part Number: PDBFS220
Bussmann Power Distribution Block, Series: PDBFS, 600 VAC/VDC, 175 A, 1 Pole, 1 Primary Connections/Pole, 4 Secondary Connection/Pole, 8 to 2/0 AWG Line, 12 to 4 AWG Load, 14 to 4 AWG Wire, Class J/RK1/RK5/T Fuse, 200/100 kA Short Circuit Current, Aluminum, Tin Plated, 3.372 in L x 1.03 in W x 2.146 in H
Additional Description: BUSS-PDBFS220 PDB FINGER SAFE ASSEMBLY
Catalog Description: Eaton Bussmann series PDBFS power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, SCCR: 200 kA (12 To 4 AWG), 100 kA (14 To 4 AWG), DIN rail, panel, Tin-plated aluminum connectors
PDBFS220 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs ApplicationsPDBFS220 Item Features
- IP20 finger safe under specified conditions increases safety by isolating energized connections
- Wire ready captive termination screws cannot be misplaced and are shipped "backed out" to save time on conductor installations
- Sliding DIN rail latch provides easy block mounting
- For multiple pole applications, all single pole units can be gang mounted by using the interlocking dovetail pins that are pre-installed on the side of the blocks
- IP20 enclosure
- Copper/aluminum wire
- Elongated panel mounting holes provide greater flexibility and installations ease when matching up with drilled panel holes
- https://www.youtube.com/watch?v=YMvqUyoETXk
PDBFS220 Standards
CSA File No. 47235 Guide QPQS|IEC 60529|RoHS Compliant|UL 1953 File No. E256146SKU #2149315Part Number #PDBFS220UNSPSC39121629UPC00051712659826
