Part Number # PDBFS303
SKU # 2254790
Image provided may only be a representation of
final product and may include optional equipment
PDBFS303

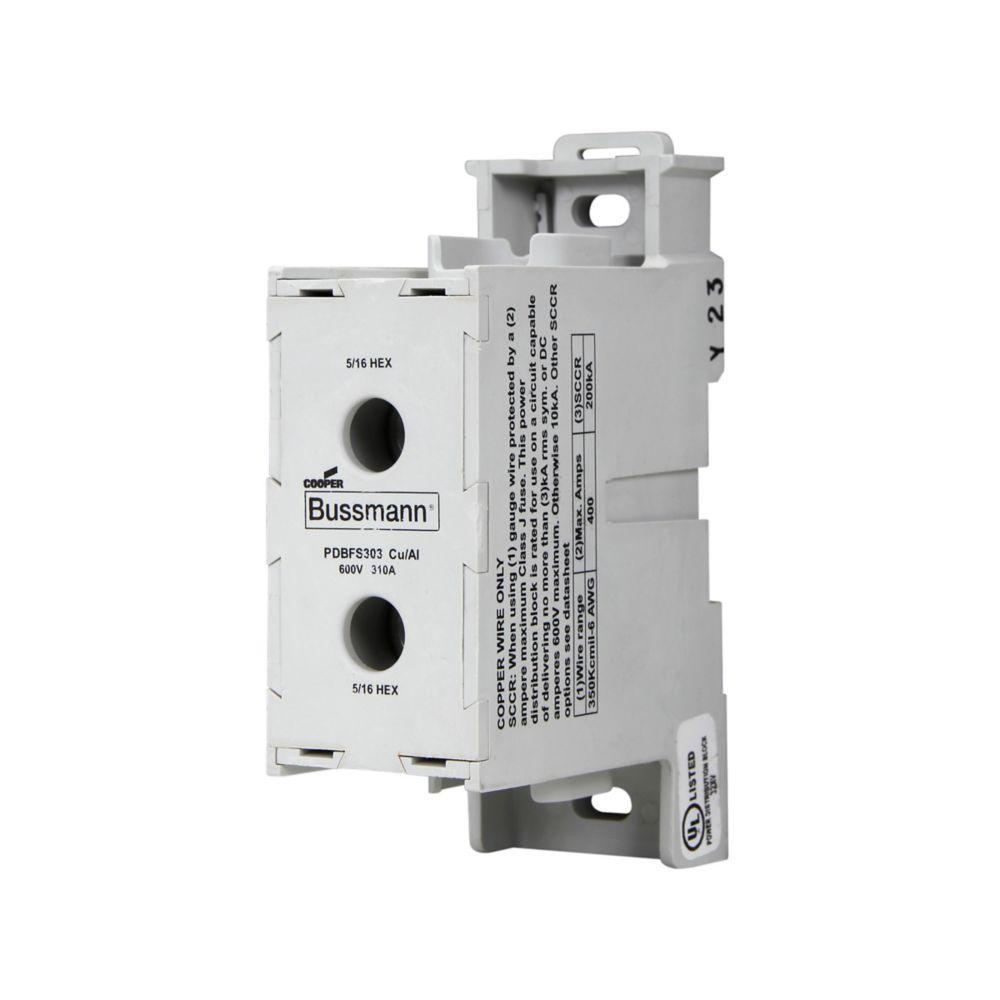

Bussmann PDBFS303 Power Distribution Block
Part Number # PDBFS303
SKU # 2254790
Bussmann PDBFS303 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | PDBFS303 |
| SKU #: | 2254790 |
| Amperage Rating: | 310 A |
| Dimensions: | 4.66 in L x 1.54 in W x 2.87 in H |
| Finish: | Tin Plated |
| Number of Poles: | 1 |
| Series: | PDBFS |
| Short Circuit Current Rating (kA): | 200 kA |
| Wire Size: | 6 AWG to 350 kcmil |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712659840 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann PDBFS303 Power Distribution Block
Brand: Bussmann
Part Number: PDBFS303
Bussmann Power Distribution Block, Series: PDBFS, 600 VAC/VDC, 310 A, 1 Pole, 6 AWG to 350 kcmil Wire, 200 kA Short Circuit Current Rating, Aluminum, Tin Plated, 4.66 in L x 1.54 in W x 2.87 in H
Additional Description: BUSS-PDBFS303 PDB FINGER SAFE ASSEMBLY
Catalog Description: Eaton Bussmann series PDBFS power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 310A, SCCR: 200 kA, DIN rail, panel, Tin-plated aluminum connectors
PDBFS303 Application
Electrical Assemblies, Panels and EOEMs ApplicationsPDBFS303 Item Features
- IP20 finger safe under specified conditions increases safety by isolating energized connections
- Wire ready captive termination screws cannot be misplaced and are shipped "backed out" to save time on conductor installation
- Sliding DIN rail latch provides easy block mounting
- For multiple pole applications, all single pole units can be gang mounted by using the interlocking dovetail pins that are pre-installed on the side of the blocks
- Elongated panel mounting holes provide greater flexibility and installation ease when matching up with drilled panel holes
- https://www.youtube.com/watch?v=YMvqUyoETXk
PDBFS303 Standards
CE Certified|CSA Certified|IEC Certified|RoHS Compliant|UL 1953SKU #2254790Part Number #PDBFS303UNSPSC39121629UPC00051712659840
