Part Number # PV-160A-01XL-B
SKU # 2377391
PV-160A-01XL-B

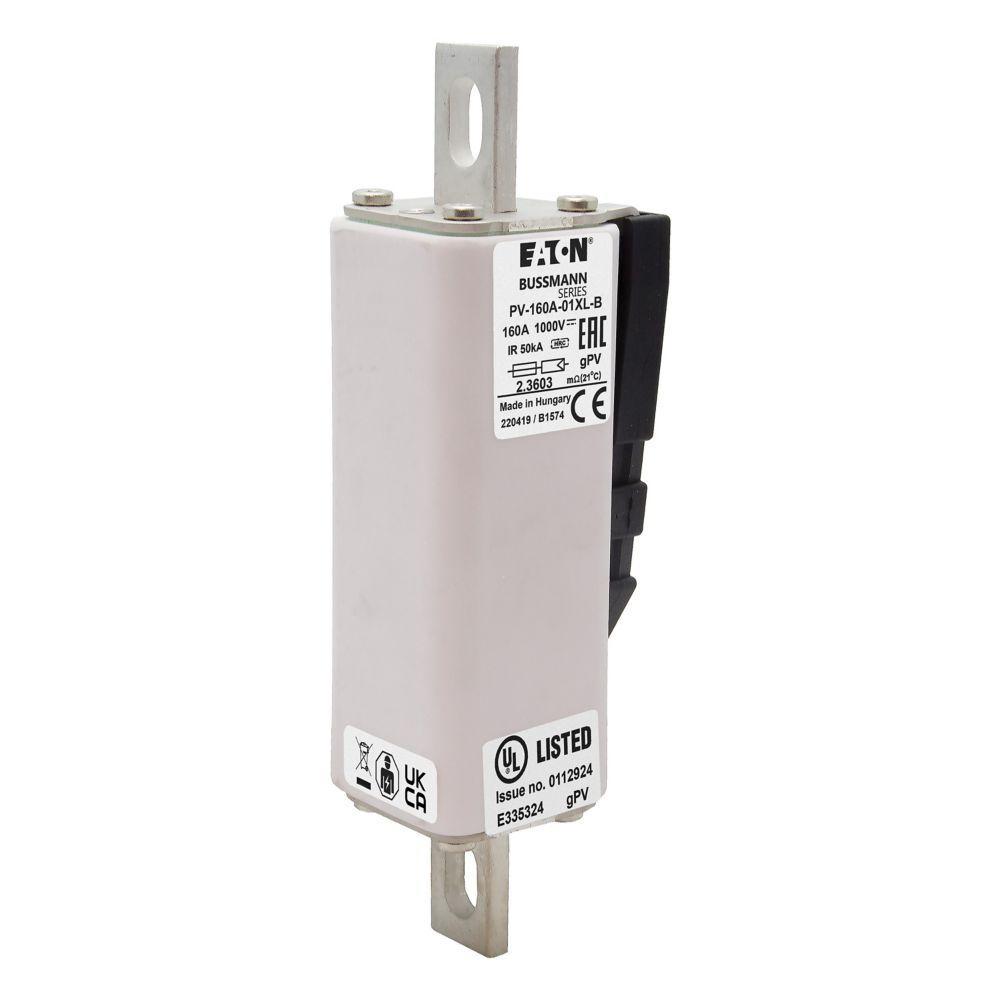

Bussmann PV-160A-01XL-B Photovoltaic Fuse
Part Number # PV-160A-01XL-B
SKU # 2377391
Bussmann PV-160A-01XL-B Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | PV-160A-01XL-B |
| SKU #: | 2377391 |
| Amperage Rating: | 160, 160 A |
| Body Type: | Square |
| Class: | gPV |
| Interrupt Rating: | 50, 50 kA |
| Response Time: | 1 to 3, 1 to 3 ms |
| Series: | PV Series |
| Type: | Size 01XL |
| Country of origin: | HU |
| Mounting type: | Bolt |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121626 |
| UPC: | 00051712371872 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann PV-160A-01XL-B Photovoltaic Fuse
Brand: Bussmann
Part Number: PV-160A-01XL-B
Bussmann Photovoltaic Fuse, Size 01XL, Series: PV Series, 160 A, 1000 VDC, 50 kA Interrupt, Class: gPV, 1 to 3 ms Response, Bolt Mount, Square Body Type, 187.6 mm L x 43 mm W x 58.3 mm H Body Size
Additional Description: BUSS-PV-160A-01XL-B (N) FUSE 160A 1000V 1 XL PV BOLT IN VER NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series Fuse-link, high speed, 160 A, DC 1000 V, 01XL, gPV, UL, IEC, bolted connection
PV-160A-01XL-B Application
Solar Panel Combiner Boxes and Array ProtectionPV-160A-01XL-B Item Features
- Global accreditations
- Meets the demand for greater capacity and efficiency
- Capable of interrupting low over currents associated with faulted PV strings
- Compatible with Eaton Bussmann series PV XL bases
- High DC voltage rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
PV-160A-01XL-B Standards
CSA Certified ,IEC 60269 ,UL Listed ,CSA Certified ,UL Listed ,IEC 60269 ,UL Listed ,CSA Certified ,IEC 60269 ,CSA gecertificeerd ,IEC 60269 ,UL geregistreerd ,IEC 60269 ,UL Listed ,CSA Certified,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Con marchio CE,Conforme a RoHS,CE-markering,RoHS-compliant,Uzyskano oznaczenie CE,Zgodny z wymogami RoHSSKU #2377391Part Number #PV-160A-01XL-BUNSPSC39121626UPC00051712371872
Image provided may only be a representation of final product and may include optional equipment
