Part Number # PVS-R-200
SKU # 2229928

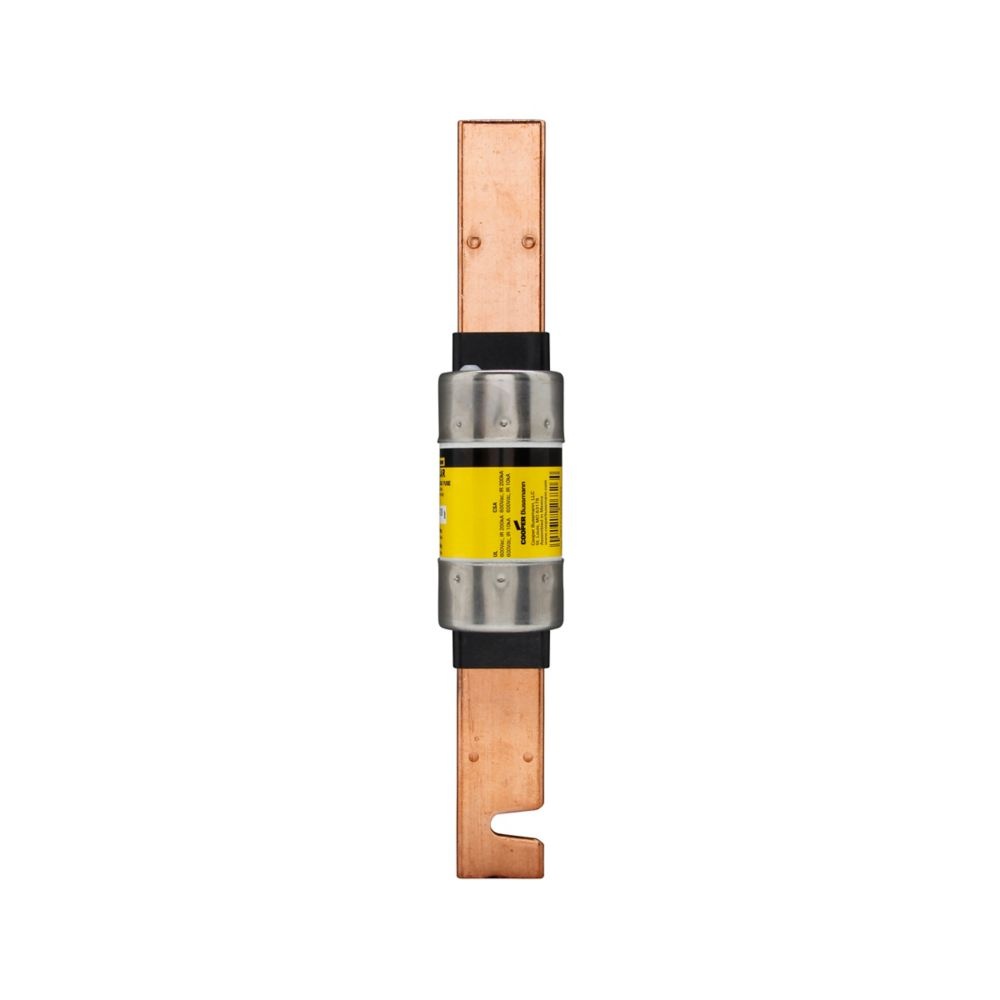

Image provided may only be a representation of
final product and may include optional equipment
PVS-R-200
Bussmann PVS-R-200 Fast Acting Fuse
Part Number # PVS-R-200
SKU # 2229928
Bussmann PVS-R-200 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | PVS-R-200 |
| SKU #: | 2229928 |
| Amperage Rating: | 200, 200 A |
| Body Type: | Cartridge, Cylindrical |
| Class: | RK5 |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 10/200, 10/200 kA, 200/10 |
| Rejection/Non-Rejection: | Rejection |
| Series: | PVS-R |
| Terminal Type: | Blade, Knife Blade |
| Type: | Branch Circuit Rated Current Limiting Low Voltage, Current Limiting |
| Country of origin: | MX |
| Material: | Fiberglass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121627 |
| UPC: | 00051712268264 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann PVS-R-200 Fast Acting Fuse
Brand: Bussmann
Part Number: PVS-R-200
Bussmann Limitron Fast Acting Fuse, Branch Circuit Rated Current Limiting Low Voltage, Series: PVS-R, Non-Indicating, Rejection, 200 A, 600 VAC/VDC, 10/200 kA Interrupt, Class: RK5, Blade Terminal, Holder Mount, Cylindrical Body, Single Element, Fiberglass, 1.84 in Dia x 9.63 in L Body Size
Additional Description: BUSS-PVS-R-200 (N) FA, RK-5 200 A 600 AC/DC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series PVS-R photovoltaic fuse, Fast-Acting Fuse, Current limiting, 200A, 600 Vac, 600 Vdc, 200 kAIC (RMS Symmetrical UL), 10 kAIC (DC) interrupt rating, RK5 class, Blade end X blade end connection, 1.84 in diameter
PVS-R-200 Application
Photovoltaic Systems, Recombiner Boxes, Solar DC Safety Switches and Inverters ApplicationsPVS-R-200 Item Features
- Current limitation for non-inductive circuits provides class RK5 current limiting response to ground fault and short circuit conditions
- Designed for the protection and isolation of photovoltaic systems
- A range of UL 2579 fast acting 600 VDC class RK5 fuses specifically designed to protect solar power systems in extreme ambient temperature, high cycling and low level fault current conditions (reverse current, multi-array fault)
- 200 kA RMS symmetrical UL, 10 kA DC interrupt rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
PVS-R-200 Standards
UL 248-12 Guide No. JFGA File No. E335324|Photovoltaic to UL 2579|CSA C22.2SKU #2229928Part Number #PVS-R-200UNSPSC39121627UPC00051712268264
