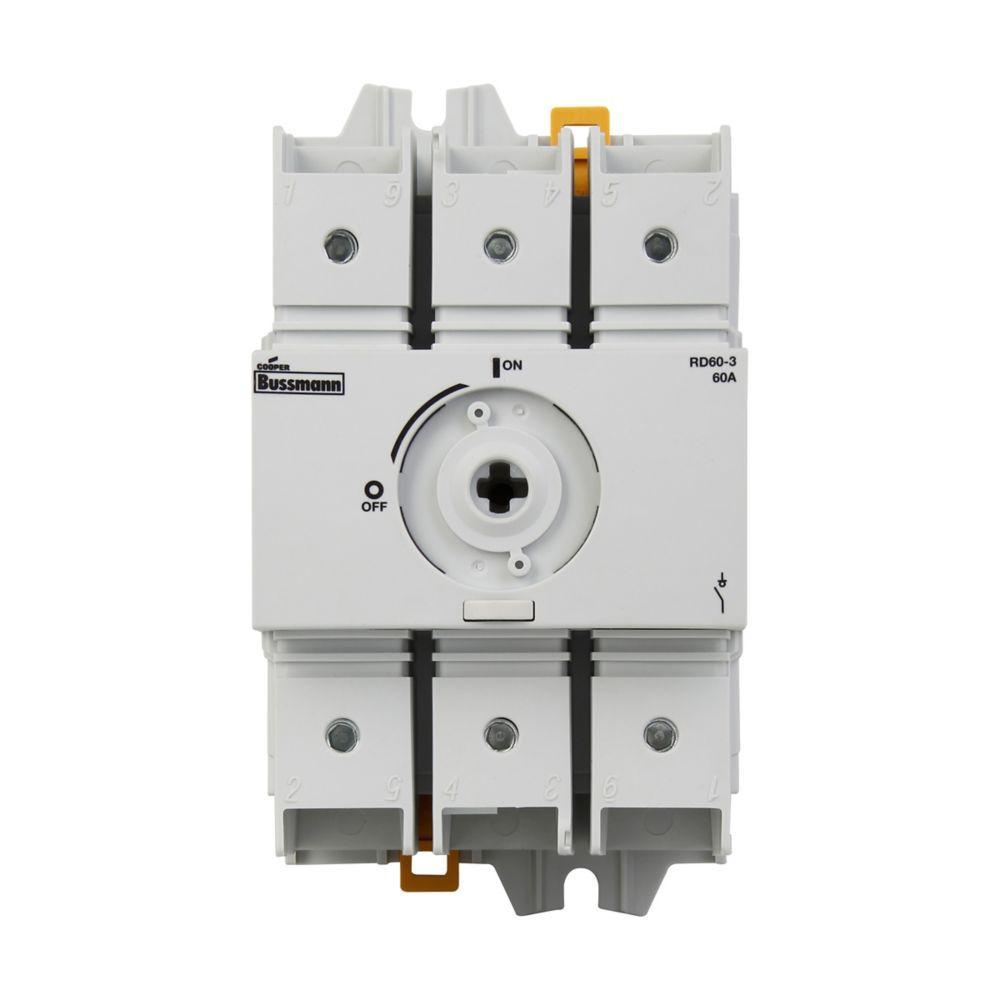

Bussmann RD60-3 Rotary Disconnect Switch
Part Number # RD60-3
SKU # 2307584
$214.29 / Each
Bussmann RD60-3 Key Features
Brand: Bussmann
Part Number # RD60-3
SKU #2307584
Actuator Type: Front/Side Handle, Rotary
Amperage Rating: 60 A
Dimensions: 10.1 in H x 7.09 in W x 3.72 in D, 5-1/2 in L x 3 in W x 5 in H
Horsepower: 50, 50 hp
Number of Poles: 3
Phase: 3, 3 ph
Series: RD Series
Short Circuit Current Rating (kA): 100, 100 kA
Temperature Rating (Degrees F): -20 to 70, -20 to 70 deg C
Terminal Type: Lug
Type: Compact Non-Fused, Compact Non-Fusible, Non-Fused
Voltage Rating: 600, 600 VAC
Mounting type: DIN Rail/Panel, Panel
Manufacturer Name: Eaton
UNSPSC: 39122205
UPC: 00051712402583
$214.29 / Each
Bussmann RD60-3 Rotary Disconnect Switch
Brand: Bussmann
Part Number: RD60-3
Bussmann Rotary Disconnect Switch, Compact Non-Fused, Series: RD, 600 VAC, 60 A, 50 hp, 3 ph, 3 Pole, 100 kA Short Circuit, Front/Side Handle Actuator, DIN Rail/Panel Mounting, -20 to 70 deg C, 5-1/2 in L x 3 in W x 5 in H Dimensions
Additional Description: BUSS-RD60-3 Switch 60A Non-F 3P UL98
Catalog Description: Eaton Bussmann series RD non-fused rotary disconnect switch, Compact switch, Front/side handle operation, 600V, 60A, Non-fused disconnect switch
RD60-3 Application
Stationary Machinery Equipment in Factory and Robotics ApplicationsRD60-3 Item Features
- Make and break power under load
- Disconnect switches are front, right side or direct handle operable
- Fingersafe design
- https://www.youtube.com/watch?v=YMvqUyoETXk
RD60-3 Standards
CE Marking|CSA C22.2 No. 4/257020|cULus Listed|IEC 60947-3|RoHS Compliant|UL 98 File No. E155130SKU #2307584Part Number #RD60-3UNSPSC39122205UPC00051712402583
