Part Number # RDF200J-3
SKU # 2270946
Image Disclaimers Message
RDF200J-3

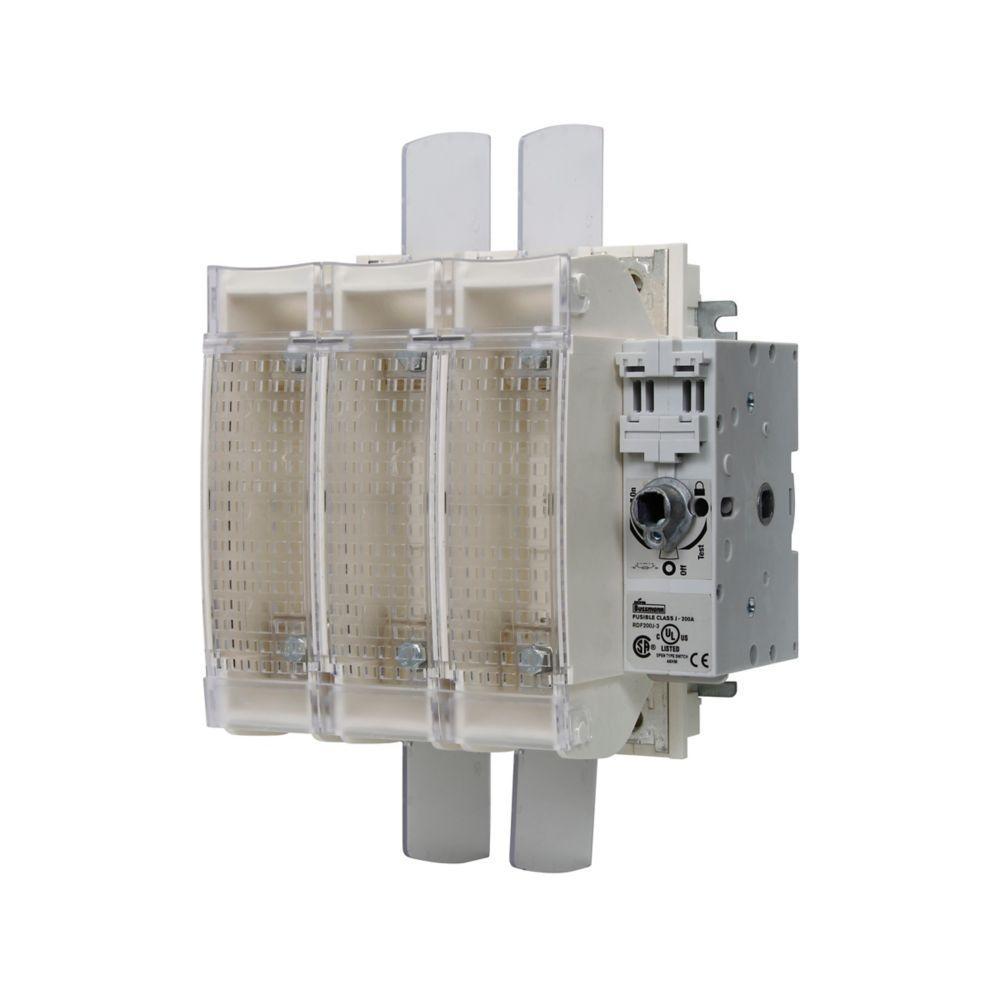

Bussmann RDF200J-3 Rotary Disconnect Switch
Part Number # RDF200J-3
SKU # 2270946
$1882.36 / Each
Typical price:$3827.77 / Each
Bussmann RDF200J-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | RDF200J-3 |
| SKU #: | 2270946 |
| Actuator Type: | Front/Side Handle, Rotary |
| Amperage Rating: | 200, 200 A |
| Dimensions: | 11-1/2 in H x 7-1/2 in W x 5 in D, 7-1/2 in L x 5 in W x 11-1/2 in H |
| Horsepower: | 150, 60 hp, 150 hp |
| Number of Poles: | 3 |
| Phase: | 3, 3 ph |
| Series: | RDF |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Temperature Rating (Degrees F): | -20 to 70, -20 to 70 deg C |
| Terminal Type: | Lug |
| Type: | Class J Fused Standard, Class J Fusible Standard, Fused |
| Mounting type: | Flange, Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122205 |
| UPC: | 00051712402675 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1882.36 / Each
Typical price:$3827.77 / Each
Quantity:
- Bussmann Rotary Disconnect Switch, Class J Fused Standard, Series: RDF, 600 V AC, 200 A, 60 hp, 150 hp, 3 ph, 3 Pole, 200 kA Short Circuit, Front/Side Handle Actuator, Flange Mounting, -20 to 70 deg C, 7-1/2 in L x 5 in W x 11-1/2 in H Dimensions
RDF200J-3 Application
Stationary Machinery Equipment in Factory and Robotics ApplicationsRDF200J-3 Item Features
- Make and break power under load
- Double break by pole
- Fingersafe design covers
- Defeatable handles automatically re-latch when the panel door is closed
- Most disconnect switches are front, right side, flange or direct handle operable
- https://www.youtube.com/watch?v=YMvqUyoETXk
RDF200J-3 Standards
RoHS Compliant,Not ApplicableSKU #2270946Part Number #RDF200J-3UNSPSC39122205UPC00051712402675
