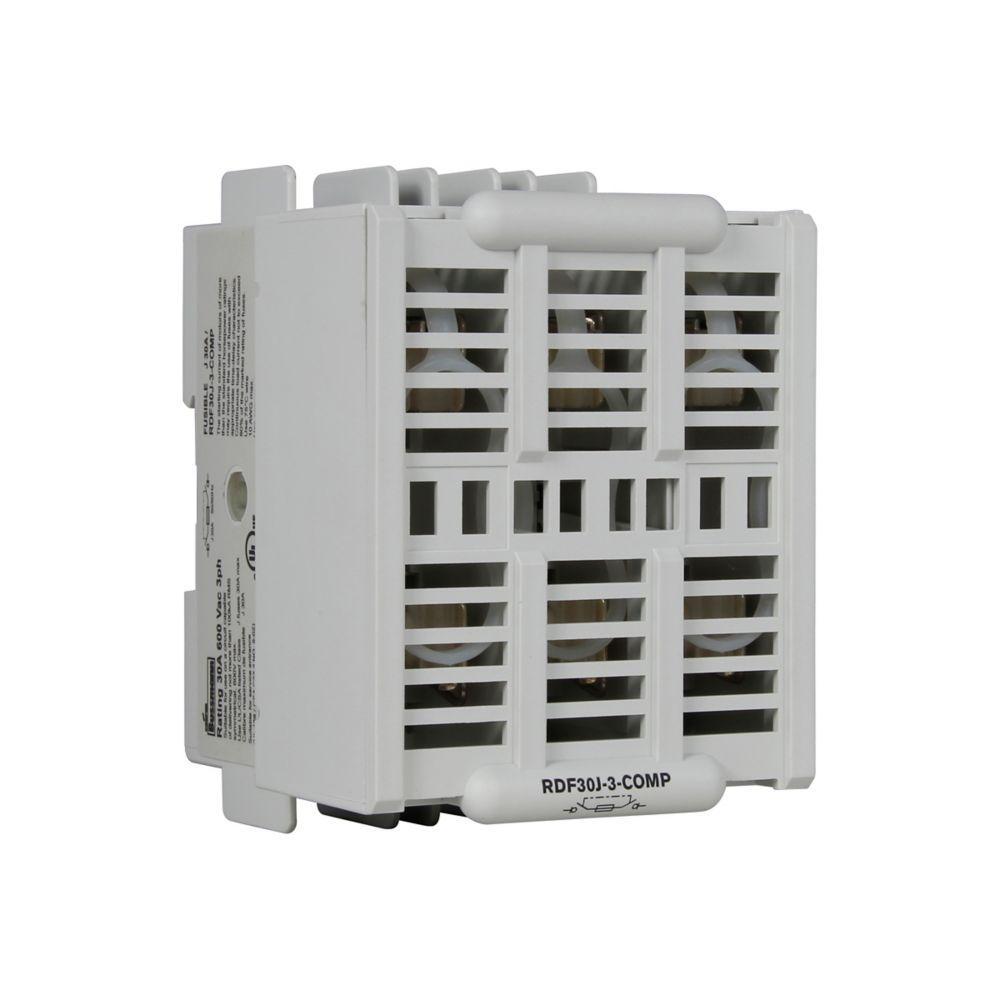

Bussmann RDF30J-3-COMP Disconnect Switch
Part Number # RDF30J-3-COMP
SKU # 2326627
$319.41 / Each
Bussmann RDF30J-3-COMP Key Features
Brand: Bussmann
Part Number # RDF30J-3-COMP
SKU #2326627
Actuator Type: Front Handle, Rotary
Amperage Rating: 30, 30 A
Dimensions: 3 in H x 4-1/2 in W x 3 in D, 4-1/2 in L x 3 in W x 3 in H
Horsepower: 20, 30 hp, 75 hp, 20 hp, 75
Number of Poles: 3
Phase: 3, 3 ph
Series: RDF
Short Circuit Current Rating (kA): 100, 100 kA
Temperature Rating (Degrees F): -20 to 70, -20 to 70 deg C
Terminal Type: Lug
Type: Class J Fusible Compact, Compact Class J Fused, Fused
Voltage Rating: 600, 600 VAC
Country of origin: FR
Mounting type: DIN Rail/Panel, Panel
Manufacturer Name: Eaton
UNSPSC: 39122205
UPC: 00051712402736
$319.41 / Each
Bussmann RDF30J-3-COMP Disconnect Switch
Brand: Bussmann
Part Number: RDF30J-3-COMP
Bussmann Rotary Disconnect Switch, Compact Class J Fused, Series: RDF, 600 VAC, 30 A, 30 hp, 75 hp, 20 hp, 3 ph, 3 Pole, 100 kA Short Circuit Current, Front Handle Actuator, DIN Rail/Panel Mount, -20 to 70 deg C, 4-1/2 in L x 3 in W x 3 in H
Additional Description: BUSS-RDF30J-3-COMP Switch 30A J 3P UL489
Catalog Description: Eaton Bussmann series RDF fused rotary disconnect switch, Compact switch, Front handle operation, Fuse class J, 600V, 30A, Fused disconnect switch - RDF30J-3-COMP
RDF30J-3-COMP Application
Stationary Machinery Equipment in Factory and Robotics ApplicationsRDF30J-3-COMP Item Features
- Make and break power under load
- Double break by pole
- Fingersafe design covers
- Defeatable handles automatically re-latch when the panel door is closed
- Most disconnect switches are front, right side, flange or direct handle operable
- https://www.youtube.com/watch?v=YMvqUyoETXk
RDF30J-3-COMP Standards
CE Marking|CSA C22.2 No. 4/257020|cULus Listed|IEC 60947-3|NFPA 79|RoHS Compliant|UL 98/489 File No. E155130/E359801SKU #2326627Part Number #RDF30J-3-COMPUNSPSC39122205UPC00051712402736
