Brand: Bussmann

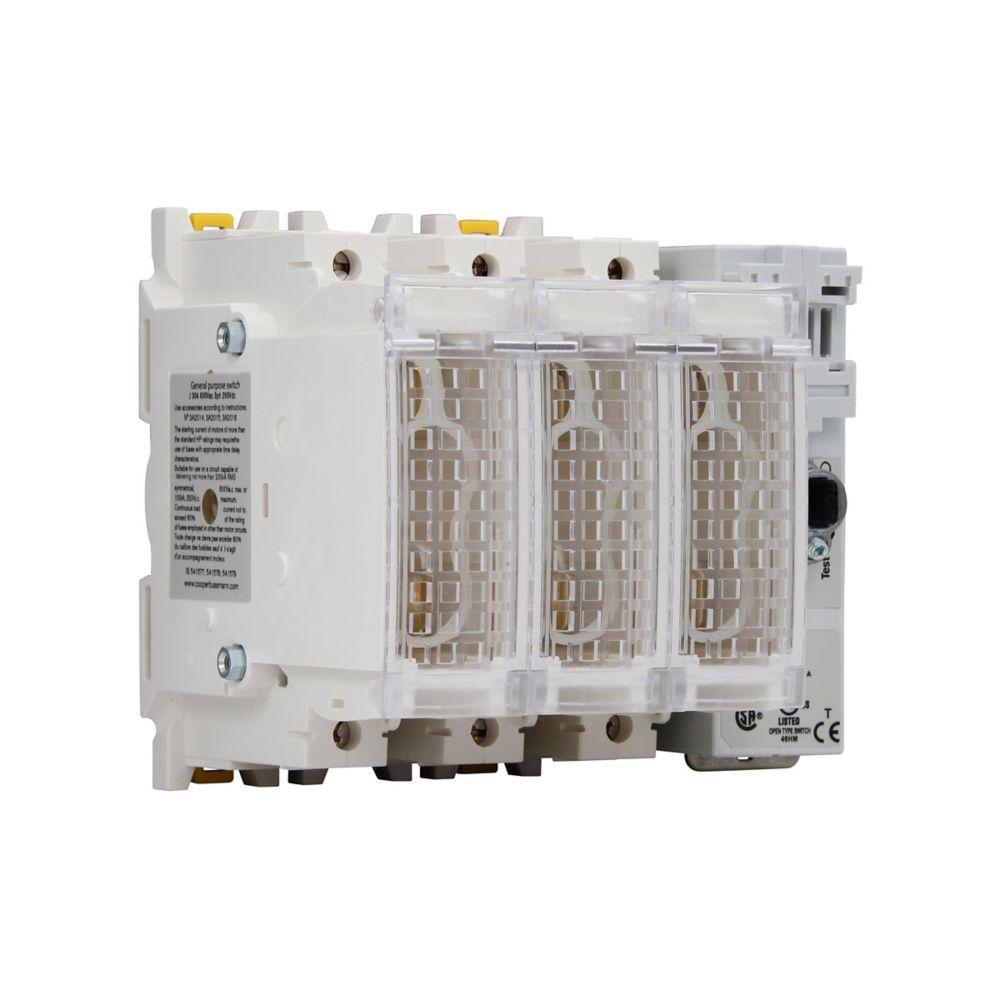

Bussmann RDF30J-3 Rotary Disconnect Switch
Part Number # RDF30J-3
SKU # 2294381
$409.57 / Each
Bussmann RDF30J-3 Key Features
Brand: Bussmann
Part Number # RDF30J-3
SKU #2294381
Actuator Type: Front/Side Handle, Rotary
Amperage Rating: 30, 30 A
Dimensions: 5.36 in H x 5.71 in W x 4.14 in D, 5.71 in L x 4.14 in W x 5.36 in H
Horsepower: 20, 20 hp, 5 hp, 7-1/2 hp, 20 hp at 600 VAC, 5 hp at 250 VDC
Number of Poles: 3
Phase: 3, 3 ph
Series: RDF
Short Circuit Current Rating (kA): 200, 200 kA
Temperature Rating (Degrees F): -20 to 70, -20 to 70 deg C
Terminal Type: Lug
Type: Class J Fused Standard, Class J Fusible Standard, Fused
Voltage Rating: 600 VAC, 250 VDC, 600 VAC/250 VDC
Mounting type: DIN Rail/Panel, DIN Rail/Panel/Flange, Panel
Manufacturer Name: Eaton
UNSPSC: 39122205
UPC: 00051712402729
$409.57 / Each
Bussmann RDF30J-3 Rotary Disconnect Switch
Brand: Bussmann
Part Number: RDF30J-3
Bussmann Rotary Disconnect Switch, Class J Fused Standard, Series: RDF, 600 VAC, 250 VDC, 30 A, 7-1/2 hp, 20 hp at 600 VAC, 5 hp at 250 VDC, 3 ph, 3 Pole, 200 kA Short Circuit, Front/Side Handle Actuator, DIN Rail/Panel/Flange Mounting, -20 to 70 deg C, 5.71 in L x 4.14 in W x 5.36 in H Dimensions
Additional Description: BUSS-RDF30J-3 Switch 30A J 3P UL98
Catalog Description: Eaton Bussmann series RDF fused rotary disconnect switch, Standard switch, Front/side handle operation, Flange, 600 Vac, 250 Vdc, 30A, Fused disconnect switch - RDF30J-3
RDF30J-3 Application
Stationary Machinery Equipment in Factory and Robotics ApplicationsRDF30J-3 Item Features
- Make and break power under load
- Double break by pole
- Fingersafe design covers
- Defeatable handles automatically re-latch when the panel door is closed
- Most disconnect switches are front, right side, flange or direct handle operable
- https://www.youtube.com/watch?v=YMvqUyoETXk
RDF30J-3 Standards
CE Marking|CSA C22.2 No. 4/257020|cULus Listed|IEC 60947-3|NFPA 79|RoHS Compliant|UL 98/489 File No. E155130/E359801SKU #2294381Part Number #RDF30J-3UNSPSC39122205UPC00051712402729
