Part Number # RDF60J-3-COMP
SKU # 2314410
Image Disclaimers Message
RDF60J-3-COMP

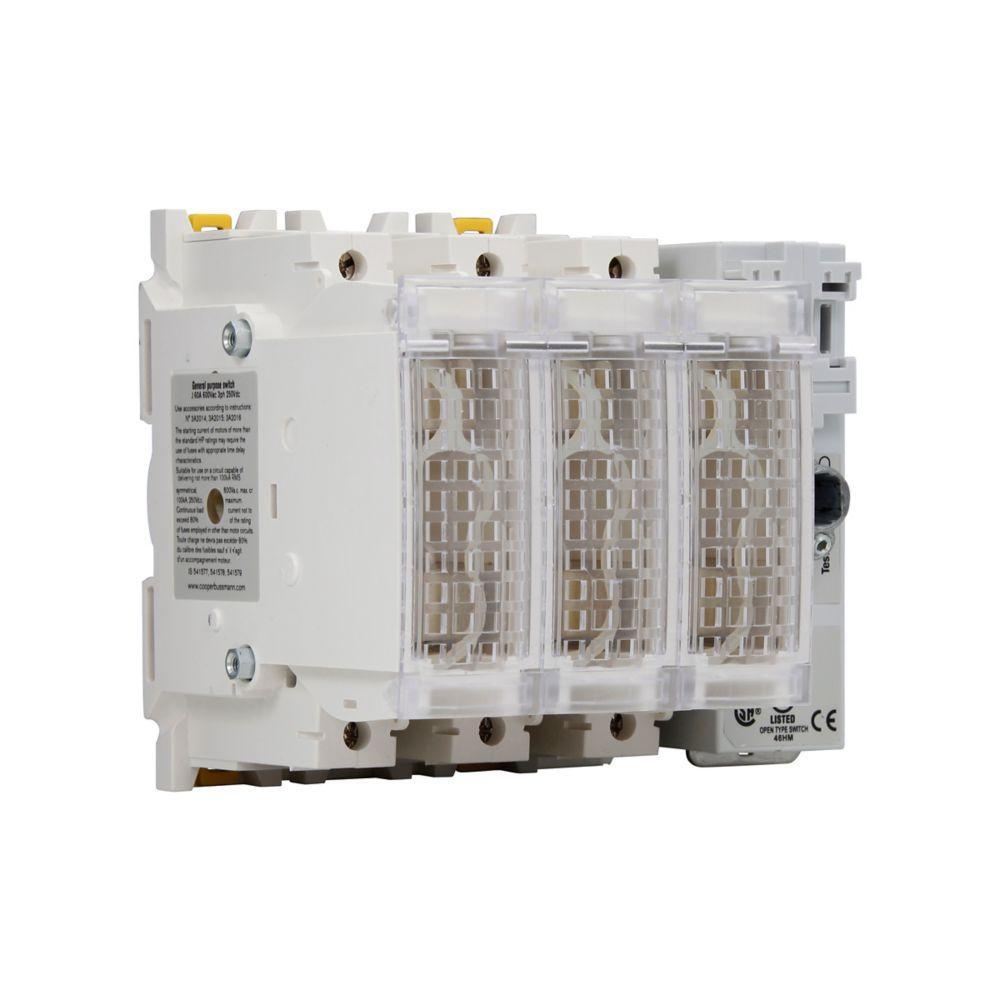

Bussmann RDF60J-3-COMP Open Rotary Disconnect Switch
Part Number # RDF60J-3-COMP
SKU # 2314410
$419.51 / Each
Typical price:$853.08 / Each
Bussmann RDF60J-3-COMP Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | RDF60J-3-COMP |
| SKU #: | 2314410 |
| Actuator Type: | Front/Side Handle, Rotary Handle |
| Amperage Rating: | 60 A |
| Contact Form: | 1NO-1NC, 1NO-1NC 1 Form A/1 Form B, 1NO/1NC |
| Dimensions: | 5.67 in L x 4.73 in W x 5.35 in H |
| Horsepower: | 15 hp at 220/240 VAC, 30 hp at 440/480 VAC, 50 hp at 600 VAC, 5 hp at 125 VDC, 10 hp at 250 VDC, 15 hp at 220/240 VAC/30 hp at 440/480 VAC/50 hp at 600 VAC/5 hp at 125 VDC/10 hp at 250 VDC, 50 |
| Number of Poles: | 3 |
| Phase: | 1/3, 1/3 ph |
| Series: | RDF |
| Short Circuit Current Rating (kA): | 100, 100 kA |
| Temperature Rating (Degrees F): | -20 to 70, -20 to 70 deg C |
| Type: | Class J Compact Fused, Class J Compact Fused Open Rotary, Compact Class J Fused |
| Mounting type: | Flange |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122205 |
| UPC: | 00051712402859 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$419.51 / Each
Typical price:$853.08 / Each
Quantity:
- Bussmann Open Rotary Disconnect Switch, Compact Class J Fused, Series: RDF, 600 V AC/250 V DC, 60 A, 15 hp at 220/240 VAC, 30 hp at 440/480 VAC, 50 hp at 600 VAC, 5 hp at 125 VDC, 10 hp at 250 VDC, 1/3 ph, 3 Pole, 100 kA Short Circuit, 1NO-1NC 1 Form A/1 Form B Contact Form, Front/Side Handle Actuator, Flange Mounting, -20 to 70 deg C, 5.67 in L x 4.73 in W x 5.35 in H Dimensions
RDF60J-3-COMP Application
General Purpose, Main Disconnect, Branch Circuit Protection, Service Entrance, Stationary Machinery Equipment in Factory and Robotics ApplicationsRDF60J-3-COMP Item Features
- Most disconnect switches can be operated with a front, side, flange or direct mount handle mechanisms for increased flexibility and reduced inventory
- Easy to install modular accessories make it simple to configure each disconnect switch for the desired application
- Lockout/tagout up to three 1/4 in padlocks on external handles, most disconnect switches also provide an on-switch lockout point for additional flexibility
- Fingersafe with terminal shroud accessories
- Endurance tested at or beyond the stringent levels of the UL standards to ensure durability
- https://www.youtube.com/watch?v=YMvqUyoETXk
RDF60J-3-COMP Standards
Not Applicable,RoHS CompliantSKU #2314410Part Number #RDF60J-3-COMPUNSPSC39122205UPC00051712402859
