Brand: Bussmann
RDF60J-3

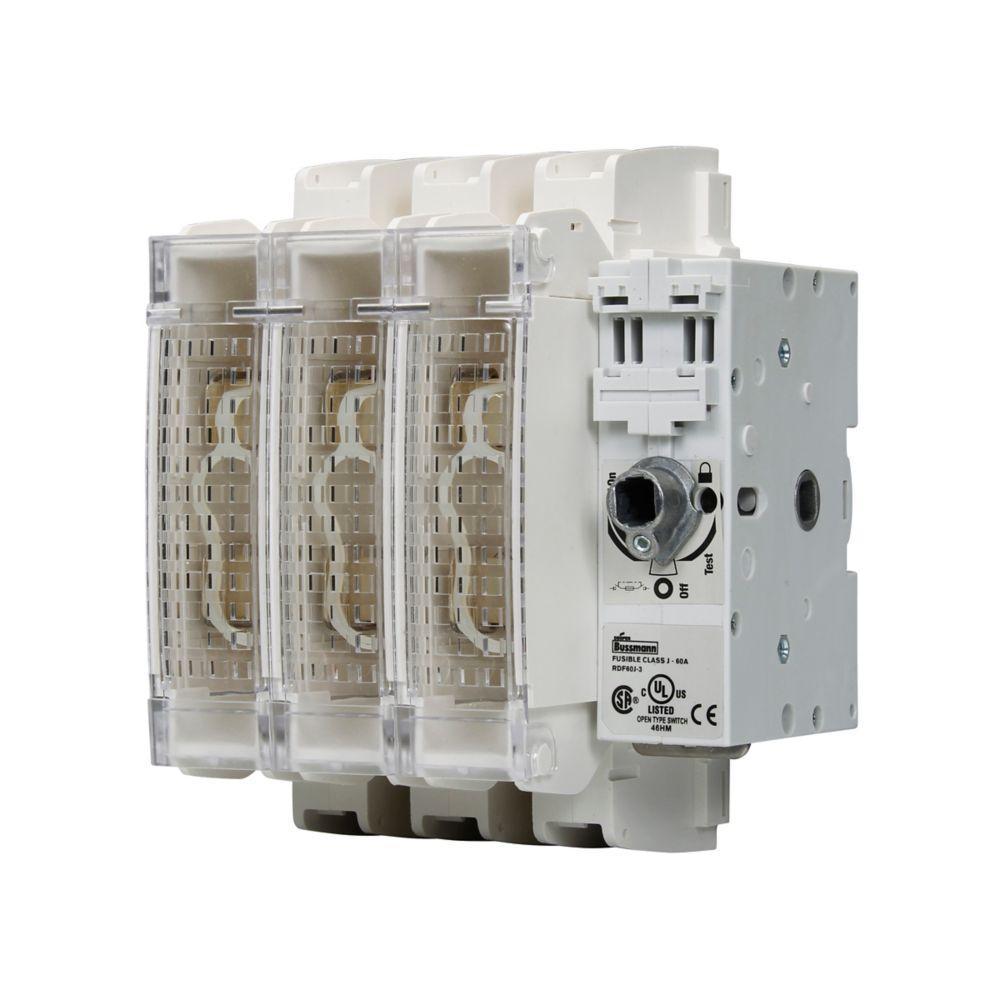

Bussmann RDF60J-3 Rotary Disconnect Switch
Part Number # RDF60J-3
SKU # 2265694
$537.46 / Each
Typical price:$1092.92 / Each
Bussmann RDF60J-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | RDF60J-3 |
| SKU #: | 2265694 |
| Actuator Type: | Front/Side Handle, Rotary |
| Amperage Rating: | 60 A |
| Dimensions: | 5.75 in L x 4.5 in W x 7.1 in H, 7.1 in H x 5-3/4 in W x 4-1/2 in D |
| Horsepower: | 15 hp, 50 hp at 600 VAC, 10 hp at 250 VDC, 50, 50 hp, 10 hp |
| Number of Poles: | 3 |
| Phase: | 3, 3 ph |
| Series: | RDF |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Temperature Rating (Degrees F): | -20 to 70, -20 to 70 deg C |
| Terminal Type: | Lug |
| Type: | Class J Fused Standard, Class J Fusible Standard, Fused |
| Mounting type: | DIN Rail/Panel, DIN Rail/Panel/Flange, Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122205 |
| UPC: | 00051712402842 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$537.46 / Each
Typical price:$1092.92 / Each
Quantity:
- Bussmann Rotary Disconnect Switch, Class J Fused Standard, Series: RDF, 600 V AC/250 V DC, 60 A, 15 hp, 50 hp at 600 VAC, 10 hp at 250 VDC, 3 ph, 3 Pole, 200 kA Short Circuit, Front/Side Handle Actuator, DIN Rail/Panel/Flange Mounting, -20 to 70 deg C, 5.75 in L x 4.5 in W x 7.1 in H Dimensions
RDF60J-3 Application
Stationary Machinery Equipment in Factory and Robotics ApplicationsRDF60J-3 Item Features
- Make and break power under load
- Double break by pole
- Fingersafe design covers
- Defeatable handles automatically re-latch when the panel door is closed
- Most disconnect switches are front, right side, flange or direct handle operable
- https://www.youtube.com/watch?v=YMvqUyoETXk
RDF60J-3 Standards
CE Marking|CSA C22.2 No. 4/257020|cULus Listed|IEC 60947-3|NFPA 79|RoHS Compliant|UL 98/489 File No. E155130/E359801SKU #2265694Part Number #RDF60J-3UNSPSC39122205UPC00051712402842
