RM25060-1CR

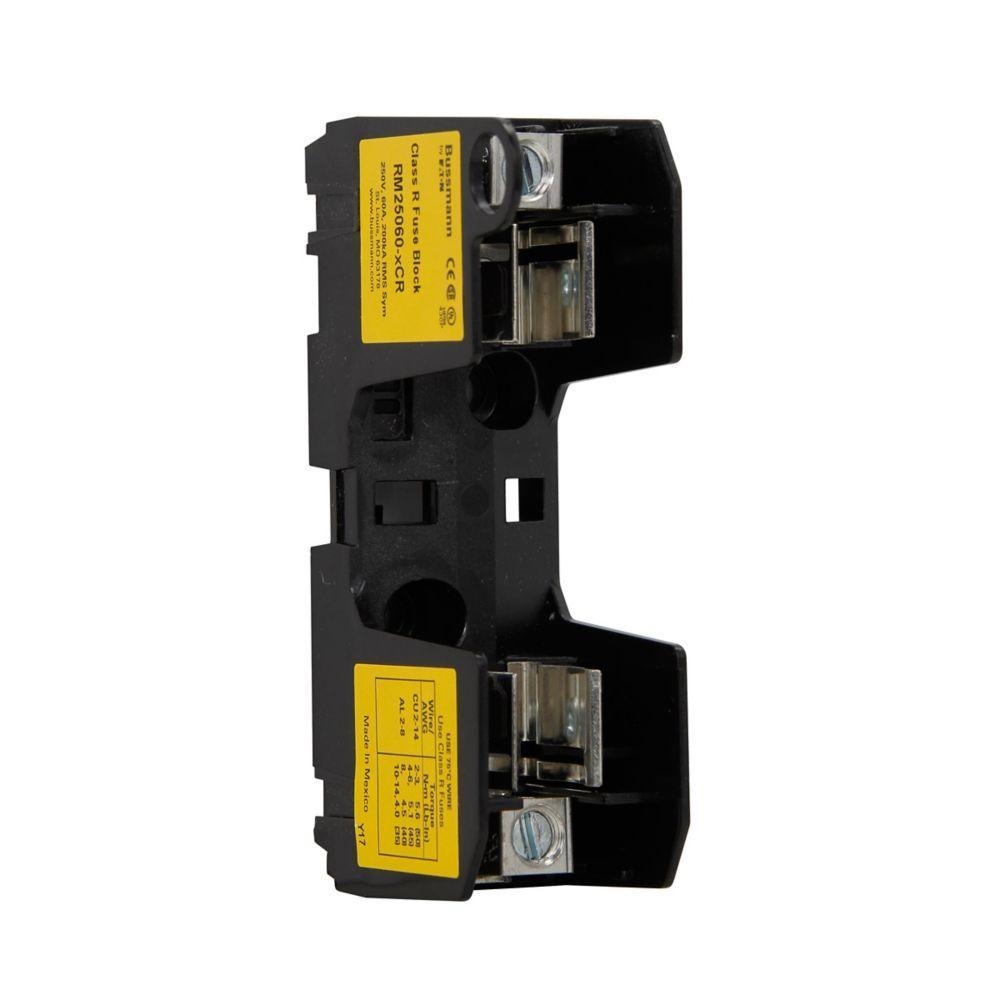

Bussmann RM25060-1CR Fuse Block
Part Number # RM25060-1CR
SKU # 2310786
$648.72 / 12Each
Typical price:$1319.16 / Each
Bussmann RM25060-1CR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | RM25060-1CR |
| SKU #: | 2310786 |
| Amperage Rating: | 35 to 60 A |
| Class: | R |
| Dimensions: | 4.2 in L x 1.4 in W x 2.3 in H |
| Fuse Diameter: | 0.81, 0.81 in |
| Fuse Length: | 3, 3 in |
| Number of Poles: | 1 |
| Series: | RM Series, RM250 |
| Suitable For Use With: | Low-Peak LPN Series Time Delay, Limitron KTN-R Series Fast Acting, Fusetron FRN Series Time Delay Ferrule Fuse, Low-Peak™ LPN Series Time Delay, Limitron™ KTN-R Series Fast Acting, Fusetron™ FRN Series Time Delay Ferrule Fuse, Low-Peak™ LPN Time Delay, Limitron™ KTN-R Fast Acting, Fusetron™ FRN Time Delay Ferrule Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Modular, Modular Knife Blade |
| Wire Size: | 14 to 2 AWG Cu, 8 to 2 AWG Al, 14 to 2 AWG, 8 to 2 AWG |
| Connection type: | Box Lug/Slot Screw |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712511360 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$648.72 / 12Each
Typical price:$1319.16 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 35 to 60 A, 1 Pole, Class: R, Fuse Holder Code: K, Box Lug/Slot Screw, 14 to 2 AWG Cu, 8 to 2 AWG Al Wire, DIN Rail/Panel Mount, 3 in Fuse Length, 0.81 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak LPN Series Time Delay, Limitron KTN-R Series Fast Acting, Fusetron FRN Series Time Delay Ferrule Fuse, Thermoplastic, 4.2 in L x 1.4 in W x 2.3 in H
RM25060-1CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsRM25060-1CR Item Features
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Save panel space with the smallest width dimension on the market
- Easy circuit identification with available universal marker labels for blocks and covers
- https://www.youtube.com/watch?v=YMvqUyoETXk
RM25060-1CR Standards
CE Certified|CSA File No.47235|REACH Compliant|RoHS Compliant|UL File No.E14853 Guide IZLTSKU #2310786Part Number #RM25060-1CRUNSPSC39121629UPC00051712511360
