Part Number # RM25100-3CR
SKU # 2358015
Image Disclaimers Message
Brand: Bussmann
RM25100-3CR

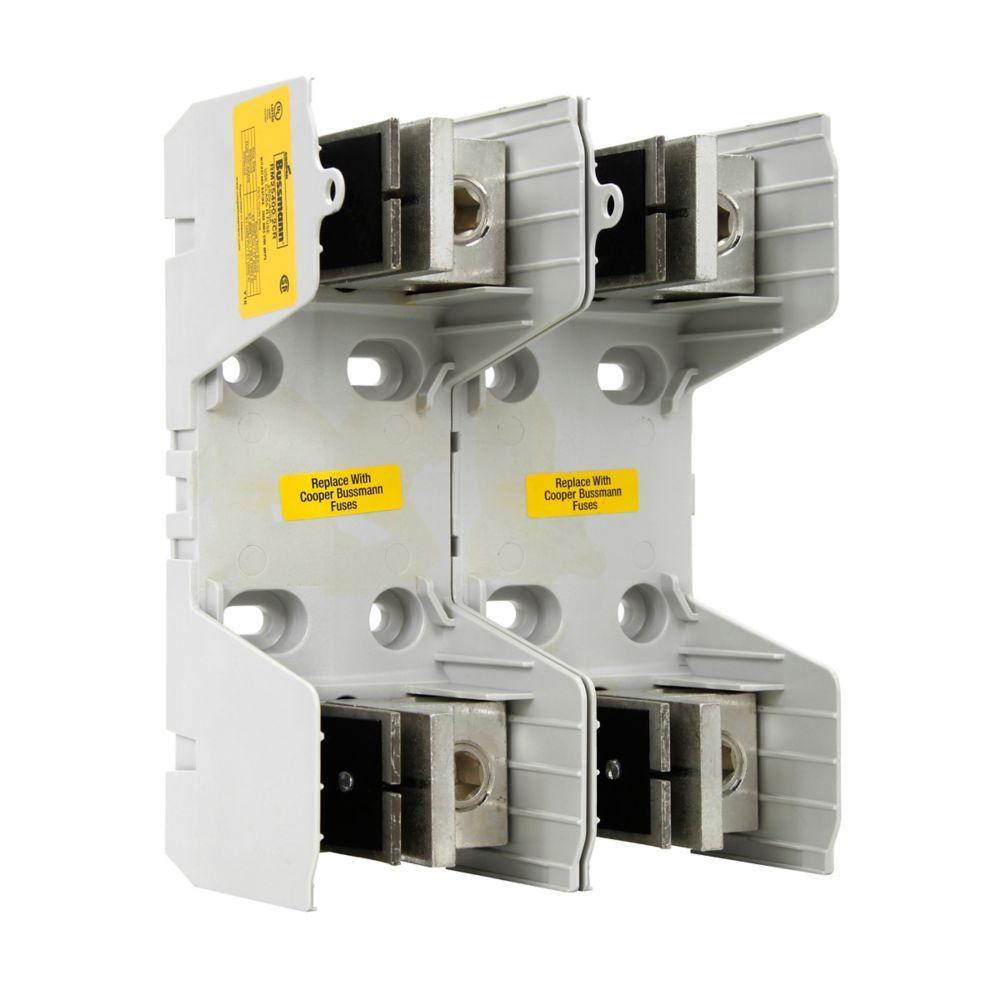

Bussmann RM25100-3CR Fuse Block
Part Number # RM25100-3CR
SKU # 2358015
$538.74 / 2Each
Typical price:$1095.54 / Each
Bussmann RM25100-3CR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | RM25100-3CR |
| SKU #: | 2358015 |
| Amperage Rating: | 100, 70 to 100, 70 to 100 A |
| Class: | R |
| Dimensions: | 6 in L x 6 in W x 2.8 in H, 7.2 in L x 6 in W x 2.8 in H |
| Fuse Diameter: | 1.06/1.16 |
| Fuse Length: | 5.88 |
| Number of Poles: | 3 |
| Series: | RM Series, RM250 |
| Suitable For Use With: | Knife Blade Cartridge Fuse, Low-Peak™ LPN-RK-SP and LPN-RK-SPI, Fusetron™ FRN-R, Limitron™ KTN-R Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Modular, Modular Knife Blade |
| Wire Size: | 1 to 3 AWG, 4 to 6 AWG, 8 AWG, 1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG Cu, 8 AWG, (2) 10 to 14 AWG Cu, 10 to 14 AWG Cu, 10 to 12 AWG Al Solid/Stranded, 14 to 1/0 |
| Connection type: | Box Lug, Knife Blade End |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | Hole, Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712391207 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$538.74 / 2Each
Typical price:$1095.54 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 70 to 100 A, 3 Pole, Class: R, Knife Blade End, 1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG Cu, 8 AWG, (2) 10 to 14 AWG Cu, 10 to 14 AWG Cu, 10 to 12 AWG Al Solid/Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 6 in L x 6 in W x 2.8 in H
RM25100-3CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsRM25100-3CR Item Features
- Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial power circuits
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
- Standard fuse clip reinforcing springs enhance electrical contact
- https://www.youtube.com/watch?v=YMvqUyoETXk
RM25100-3CR Standards
CSA Certified|cULus File No.E14853|RoHS Compliant|UL 94-V-0 Flammability RatingSKU #2358015Part Number #RM25100-3CRUNSPSC39121629UPC00051712391207
