RM25200-2CR

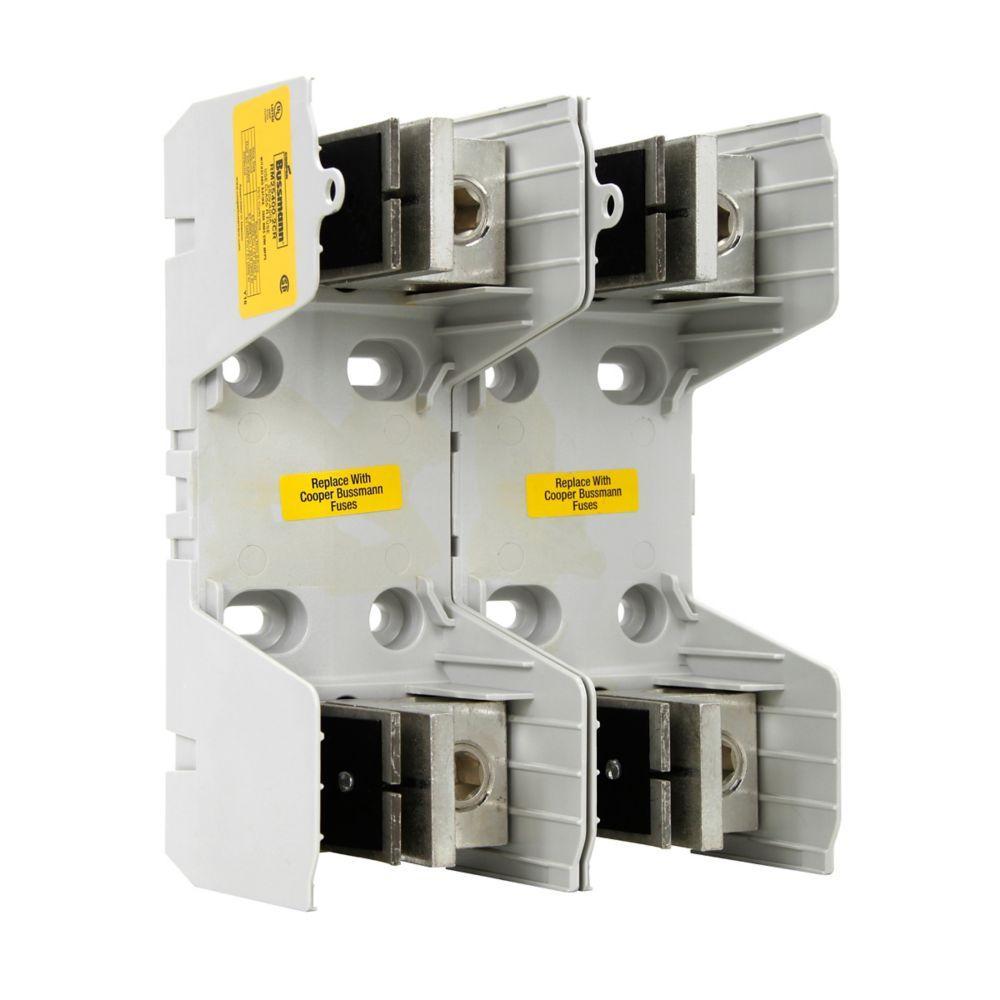

Bussmann RM25200-2CR Fuse Block
Part Number # RM25200-2CR
SKU # 2297948
$442.37 / Each
Typical price:$899.56 / Each
Bussmann RM25200-2CR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | RM25200-2CR |
| SKU #: | 2297948 |
| Amperage Rating: | 110 to 200, 110 to 200 A, 200 |
| Class: | R |
| Dimensions: | 7.3 in L x 5.3 in W x 3.8 in H, 8.7 in L x 5.3 in W x 3.8 in H |
| Number of Poles: | 2 |
| Series: | RM Series |
| Suitable For Use With: | Knife Blade Cartridge Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Knife Blade, Modular |
| Wire Size: | 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded, 1 to 3/0 AWG, 6 to 2 AWG, 1 AWG to 200 kcmil |
| Connection type: | Box Lug, Knife Blade End |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | Hole |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712387347 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$442.37 / Each
Typical price:$899.56 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 110 to 200 A, 2 Pole, Class: R, Knife Blade End, 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 7.3 in L x 5.3 in W x 3.8 in H
RM25200-2CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsRM25200-2CR Item Features
- Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial power circuits
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
- Standard fuse clip reinforcing springs enhance electrical contact
- https://www.youtube.com/watch?v=YMvqUyoETXk
RM25200-2CR Standards
CSA Certified|cULus File No.E14853|RoHS Compliant|UL 94-V-0 Flammability RatingSKU #2297948Part Number #RM25200-2CRUNSPSC39121629UPC00051712387347
