- Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial power circuits
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
- Standard fuse clip reinforcing springs enhance electrical contact
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 110 to 200, 110 to 200 A
Class: R
Dimensions: 7.3 in L x 7.9 in W x 3.8 in H
Number of Poles: 3
Series: RM Series
Suitable For Use With: Knife Blade Cartridge Fuse
Temperature Rating (Degrees F): -40 to 120, -40 to 120 deg C
Type: Modular
Voltage Rating: 250, 250 V
Wire Size: 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded
Connection type: Knife Blade End
Country of origin: MX
Material: Thermoplastic
Mounting type: Hole
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712387354

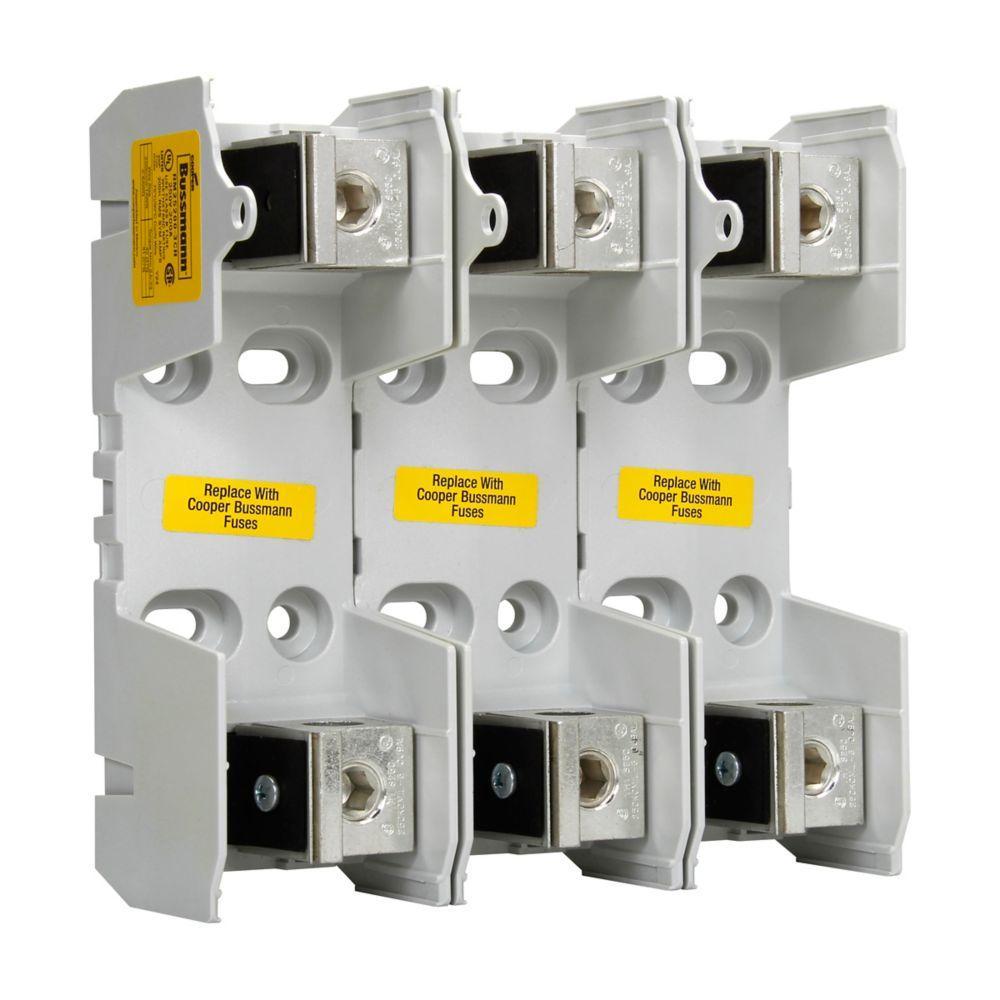

Bussmann RM25200-3CR Fuse Block
Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 110 to 200 A, 3 Pole, Class: R, Knife Blade End, 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 7.3 in L x 7.9 in W x 3.8 in H
Additional Description: BUSS-RM25200-3CR 200 amp class R fuse holder 250V 3 pole 3 pol
Catalog Description: Eaton Bussmann Series RM modular fuse block, CR, 110-200 A, Three-pole, Class R, Knife blade end x knife blade end, 250 V
Item FeaturesElectrical Assemblies, Panels and EOEMs Applications
Item Features
Item FeaturesCSA Certified|cULus File No.E14853|RoHS Compliant|UL 94-V-0 Flammability Rating
