RM25600-1CR

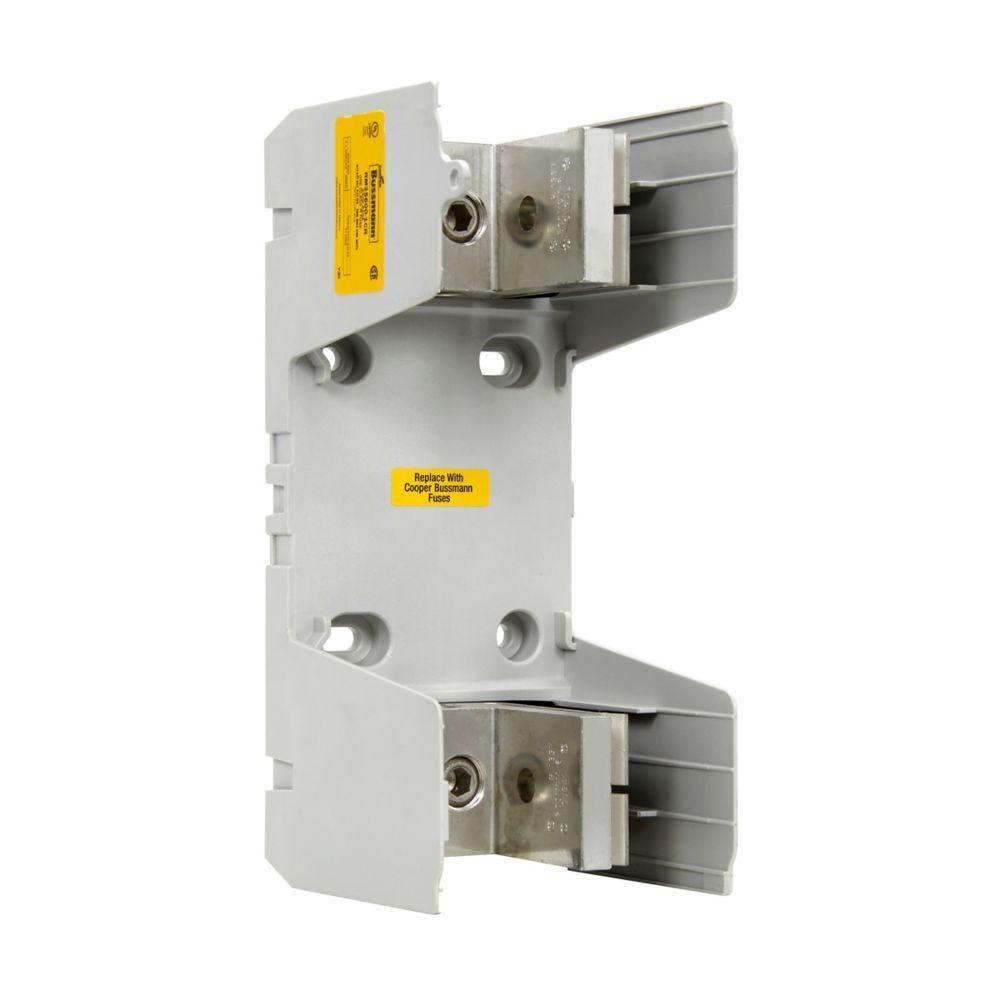

Bussmann RM25600-1CR Modular Fuse Block
Part Number # RM25600-1CR
SKU # 2279196
$3194.79 / 3Each
Typical price:$6496.59 / Each
Bussmann RM25600-1CR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | RM25600-1CR |
| SKU #: | 2279196 |
| Amperage Rating: | 450 to 600, 450 to 600 A, 600 |
| Class: | R |
| Dimensions: | 11.4 in L x 6 in W x 4.9 in H, 4.9 in L x 11.4 in W x 6 in H |
| Number of Poles: | 1 |
| Series: | RM Series |
| Suitable For Use With: | LPN-RK_SP, LPN-RK_SPI, FRN-R, KTN-R Fuse, Low-Peak LPN-RK_SP, LPN-RK_SPI Series Time Delay, Limitron KTN-R Series Fast Acting, Fusetron FRN-R Series Time Delay Fuse, Low-Peak™ LPN-RK_SP, LPN-RK_SPI Series Time Delay, Limitron™ KTN-R Series Fast Acting, Fusetron™ FRN-R Series Time Delay Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Knife Blade Modular, Knife-Blade, Modular |
| Wire Size: | (2) 4 AWG to 500 kcmil, (2) 4 AWG to 500 kcmil Solid |
| Connection type: | Box Lug, Box Lug/Knife Blade End |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | Hole, Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712391030 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3194.79 / 3Each
Typical price:$6496.59 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 450 to 600 A, 1 Pole, Class: R, Box Lug/Knife Blade End, (2) 4 AWG to 500 kcmil Wire, Hole Mount, -40 to 120 deg C, For Use With: Low-Peak LPN-RK_SP, LPN-RK_SPI Series Time Delay, Limitron KTN-R Series Fast Acting, Fusetron FRN-R Series Time Delay Fuse, Thermoplastic, 11.4 in L x 6 in W x 4.9 in H
RM25600-1CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsRM25600-1CR Item Features
- Integral dovetails allow snapping together multiple poles at point-of-use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Standard fuse clip reinforcing springs enhance electrical contact
- https://www.youtube.com/watch?v=YMvqUyoETXk
RM25600-1CR Standards
CSA 47235/622501|cULus E14853 Guide IZLT/IZLT7|RoHS CompliantSKU #2279196Part Number #RM25600-1CRUNSPSC39121629UPC00051712391030
