S505-1-R

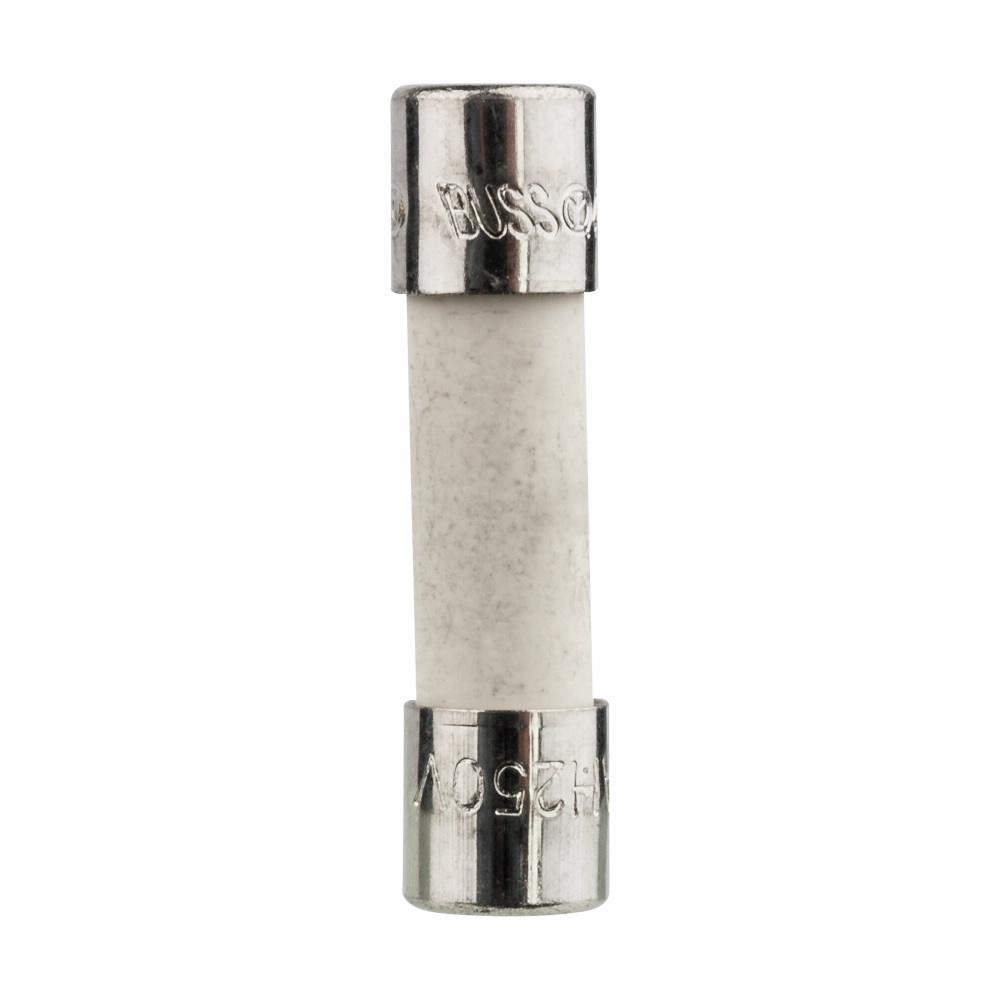

Bussmann S505-1-R Time Delay Fuse
Part Number # S505-1-R
SKU # 2180618
$20.55 / 5Each
Typical price:$41.85 / Each
Bussmann S505-1-R Key Features
Brand: Bussmann
Part Number # S505-1-R
SKU #2180618
Amperage Rating: 1, 1 A
Body Type: Cylindrical
Frequency Rating: 50, 50 Hz
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 1.5, 1.5 kA
Rejection/Non-Rejection: Non-Rejection
Series: S505
Terminal Type: Ferrule
Type: High Breaking
Voltage Rating: 250, 250 VAC
Country of origin: CN
Material: Ceramic
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121607
UPC: 00051712643498
$20.55 / 5Each
Typical price:$41.85 / Each
Bussmann S505-1-R Time Delay Fuse
Brand: Bussmann
Part Number: S505-1-R
Bussmann Time Delay Fuse, High Breaking, Series: S505, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1 A, 250 VAC, 1.5 kA Interrupt, 50 Hz, Ferrule Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 5.2 mm Dia x 20 mm L Body Size
Additional Description: BUSS-S505-1-R (N) S505 1A BUSS FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 1A 250V 5mm x 20mm RoHS Compliant Ceramic, Time Delay Fuse
S505-1-R Application
Electronic Circuit ApplicationsS505-1-R Item Features
- Time delay performance ideal for inductive circuits
- 1.5 kA at 250 VAC interrupt rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
S505-1-R Standards
RoHS Compliant|cURus File No. E19180, Guide JDYX2/JDYX8|CSA File No. 53787|SEMKO File No. 816547, 1119019|VDE File 40014091, 40024352, 40023140|BSI File KM55676|IMQ File CA03 00100, CA03 00529|PSE JET 1641-31003-1009, 1641-31003-1010, 1641-31003-1011, 1641-31003-1012, 1641- 31003-2001, 1641-31003-2002|CCC File 2002010207011295|CQC 11012061930|KC-Mark File SU5011-4012A|SU5011-5004ASKU #2180618Part Number #S505-1-RUNSPSC39121607UPC00051712643498
