Part Number # SC-15
SKU # 2273087
Image provided may only be a representation of
final product and may include optional equipment
SC-15

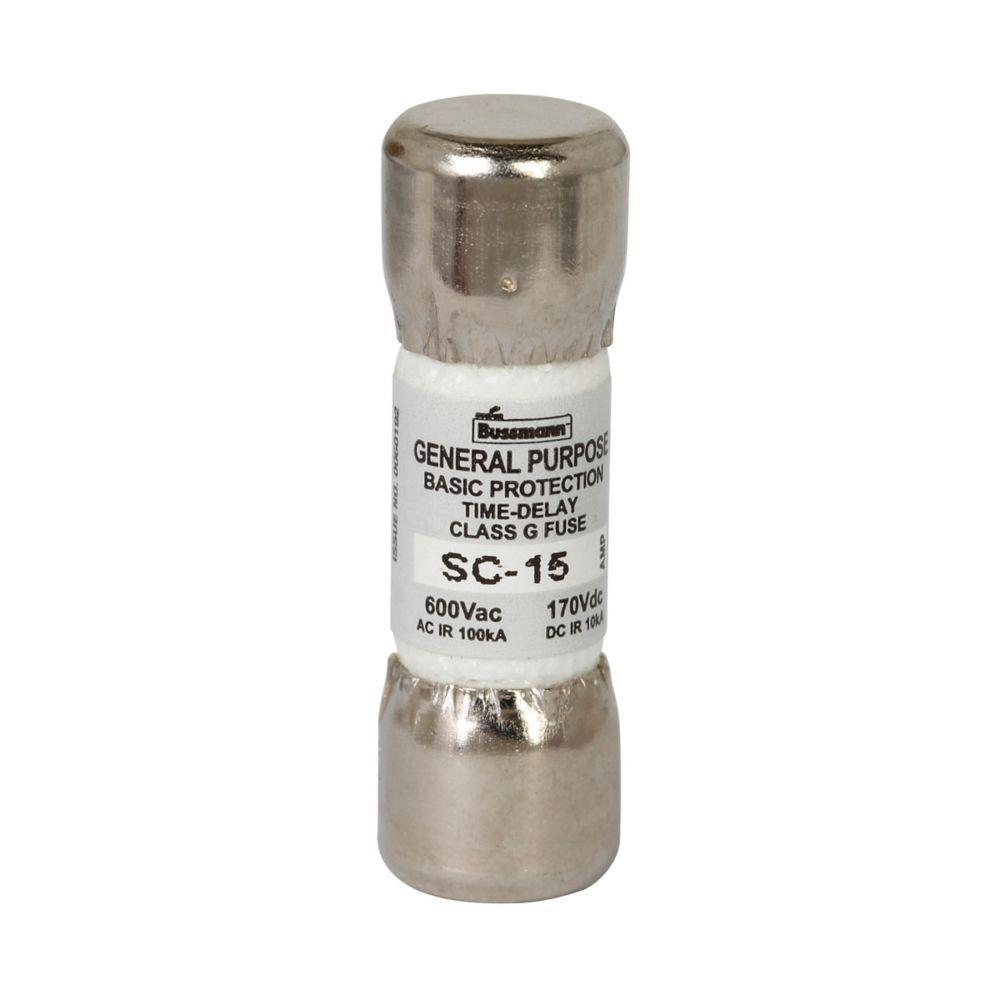

Bussmann SC-15 Time Delay Fuse
Part Number # SC-15
SKU # 2273087
Bussmann SC-15 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | SC-15 |
| SKU #: | 2273087 |
| Amperage Rating: | 15, 15 A |
| Body Type: | Cylindrical |
| Class: | G |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100/10, 100/10 kAIC |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 12, 12 s at 200% |
| Series: | SC Series |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Current Limiting, Current Limiting Time Delay |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121609 |
| UPC: | 00051712250153 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann SC-15 Time Delay Fuse
Brand: Bussmann
Part Number: SC-15
Bussmann Fuse, Current Limiting Time Delay, Series: SC Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 15 A, 600 VAC/170 VDC, 100/10 kAIC Interrupt, Class: G, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 0.41 in Dia x 1.31 in L Body Size
Additional Description: BUSS-SC-15 BUSS SC FUSE CLASS G CLASS G
Catalog Description: Eaton Bussmann Series Class G fuse, SC, fast-acting, current limiting fuse, 15 A, rejection style fuse, interrupting rating of 100 kA at 600 Vac and 10 kA at 170 Vdc
SC-15 Application
Industrial Facilities and Factories, Safety and Security Systems, Fusible Branch Panel Boards and HV Branch Circuit Protection ApplicationsSC-15 Item Features
- https://www.youtube.com/watch?v=YMvqUyoETXk
SC-15 Standards
CE Certified|CSA C22.2 File No.53787/E4273/248.5 Guide JDDZ|NEC Certified|UL 248-5SKU #2273087Part Number #SC-15UNSPSC39121609UPC00051712250153
