Part Number # SC-40
SKU # 2319826
Image Disclaimers Message
SC-40

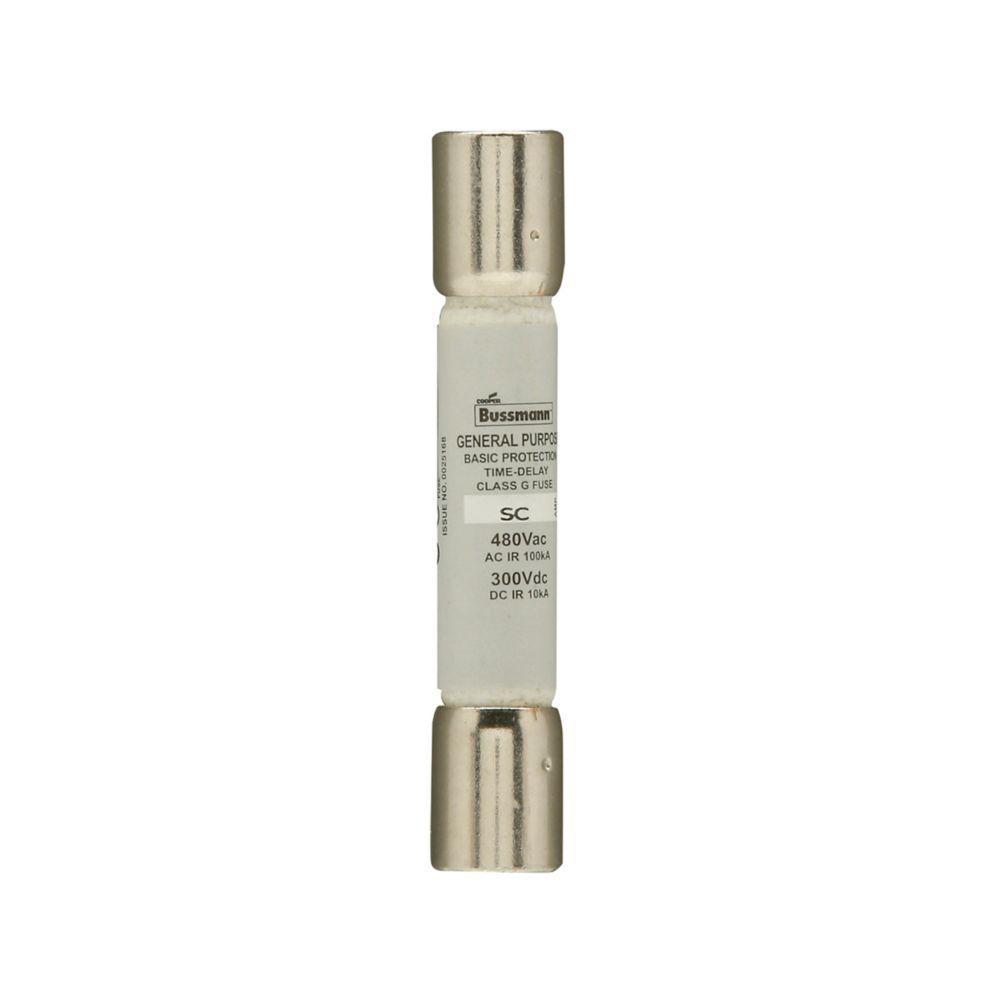

Bussmann SC-40 Time Delay Fuse
Part Number # SC-40
SKU # 2319826
$374.90 / 10Each
Typical price:$694.80 / Each
Bussmann SC-40 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | SC-40 |
| SKU #: | 2319826 |
| Amperage Rating: | 40, 40 A |
| Body Type: | Cylindrical |
| Class: | G |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100/10, 100/10 kAIC |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 12, 12 s at 200% |
| Series: | SC Series |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Current Limiting, Current Limiting Time Delay |
| Country of origin: | MX |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121609 |
| UPC: | 00051712250405 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$374.90 / 10Each
Typical price:$694.80 / Each
Quantity:
- Bussmann Fuse, Current Limiting Time Delay, Series: SC Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 40 A, 480 V AC, 100/10 kAIC Interrupt, Class: G, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 0.41 in Dia x 2.25 in L Body Size
SC-40 Application
Industrial Facilities and Factories, Safety and Security Systems, Fusible Branch Panel Boards, HV Branch Circuit Protection and General Purpose ApplicationsSC-40 Item Features
- Current limiting for component protection, providing class G energy limitation for branch circuit protection
- 100 kA interrupt rating provides cost effective branch circuit fusing
- Variations in length help prevent overfusing
- Most economical overcurrent protection solution compared to circuit breakers
- For use in various non-demanding, general purpose applications
- Compact branch circuit units with high interrupt rating and current limitation
- With up to a 600 VAC rating, they can be used in 120/208 VAC, 120/240 VAC and 277/480 VAC circuits
- Have a degree of overload time delay that permits them to pass temporary overloads
- Basic protection class G size rejecting, current limiting fuses
- https://www.youtube.com/watch?v=YMvqUyoETXk
SC-40 Standards
CE Certified|CSA C22.2 File No.53787/ E4273/248.5 Guide JDDZ|NEC Certified|UL 248-5SKU #2319826Part Number #SC-40UNSPSC39121609UPC00051712250405
