Part Number # T60600-1C
SKU # 2317000
Image Disclaimers Message
T60600-1C

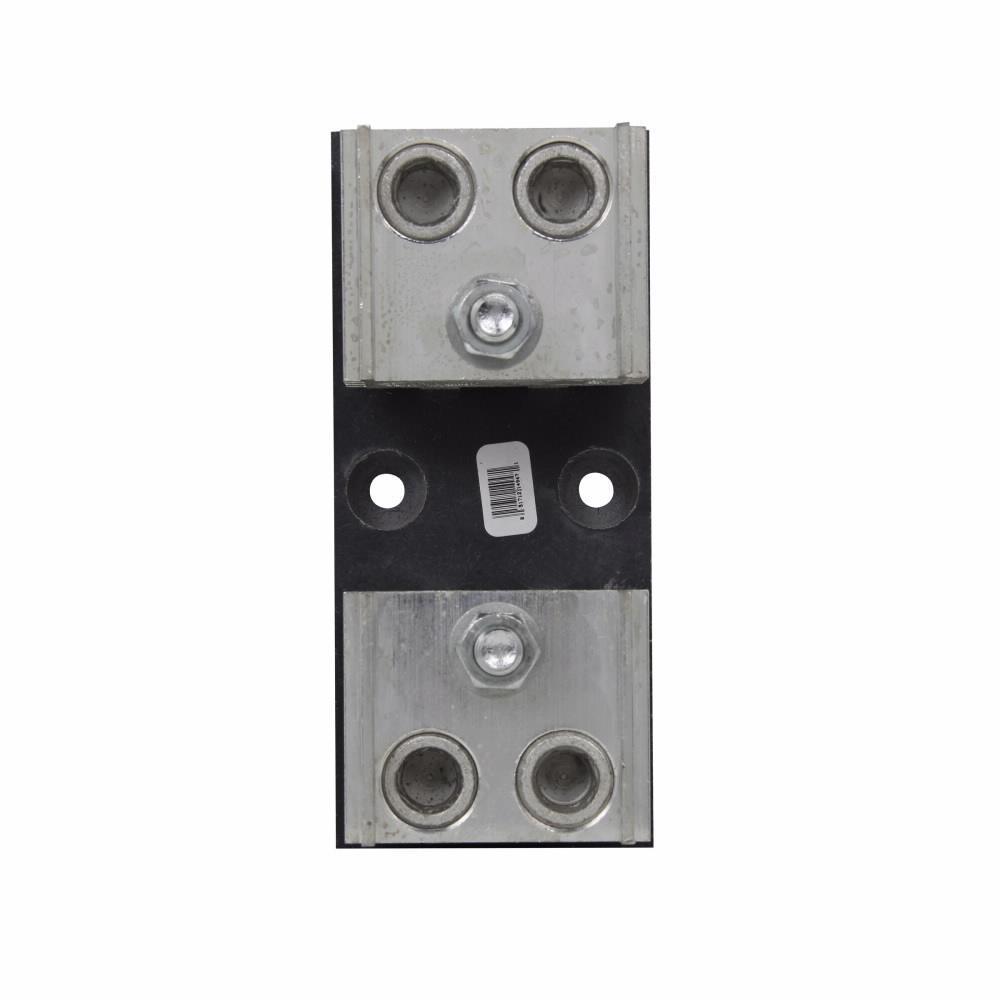

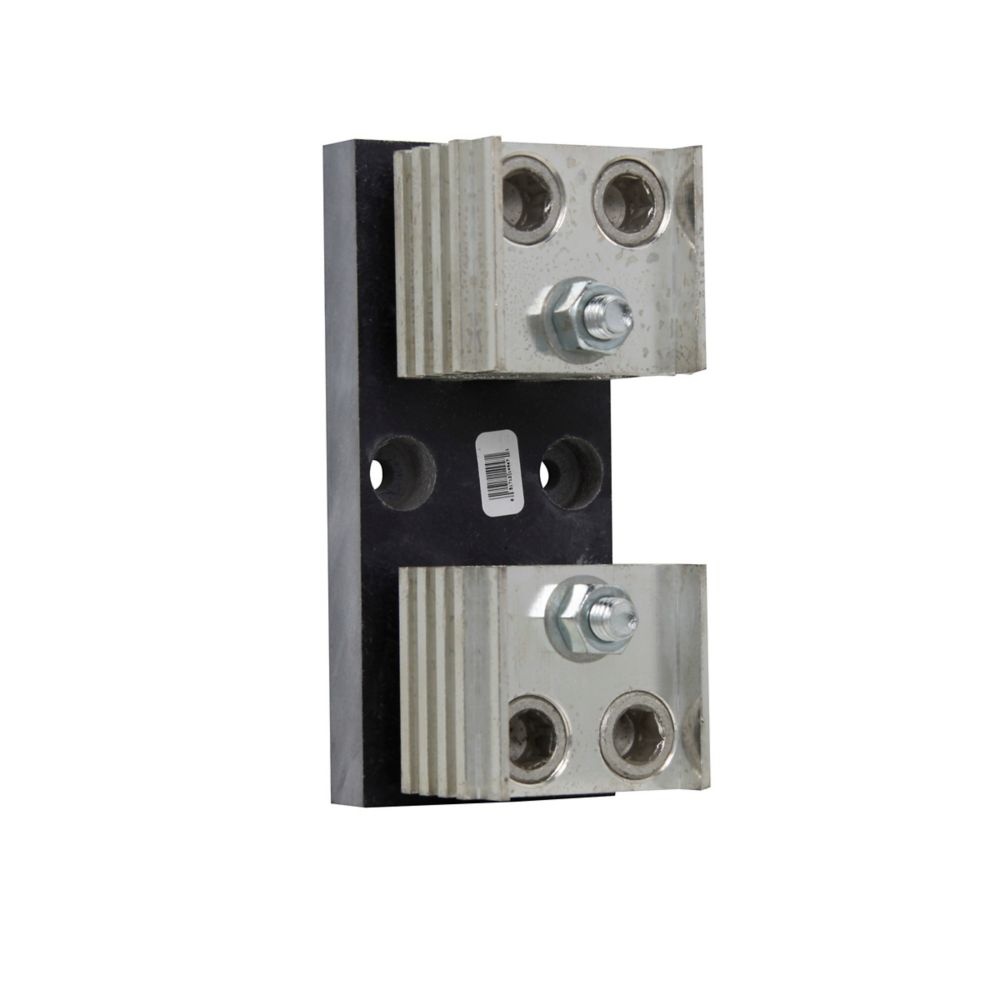

Bussmann T60600-1C T600 Modular Open Fuse Block
Part Number # T60600-1C
SKU # 2317000
$694.37 / Each
Typical price:$1183.07 / Each
Bussmann T60600-1C Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | T60600-1C |
| SKU #: | 2317000 |
| Amperage Rating: | 401 to 600, 401 to 600 A |
| Class: | T |
| Dimensions: | 6.75 in L x 3 in W x 3.44 in H |
| Fuse Diameter: | 1-1/4, 1-1/4 in |
| Fuse Length: | 3.98, 3.98 in |
| Number of Poles: | 1 |
| Series: | T600 |
| Suitable For Use With: | JJS Cartridge Fuse, JJS Class T Fuse, JJS Series Cartridge Fuse |
| Type: | Modular Open, Open, Open Style |
| Wire Size: | 4/0 AWG to 600 kcmil, 600, 600 kcmil |
| Color: | Black |
| Connection type: | Box Lug |
| Country of origin: | MX |
| Material: | Glass Polyester/Phenolic, Phenolic |
| Mounting type: | Chassis |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712149471 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$694.37 / Each
Typical price:$1183.07 / Each
Quantity:
- Edison Fuse Block, Open Style, Series: T600, 600 VAC/VDC, 401 to 600 A, 1 Poles, Class: T, Box Lug, 4/0 AWG to 600 kcmil Wire, Chassis Mount, 3.98 in Fuse Length, 1-1/4 in Fuse Dia, For Use With: JJS Class T Fuse, Glass Polyester/Phenolic, Black, 6.75 in L x 3 in W x 3.44 in H
T60600-1C Specifications
- Short circuit current rating of 200 kA rms symmetrical
- Class T fuse blocks have a small foot print, providing substantial space savings in equipment
- (2) 4/0 AWG to 600 kcmil copper/aluminum wire
T60600-1C Application
For 600 VAC/VDC or less control systems and industrial control circuitsT60600-1C Item Features
- Short circuit current rating of 200 kA rms symmetrical
- Class T fuse blocks have a small foot print, providing substantial space savings in equipment
- (2) 4/0 AWG to 600 kcmil copper/aluminum wire
- https://www.youtube.com/watch?v=YMvqUyoETXk
T60600-1C Standards
Contact Manufacturer ,UL Listed ,CSA Certified,RoHS Compliant,CE MarkedSKU #2317000Part Number #T60600-1CUNSPSC39121624UPC00051712149471
