Part Number # TCF10
SKU # 340365
Image Disclaimers Message
TCF10

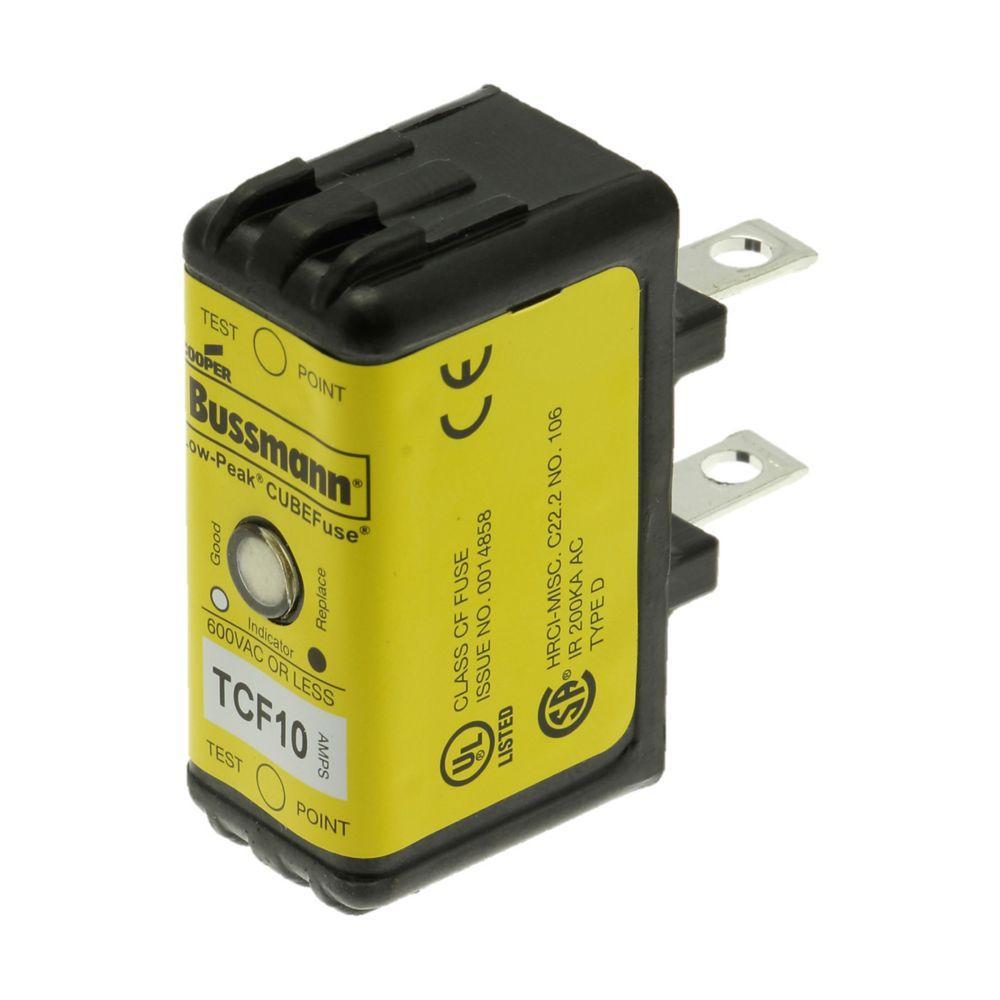

Bussmann TCF10 Time Delay Fuse
Part Number # TCF10
SKU # 340365
$881.64 / 12Each
Typical price:$1502.16 / Each
Bussmann TCF10 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | TCF10 |
| SKU #: | 340365 |
| Amperage Rating: | 10, 10 A |
| Body Type: | Square |
| Class: | CF |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 100/300, 100/300 kA, 300 kA at 600 VAC, 100 kA at 300 VDC, 300/100 |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 10, 10 s at 500% |
| Series: | TCF |
| Terminal Type: | Blade, Radial Blade Plug-In |
| Type: | Current Limiting Inrush Current Withstand, Inrush Current Withstand Time Delay |
| Material: | Glass Filled Polyethersulfone |
| Mounting type: | Chassis/DIN Rail, Chassis/DIN Rail/Plug-In, DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712614986 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$881.64 / 12Each
Typical price:$1502.16 / Each
Quantity:
- Bussmann Low-Peak CUBEFuse Time Delay Fuse, Current Limiting Inrush Current Withstand, Series: TCF, 10 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Body Type, Dual Element, Glass Filled Polyethersulfone, 1.88 in L x 0.75 in W x 1 in H Body Size
TCF10 Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panel Boards, Machinery Disconnects, Industrial Control and Required Finger safe system Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside FactoryTCF10 Item Features
- The worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- The indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- True dual element fuse construction with a minimum of 10 s time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High 300 kA interrupt rating safely interrupts virtually any fault
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Bussmann series Low-Peak class CC, J, L or RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF10 Standards
UL Listed ,CSA Certified,CE Marked,RoHS CompliantSKU #340365Part Number #TCF10UNSPSC39121606UPC00051712614986
