TCF100

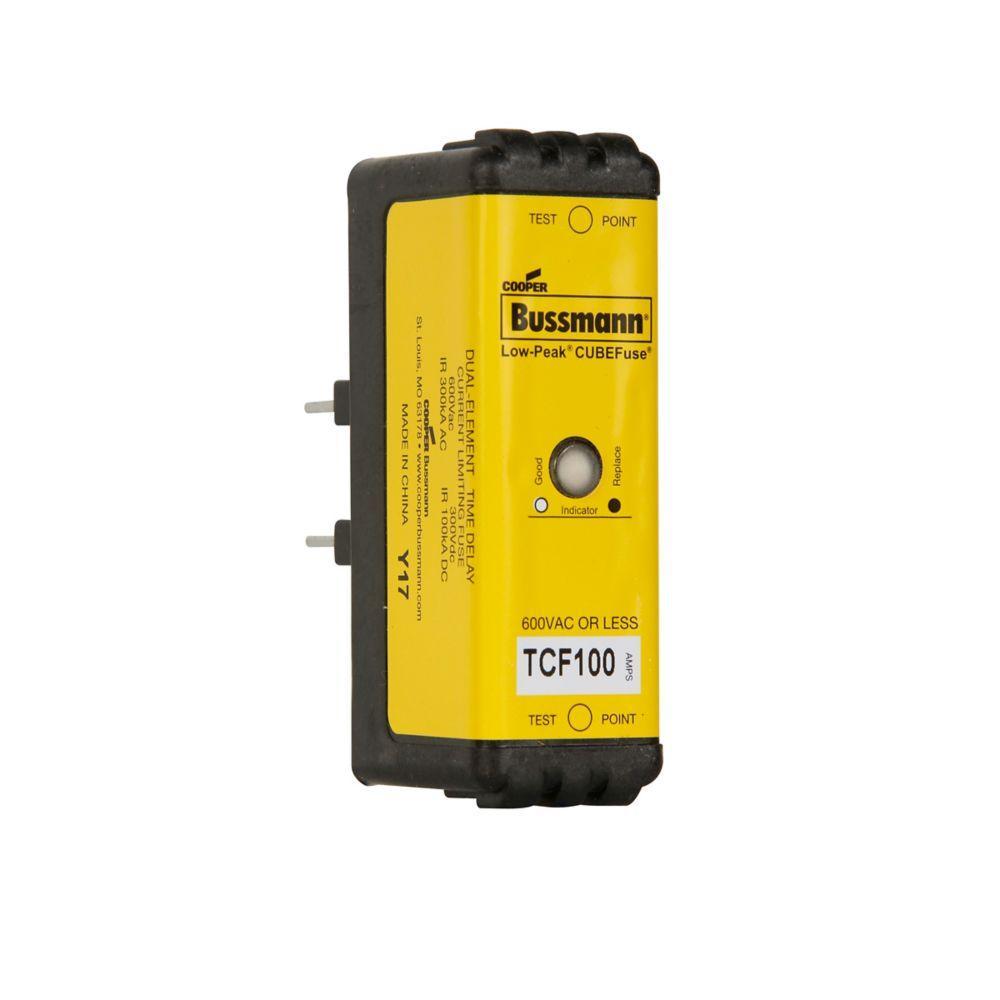

Bussmann TCF100 Low Peak Fuse
Part Number # TCF100
SKU # 1028111
Bussmann TCF100 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | TCF100 |
| SKU #: | 1028111 |
| Amperage Rating: | 100, 100 A |
| Body Type: | Square |
| Class: | CF, Class CF |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 100/300, 300 kA at 600 VAC, 100 kA at 300 VDC, 300/100 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 10, 10 s at 500% |
| Series: | TCF |
| Terminal Type: | Blade End, Radial Blade Plug-In |
| Type: | Indicating Non-Rejection Inrush Current Withstand, Inrush Current Withstand Time Delay |
| Material: | Glass Filled PES, Glass Filled Polyethersulfone, Glass Filled Polyethersulfone Case |
| Mounting type: | Chassis/DIN Rail, Chassis/DIN Rail/Plug-In |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712618182 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann TCF100 Low Peak Fuse
Brand: Bussmann
Part Number: TCF100
Bussmann CUBEFuse Fuse, Indicating Non-Rejection Inrush Current Withstand, Series: TCF, 100 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: CF, 10 S at 500% Response, Blade End Terminal, Chassis/DIN Rail Mount, Square Body Type, Dual Element, Glass Filled Polyethersulfone Case, 3.01 in L x 1 in W x 1.26 in H Body Size
Additional Description: BUSS-TCF100 TIME DELAY CUBEFUSE 100A IND
Catalog Description: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 100 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
TCF100 Application
Electrical Panelboards, Industrial Control, Machinery Disconnects and Required Finger Safe Systems Applications, Industrial Facilities and Factory Facility, Safety and Security Systems, Datacenter - Facilities, Power Distribution and Control, Commercial/Institutional Buildings/Structures - Critical Power, Stationary Machinery and Equipment Outside Factory - HVACTCF100 Item Features
- Worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J/CC/T/ RK
- Meets class CF and class J time delay electrical performance requirements
- Indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let-through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective coordination with any other Bussmann series Low-Peak class CC/J/L/RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses
- 300 kA rms symmetrical (UL) and 300 kA rms symmetrical (CSA) at 600 VAC, 100 kA (UL and CSA) at 300 VDC interrupt rating
- Copper alloy terminals, electroless tin terminal plating, PES (polyethersulfone) indicator lens, energetic chemical indicator
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF100 Standards
CE Certified|CSA Class 1422- 02 File No. 53787|RoHS Compliant|UL File No. E4273 Guide JFHRSKU #1028111Part Number #TCF100UNSPSC39121606UPC00051712618182
