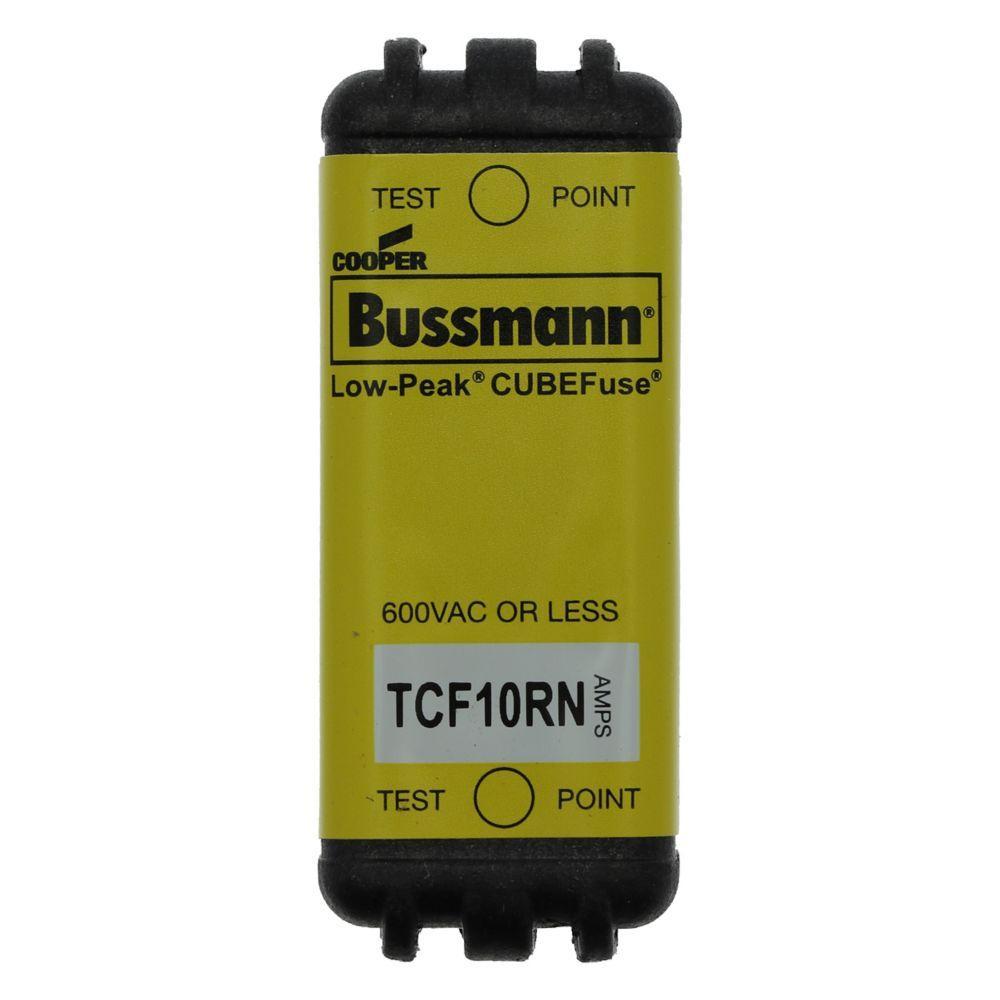

Bussmann TCF10RN Time Delay Fuse
Part Number # TCF10RN
SKU # 2229561
$745.20 / 12Each
Typical price:$1269.72 / Each
Bussmann TCF10RN Key Features
Brand: Bussmann
Part Number # TCF10RN
SKU #2229561
Amperage Rating: 0.416, 10, 10 A
Body Type: Square, Square Blade
Class: CF, Class CF
Frequency Rating: 50/60 Hz
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 100/300, 100/300 kA, 300 kA at 600 VAC, 100 kA at 300 VDC
Rejection/Non-Rejection: Non-Rejection
Response Time: 10, 10 s at 500%
Series: TCF
Terminal Type: Blade, Radial Blade Plug-In
Type: Inrush Current Withstand Time Delay, Non-Indicating
Voltage Rating: 600 VAC, 300 VDC, 600 VAC/300 VDC
Color: Black
Material: Glass Filled PES, Glass Filled Polyethersulfone
Mounting type: Chassis/DIN Rail, Chassis/DIN Rail/Plug-In
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712220675
$745.20 / 12Each
Typical price:$1269.72 / Each
- Bussmann CUBEFuse Time Delay Fuse, Non-Indicating, Series: TCF, 10 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, 50/60 Hz, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, Black, 1.88 in L x 0.75 in W x 1 in H Body Size
TCF10RN Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panelboards, Industrial Control, Machinery Disconnects and Required Finger safe systems, Safety and Security Systems, Stationary Machinery and Equipment Outside FactoryTCF10RN Item Features
- Worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- Meets class CF and class J time delay electrical performance requirements
- Indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Cooper Bussmann Low-Peak class CC, L, J and RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
- 300 kA rms symmetrical at 600 VAC, 100 kA at 300 VDC interrupt rating
- Copper alloy terminals, electroless tin terminal plating, energetic chemical indicator
- 10 s at 500% response time
