Bussmann TCF20 Low-Peak Fuse
Part Number # TCF20
SKU # 340352
Bussmann TCF20 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | TCF20 |
| SKU #: | 340352 |
| Body Type: | Square Blade |
| Class: | CF |
| Interrupt Rating: | 100/300 kA |
| Response Time: | 10 s at 500% |
| Series: | TCF |
| Type: | Indicating Non-Rejection |
| Material: | Glass Filled Polyethersulfone |
| Mounting type: | Chassis/DIN Rail |
| UNSPSC: | 39121606 |
| UPC: | 00051712615013 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann TCF20 Low-Peak Fuse
Brand: Bussmann
Part Number: TCF20

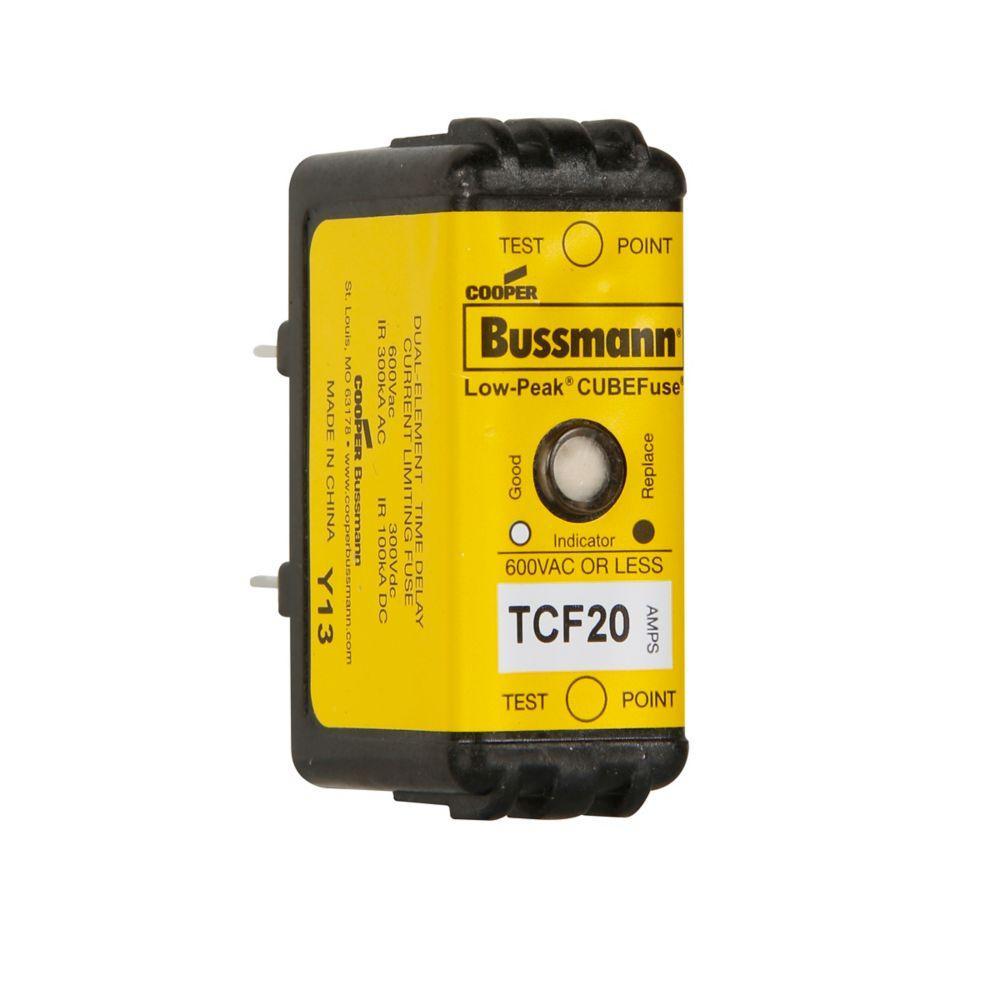

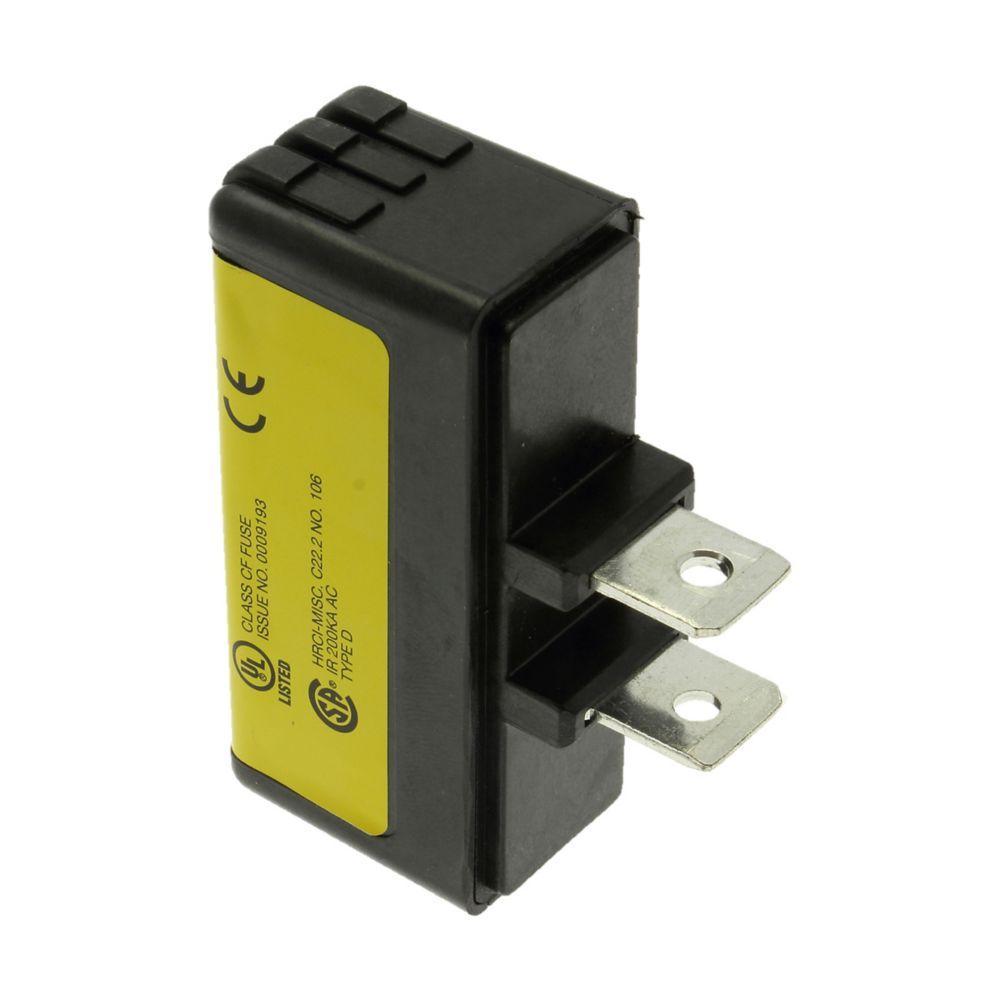

Bussmann CUBEFuse Time Delay Fuse, Indicating Non-Rejection, Series: TCF, 20 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, 50/60 Hz, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, Black, 1.88 in L x 0.75 in W x 1 in H Body Size
Additional Description: BUSS-TCF20 TIME DELAY CUBEFUSE 20A IND
Catalog Description: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 20 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
TCF20 Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panelboards, Industrial Control, Machinery Disconnects and Required Finger safe systems, Safety and Security Systems, Stationary Machinery and Equipment Outside FactoryTCF20 Item Features
- Worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- Meets class CF and class J time delay electrical performance requirements
- Indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Cooper Bussmann Low-Peak class CC, L, J and RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
- 300 kA rms symmetrical at 600 VAC, 100 kA at 300 VDC interrupt rating
- Copper alloy terminals, electroless tin terminal plating, PES (polyethersulfone) indicator lens, energetic chemical indicator
- 10 s at 500% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF20 Standards
CE Certified|CSA 1422- 02|RoHS Compliant|UL File No. 53787|UL File No. E4273|UL Guide JFHRSKU #340352Part Number #TCF20UNSPSC39121606UPC00051712615013
