Part Number # TCF225RN
SKU # 2399008
TCF225RN

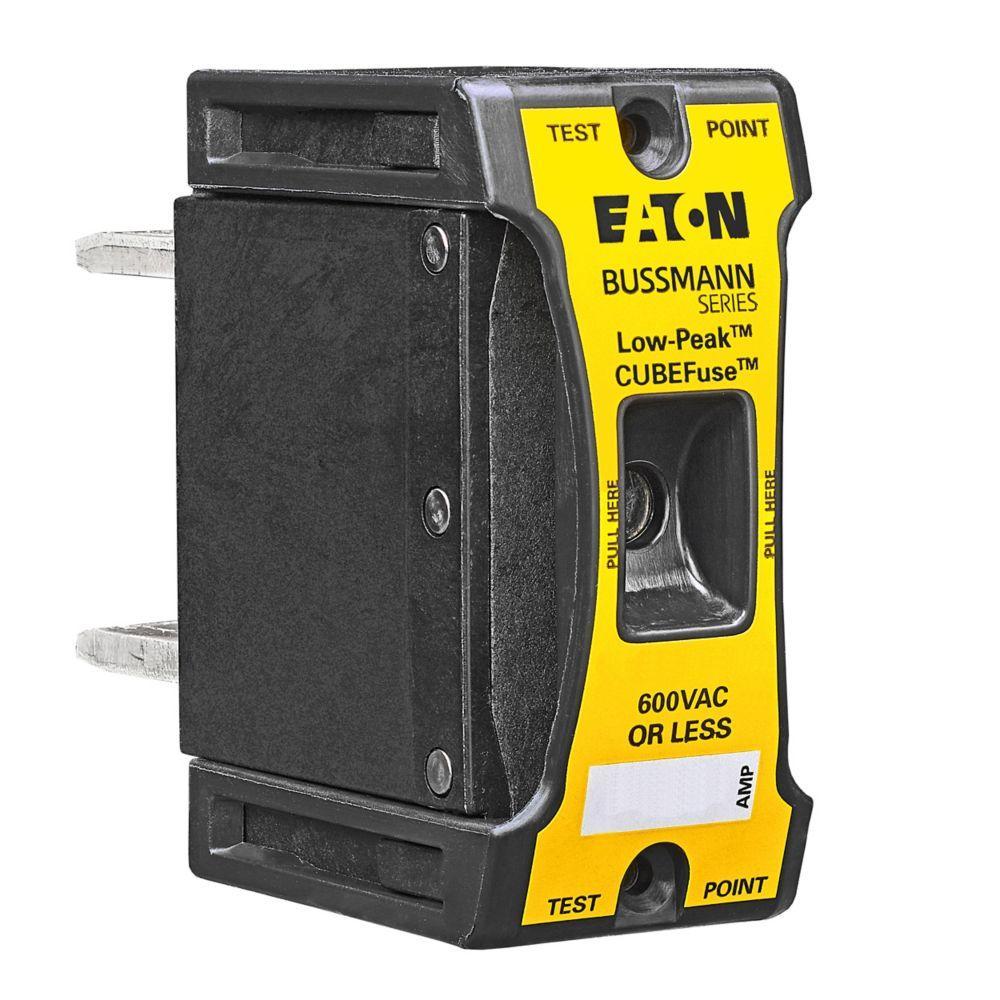

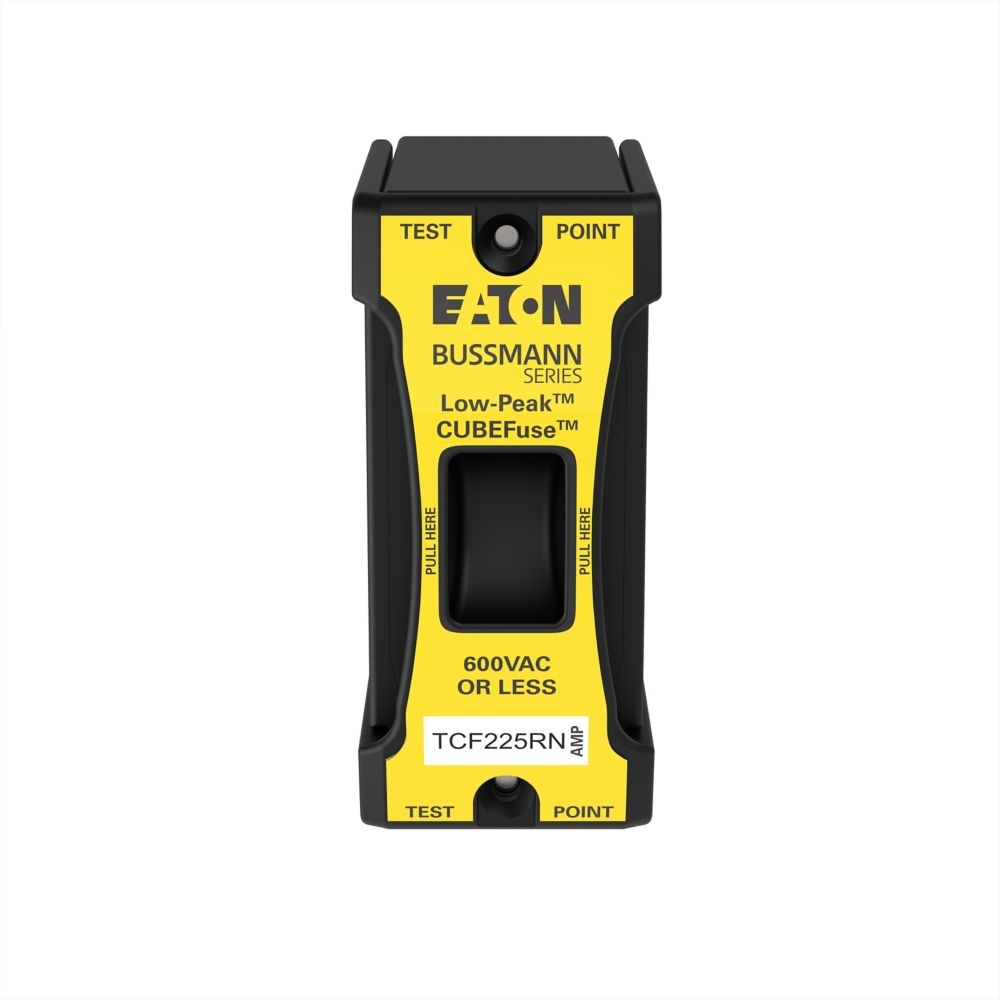

Bussmann TCF225RN Cube Fuse
Part Number # TCF225RN
SKU # 2399008
Bussmann TCF225RN Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | TCF225RN |
| SKU #: | 2399008 |
| Amperage Rating: | 225 A |
| Body Type: | Square |
| Class: | CF |
| Interrupt Rating: | 200 kA AC/100 kA DC |
| Response Time: | 10 s |
| Series: | TCF |
| Terminal Type: | Radial Blade Plug-In |
| Type: | Non-Indicating Time Delay |
| Country of origin: | MX |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712697965 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann TCF225RN Cube Fuse
Brand: Bussmann
Part Number: TCF225RN
Bussmann Cube Fuse, Non-Indicating Time Delay, Series: TCF, 225 A, 600 VAC, 300 VDC, 200 kA AC/100 kA DC Interrupt, Class: CF, 10 s Response, Radial Blade Plug-In Terminal, Holder Mounting, Square Body, Dual Element, 3.62 in H x 2.9 in W x 1.34 in D Body
Additional Description: BUSS-TCF225RN TIME DELAY CUBEFUSE 225A NON-IND
Catalog Description: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 225 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 200 kA at 600 Vac
TCF225RN Application
Electrical Panelboards, Machinery Disconnects, Finger Safe Systems, Industrial Control and Panel ApplicationsTCF225RN Item Features
- The worlds first finger safe industrial fuse system
- Smallest installed footprint of any UL Class CC, J, or R fuse solution
- UL Class CF with Class J time delay electrical performance
- The indicating version features local easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults reduces destructive thermal and magnetic forces
- True dual-element fuse construction with a minimum of 10 sec time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- Up to 300 kA interrupting rating safely interrupts virtually any fault
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides TYPE 2 no damage protection for IEC motors starters when properly sized
- Easy selective coordination with any other Bussmann series Low-Peak Class CC, J, L or RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses
- 200 kA RMS symmetrical for UL, 100 kA DC for UL/CSA interrupting
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF225RN Standards
Not Applicable,RoHS CompliantSKU #2399008Part Number #TCF225RNUNSPSC39121606UPC00051712697965
