Part Number # TCF30
SKU # 340354

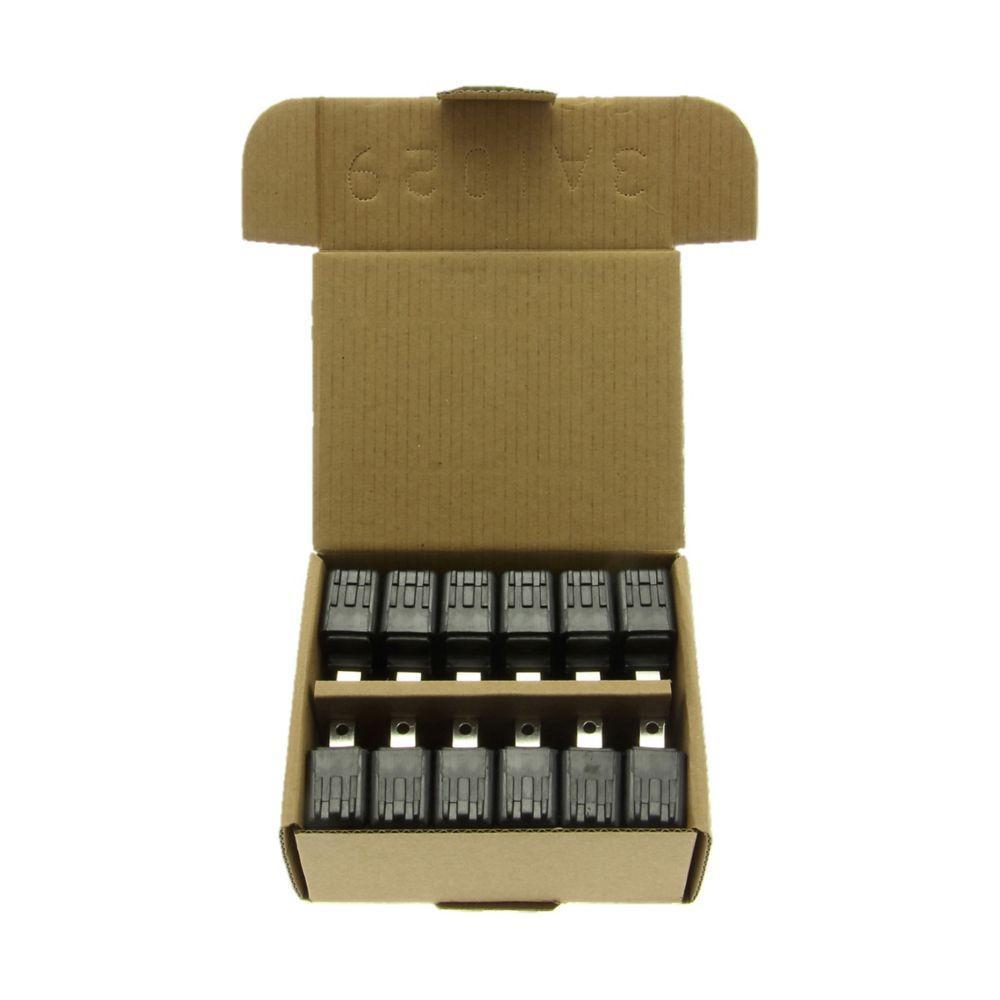

Image provided may only be a representation of
final product and may include optional equipment
TCF30
Bussmann TCF30 Low Peak Fuse
Part Number # TCF30
SKU # 340354
Bussmann TCF30 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | TCF30 |
| SKU #: | 340354 |
| Amperage Rating: | 30, 30 A |
| Body Type: | Square, Square Blade |
| Class: | CF, Class CF |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 100/300, 100/300 kA, 300 kA at 600 VAC, 100 kA at 300 VDC |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 10, 10 s, 10 s at 500% |
| Series: | TCF |
| Terminal Type: | Radial Blade Plug-In |
| Type: | Indicating Non-Rejection, Inrush Current Withstand Time Delay |
| Material: | Glass Filled PES, Glass Filled Polyethersulfone |
| Mounting type: | Chassis/DIN Rail, Chassis/DIN Rail/Plug-In |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712615037 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann TCF30 Low Peak Fuse
Brand: Bussmann
Part Number: TCF30
Bussmann CUBEFuse Time Delay Fuse, Indicating Non-Rejection, Series: TCF, 30 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, 10 s Response, Radial Blade Plug-In Terminal, Chassis/DIN Rail Mount, Body Type: Square Blade, Dual Element, Glass Filled PES, 1.88 in L x 0.75 in W x 1 in H Body Size
Additional Description: BUSS-TCF30 30A CUBEFUSE FUSE (55
Catalog Description: Eaton Bussmann series TCF fuse, Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 30 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
TCF30 Application
Electrical Panelboards, Industrial Control, Machinery Disconnects and Required Finger Safe SystemsTCF30 Item Features
- Worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- Meets class CF and class J time delay electrical performance requirements
- Indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupting rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 no damage in protection for IEC motors starters when properly sized
- Easy selective coordination with any other Cooper Bussmann low peak class CC, L, J and RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
- -40 to 80 deg C operating temperature
- 300 kA RMS symmetrical (UL) and 300 kA RMS symmetrical (CSA) at 600 VAC, 100 kA (UL and CSA) at 300 VDC interrupt rating
- Copper alloy terminals, electroless tin terminal plating, PES (polyethersulfone) indicator lens, energetic chemical indicator
- 10 sec at 500% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF30 Standards
CE Certified|UL Guide JFHR|UL File No. E4273|CSA Class 1422- 02, File No. 53787SKU #340354Part Number #TCF30UNSPSC39121606UPC00051712615037
