TCF30RN

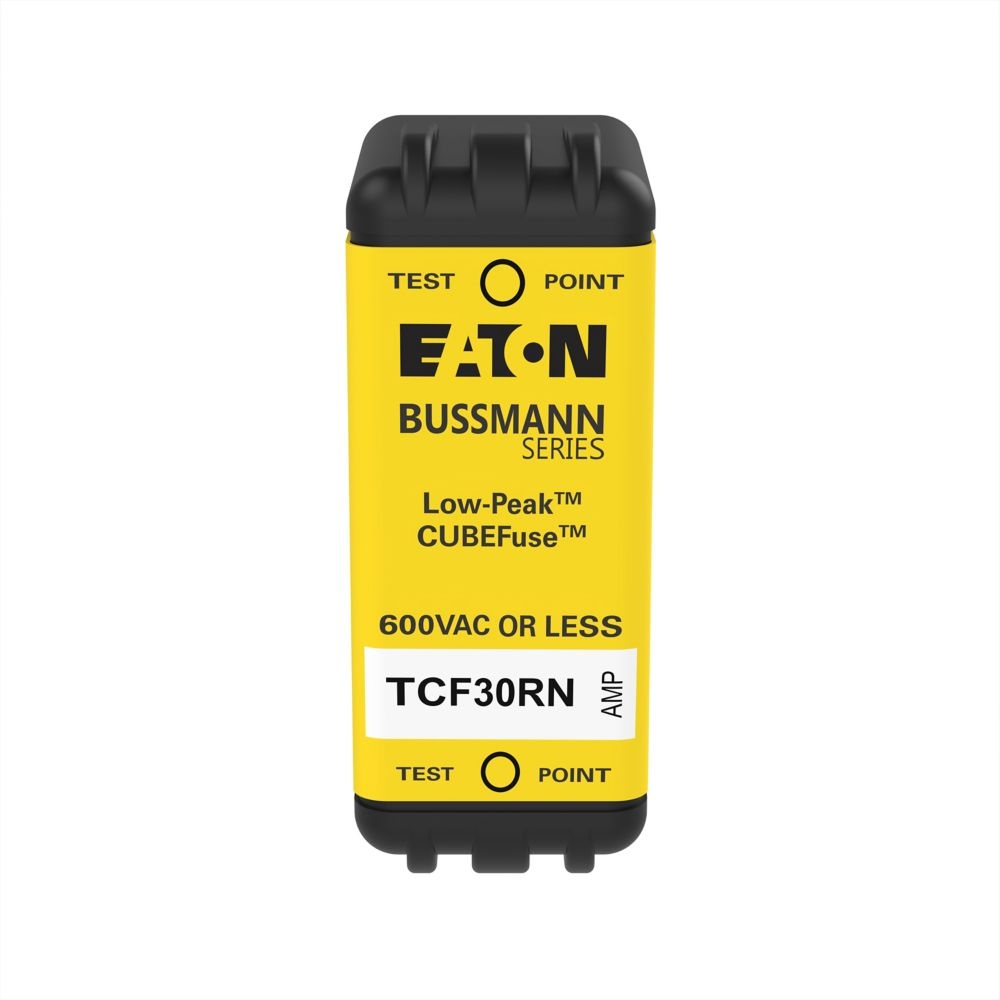

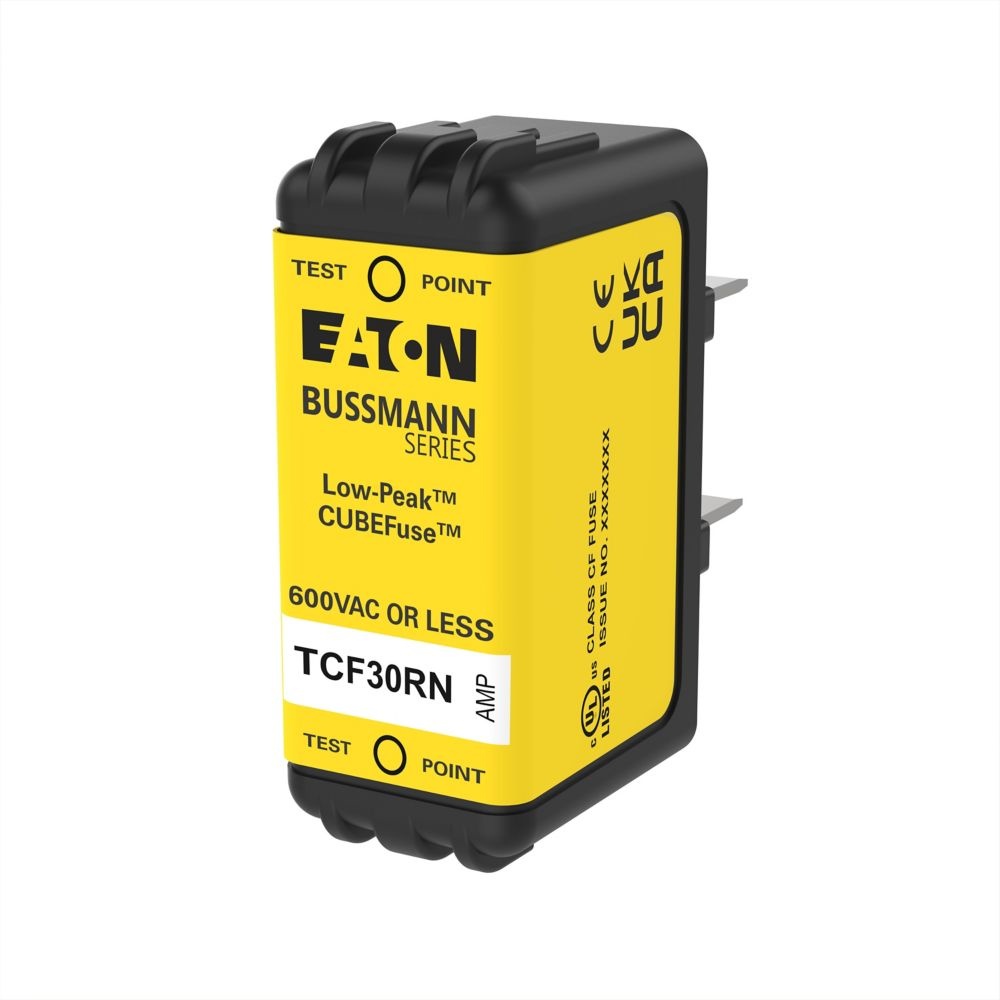

Bussmann TCF30RN Time Delay Fuse
Part Number # TCF30RN
SKU # 2179263
$780.36 / 12Each
Typical price:$1329.60 / Each
Bussmann TCF30RN Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | TCF30RN |
| SKU #: | 2179263 |
| Amperage Rating: | 30, 30 A |
| Body Type: | Square, Square Blade |
| Class: | CF, Class CF |
| Frequency Rating: | 50/60 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100/300, 100/300 kA, 300 kA at 600 VAC, 100 kA at 300 VDC |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 10, 10 s at 500% |
| Series: | TCF |
| Terminal Type: | Blade, Radial Blade Plug-In |
| Type: | Inrush Current Withstand Time Delay, Non-Indicating |
| Color: | Black |
| Material: | Glass Filled PES, Glass Filled Polyethersulfone |
| Mounting type: | Chassis/DIN Rail, Chassis/DIN Rail/Plug-In |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712220965 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$780.36 / 12Each
Typical price:$1329.60 / Each
Quantity:
- Bussmann CUBEFuse Time Delay Fuse, Non-Indicating, Series: TCF, 30 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, 50/60 Hz, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, Black, 0.81 in Dia x 2 in L Body Size
TCF30RN Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panelboards, Industrial Control, Machinery Disconnects and Required Finger safe systems, Safety and Security Systems, Stationary Machinery and Equipment Outside FactoryTCF30RN Item Features
- Worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- Meets class CF and class J time delay electrical performance requirements
- Indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Cooper Bussmann Low-Peak class CC, L, J and RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
- 300 kA rms symmetrical at 600 VAC, 100 kA at 300 VDC interrupt rating
- Copper alloy terminals, electroless tin terminal plating, energetic chemical indicator
- 10 s at 500% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF30RN Standards
CSA Certified ,UL Listed,CE Marked,RoHS CompliantSKU #2179263Part Number #TCF30RNUNSPSC39121606UPC00051712220965
